Description
The Gentec-EO Photo Detector family includes nine photo detectors sensors.
The PH100-Si, PH100Si-HA detectors use a silicon photodiode. The PH100-SiUV, PH10B-Si, PE10B-Si, PE3B-Si detectors also use a silicon photodiode but have enhanced sensitivity at shorter wavelengths. The PH20-Ge, PH5B-Ge, PE5B-Ge detectors use a germanium photodiode. The PE3B-In detectors use a InGaAs photodiode.

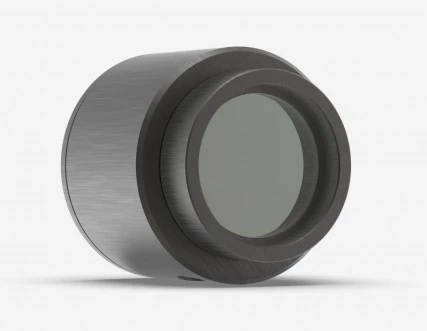

Gentec-EO Photodiode Detector PH100-SIUV-OD.3-D0
Specifications
| Diode Type: | Si |
|---|---|
| Wavelength Of Operation: | 400 nm |
Download Data Sheet
Features
All detector heads are 27.4mm thick by 38.1 mm in diameter.
The PH and PE series are supplied with a 180 cm long flexible cable terminated with a DB-15
\"intelligent\" male connector, for use with Gentec-EO Monitors.
Applications
Laser power detection
Laser optics
Spectroscopy
Metrology
Frequently Asked Questions
What are the physical characteristics of the detector head?
The detector head is 27.4mm thick by 38.1 mm in diameter and has an aperture diameter of 10 mm.
What is the calibration uncertainty of the PH100-SIUV-OD.3-D0?
The calibration uncertainty of the PH100-SIUV-OD.3-D0 is ±5.0 % (210 - 1049 nm) and ±7.0 % (1050 - 1080 nm) with attenuator.
What is the Gentec-EO Photodiode Detector PH100-SIUV-OD.3-D0 used for?
The Gentec-EO Photodiode Detector PH100-SIUV-OD.3-D0 is used for laser power detection, laser optics, spectroscopy, and metrology.
What is the maximum average power that the PH100-SIUV-OD.3-D0 can measure?
The PH100-SIUV-OD.3-D0 can measure laser power up to 11 mW.
What is the noise equivalent power of the PH100-SIUV-OD.3-D0?
The noise equivalent power of the PH100-SIUV-OD.3-D0 is 20 pW at 850 nm.
