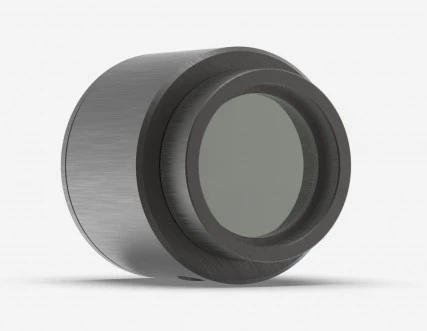

PH100-SiUV-OD1-D0 Photodiode Laser Power Detector 38 mW
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Description
The PH100-SiUV-OD1-D0 Photodiode Laser Power Detector by Gentec-EO is a sophisticated tool designed for precise laser power measurement. This device is engineered to handle power levels up to 38 mW, making it an ideal choice for applications requiring high accuracy and reliability. With its advanced design, the PH100-SiUV-OD1-D0 ensures accurate readings across a wide spectral range, from 400 to 1080 nm.
One of the standout features of this photodiode detector is its large aperture, measuring 10 mm in diameter, which accommodates a variety of laser beams. The detector's silicon-UV sensor is optimized for wavelengths between 210 and 1080 nm, providing versatility for different laser types. The device's compact dimensions, 38.1 mm in diameter and 36 mm in depth, coupled with a lightweight design of just 0.14 kg, make it easy to integrate into various setups without adding significant bulk.
This laser power detector model is equipped with a smart interface that stores all calibration data, ensuring that users can rely on its precision. The device offers wavelength selection in 1 nm steps, allowing for meticulous calibration tailored to specific needs. Additionally, the photodiode detector supports a range of compatible displays and PC interfaces, including MAESTRO, TUNER, UNO, and various P-LINK options, enhancing its adaptability and ease of use in different environments.
Designed with durability in mind, the PH100-SiUV-OD1-D0 laser power detector can withstand a maximum average power density of 100 W/cm². Its robust construction ensures that it can handle demanding conditions while maintaining high performance. With a typical rise time of 0.2 seconds and a peak sensitivity of 0.45 A/W at 850 nm, this photodiode detector is a reliable choice for professionals seeking precision and efficiency in laser power measurement.
PH100-SiUV-OD1-D0 Photodiode Laser Power Detector 38 mW
Specifications |
|
|---|---|
| Diode Type: | Si |
| Wavelength Of Operation: | 400 nm |
| Maximum Average Power: | 38 mW |
| Noise Equivalent Power: | 100 pW |
| Spectral Range: | 400 - 1080 nm |
| Typical Rise Time: | 0.2 sec |
| Power Calibration Uncertainty: | ±5.0 % (400 - 1049 nm), ±7.0 % (1050 - 1080 nm) |
| Peak Sensitivity: | 0.45 A/W @ 850 nm |
| Maximum Average Power Density: | 100 W/cm² |
| Aperture Diameter: | 10 mm |
| Absorber: | SiUV |
| Dimensions: | 38.1Ø x 36D mm |
| Weight: | 0.14 kg |
| Distance To Sensor Face: | 13.7 mm |
Features
All detector heads are 27.4mm thick by 38.1 mm in diameter.
The PH and PE series are supplied with a 180 cm long flexible cable terminated with a DB-15
"intelligent" male connector, for use with Gentec-EO Monitors.
Applications
- Laser power detection in academic and industrial settings
- Spectroscopy
- Metrology
Frequently Asked Questions
The detector head is 27.4mm thick by 38.1 mm in diameter, and it is supplied with a 180 cm long flexible cable terminated with a DB-15"intelligent" male connector for use with Gentec-EO Monitors.
The aperture diameter is 10 mm, the absorber is SiUV, and the dimensions are 38.1Ø x 36D mm. The weight is 0.14 kg, and the distance to the sensor face is 13.7 mm.
The Gentec-EO Photodiode Detector PH100-SIUV-OD1-D0 is used for laser power detection, laser optics, spectroscopy, and metrology.
The maximum average power is 38 mW.
The noise equivalent power is 100 pW at 850 nm.
