Description
The PH100-SI-HA-OD2-D0 is a high-quality photodiode detector designed for laser power measurement up to 750 mW. It offers accurate and reliable power measurement capabilities with a large aperture of 10 mm Ø for the silicon sensors. With three different versions available, including Silicon 350-1080 nm (up to 750 mW), Silicon-UV 210-1080 nm (up to 38 mW), and Germanium 800-1650 nm (up to 500 mW), it provides flexibility for various laser applications.
The detector features a smart interface that contains all the calibration data for easy and precise measurements. It also offers a choice of attenuators with transmission options of OD0.3 (50% transmission), OD1 (10% transmission), and OD2 (1% transmission). The PH100-SI-HA-OD2-D0 is compatible with various displays and PC interfaces, making it a versatile and reliable tool for laser power measurement.

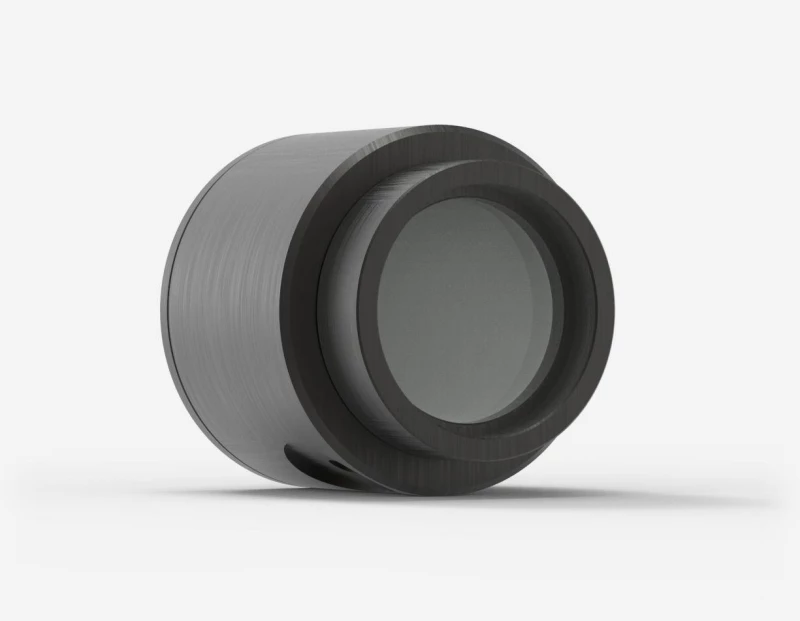

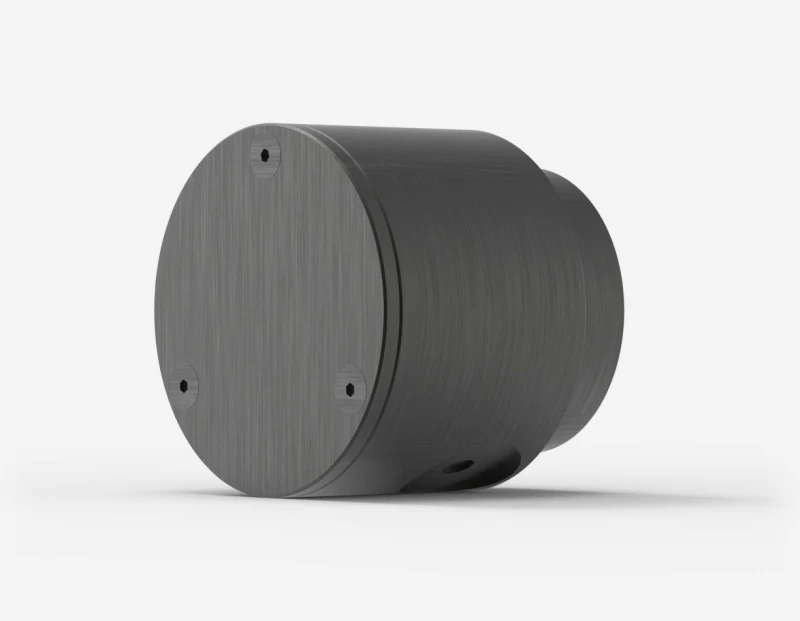

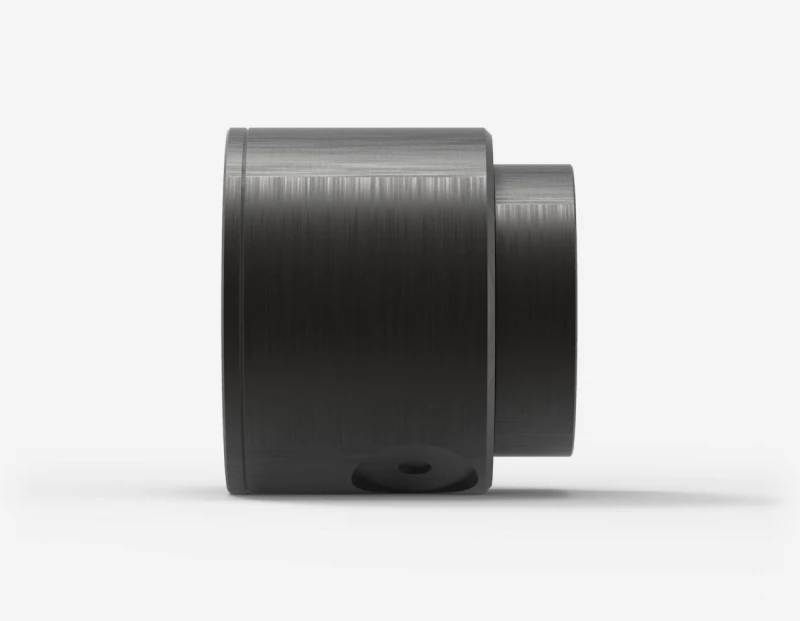

PH100-SI-HA-OD2-D0 Photodiode Laser Power Detector
Specifications
| Diode Type: | Si |
|---|---|
| Wavelength Of Operation: | 630 nm |
| Maximum Average Power: | 750 mW |
| Noise Equivalent Power: | 2 nW |
| Typical Rise Time: | 0.2 s |
| Peak Sensitivity: | 980 nm |
| Maximum Average Power Density: | 100 W/cm² |
| Aperture Diameter: | 10 mm |
| Dimensions: | 38.1Ø x 36D mm |
| Weight: | 0.14 kg |
| Distance To Sensor Face: | 13.7 mm |
Download Data Sheet
Features
- Large apertures: 10 mm Ø for the silicon sensors
- Three versions available: Silicon 350-1080 nm (up to 750 mW), Silicon-UV 210-1080 nm (up to 38
- mW), Germanium 800-1650 nm (up to 500 mW)
- Choice of attenuators: OD0.3 (50% transmission), OD1 (10% transmission), OD2 (1% transmission)
- High accuracy with low calibration uncertainty
- Precise calibration with wavelength selection in 1 nm steps
- Smart interface containing all the calibration data
- Compatible with various displays and PC interfaces
Applications
- Laser power measurement up to 750 mW
- Research and development
- Laser manufacturing
- Medical and aesthetic laser applications
- Laser-based material processing
Frequently Asked Questions
What are the applications of the Gentec-EO Photodiode Detector PH100-SI-HA-OD2-D0?
What are the features of the Gentec-EO Photodiode Detector PH100-SI-HA-OD2-D0?
What is the accuracy of the Gentec-EO Photodiode Detector PH100-SI-HA-OD2-D0?
What is the Gentec-EO Photodiode Detector PH100-SI-HA-OD2-D0?
What is the maximum average power density of the Gentec-EO Photodiode Detector PH100-SI-HA-OD2-D0?
