Description
DataRay Innovation: The company that brought you the first Windows‐based CCD beam profiler, the first Camera for confined spaces, the first software slider exposure and electronic auto‐shutter, the first standard window‐free CCD for no fringing, the first auto‐orientation on the ellipse & the first USB 2.0 beam profiling camera … has done it again now with our new USB 3.0 compact 1” format cameras.
Product Description: DataRay WinCamD-LCM CMOS Laser Beam Profiler provides USB 3.0 transfer rates and a high-resolution 1-in. detector for applications ranging from OEM integration to R&D. This laser beam profiler, usable from 190 to 1605 nm, provides 5.5-µm pixels in a 2048 × 2048 active area with an update rate of up to 60 Hz and an optical/TTL (transistor-transistor logic) trigger. A CMOS detector eliminates comet tailing, and the global shutter and trigger enable pulse capture. The USB 3.0 interface comes paired with proprietary customizable software. Applications of this laser beam profiler include CW and pulsed laser profiling, field servicing of laser systems, optical assembly, instrument alignment, beam wander and logging, quality control, and M² measurement with available 200 mm translation stage.

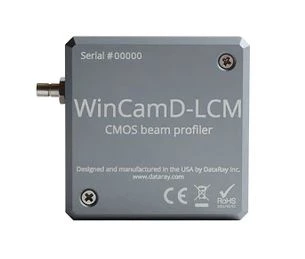

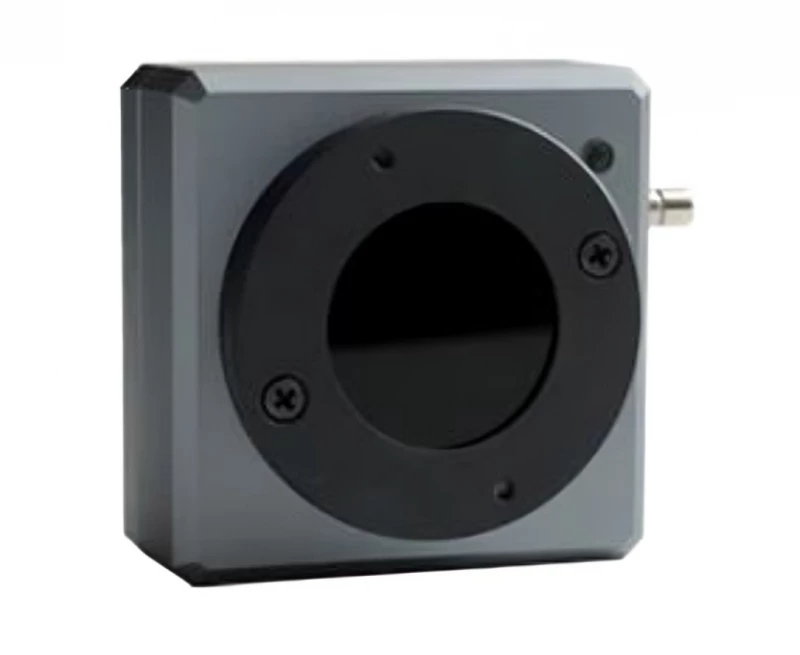

WinCamD-LCM - CMOS Based Beam Profiler
Specifications
| Sensor Type: | CMOS |
|---|---|
| Measurable Sources: | CW, Pulsed |
| Wavelength Range: | 355 – 1150 nm |
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 2048 |
| Pixel Size (Width): | 5.5 um |
| Pixel Size (Height): | 5.5 um |
| Max Full Frame Rate: | 60 Hz |
| ADC: | 12-bit |
| TEL Model λ: | 1480 to 1605 nm |
| UV Model λ: | 190 to 1150 nm |
| 1310 Model λ: | 355 to 1350 nm |
| Part Number (1310 Model): | S-WCD-LCM-1310 |
| Part Number (VIS Model): | S-WCD-LCM |
| Part Number (TEL Model): | S-WCD-LCM-TEL |
| Part Number (UV Model): | S-WCD-LCM-UV |
Download Data Sheet
Features
- Digital serial link for EMI immunity
- XY beam profiles and centroids
- Linear and logarithmic displays
- Gaussian and Top Hat least squares fits
- Ellipse Angle, Major, Minor, Mean Diameters
- Background capture and subtraction
- Image & Intensity Zoom
- Linear and area filters
- Image Averaging, 1 to continuous
- Compact design 0.65” Probe style for tight applications
- NEW WinCamD‐LCM 1” CMOS array with 5.5 µm2, 1, 2, & 4 MPixel Formats available
- Synchronous Shutter = No Comet Tailing
- Update Rate to 50 Hz with new SuperSpeed USB 3.0 interface (LCM series is USB 3.0 all others USB 2.0)
- New stackable MagND Filters (LCM series only)
- Port‐powered, flexible 3 m cable, no external power supply required.
- WinCamD‐LCM Compact 1.8 x 1.8 “ x 0.8” (20 mm) fits tight beam trains
- HyperCal™ Dynamic Noise and Baseline Correction software (Pat. Pending)
- CTE™ Comet Tail Elimination for λ> 900 nm (CCD based cameras), (Pat. Pending)
- Digital CCD/CMOS cameras with on‐chip 12/14/16‐bit ADC (camera dependent)
- 4 MB image buffer & on‐board microprocessor
- Window‐free sensors standard for no fringing
- 25,000:1 electronic auto‐shutter, 40 s to 1000 ms
- 1,000:1 SNR (30/60 dB Optical/Electrical)
- Pulsed laser auto‐trigger & synchronization
- Isolated Pulse Triggering and Parallel capture on multiple cameras
- Field‐replaceable image sensors
- Large area TaperCamD options to 20 x 15 mm (p.7)
- X‐Ray, UV, 1310 nm (p.8), 1475‐1680 nm (p.10) & 2‐16 µm
- Windows 8, 7, Vista and XP, 32 and 64 bit. PC or Mac‐Intel using Parallels or BootCamp
Applications
WinCamD-LCM model is used in various laser optics applications, such as:
- CW and pulsed laser beam profiling
- Field service of lasers and laser-based systems
- Optical assembly & instrument alignment
- Beam wander & logging
- M² measurement with available M2DU stage
Frequently Asked Questions
What is the resolution of the DataRay WinCamD-LCM CMOS Laser Beam Profiler?
The DataRay WinCamD-LCM CMOS Laser Beam Profiler provides 5.5-µm pixels in a 2048 × 2048 active area.
What is the update rate of the DataRay WinCamD-LCM CMOS Laser Beam Profiler?
The DataRay WinCamD-LCM CMOS Laser Beam Profiler has an update rate of up to 60 Hz.
What is the range of wavelengths that the DataRay WinCamD-LCM CMOS Laser Beam Profiler can be used for?
The DataRay WinCamD-LCM CMOS Laser Beam Profiler can be used for wavelengths ranging from 190 to 1605 nm.
What are some applications of the DataRay WinCamD-LCM CMOS Laser Beam Profiler?
Some applications of the DataRay WinCamD-LCM CMOS Laser Beam Profiler include CW and pulsed laser profiling, field servicing of laser systems, optical assembly, instrument alignment, beam wander and logging, quality control, and M² measurement.
What type of interface does the DataRay WinCamD-LCM CMOS Laser Beam Profiler have?
The DataRay WinCamD-LCM CMOS Laser Beam Profiler has a USB 3.0 interface paired with proprietary customizable software.
