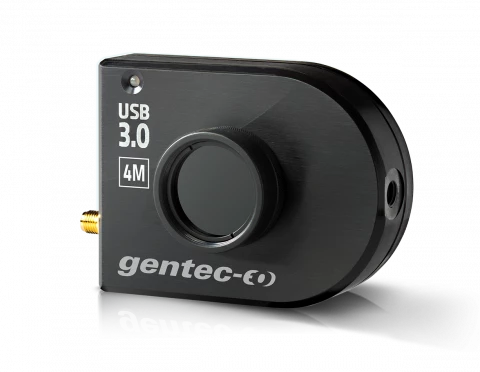

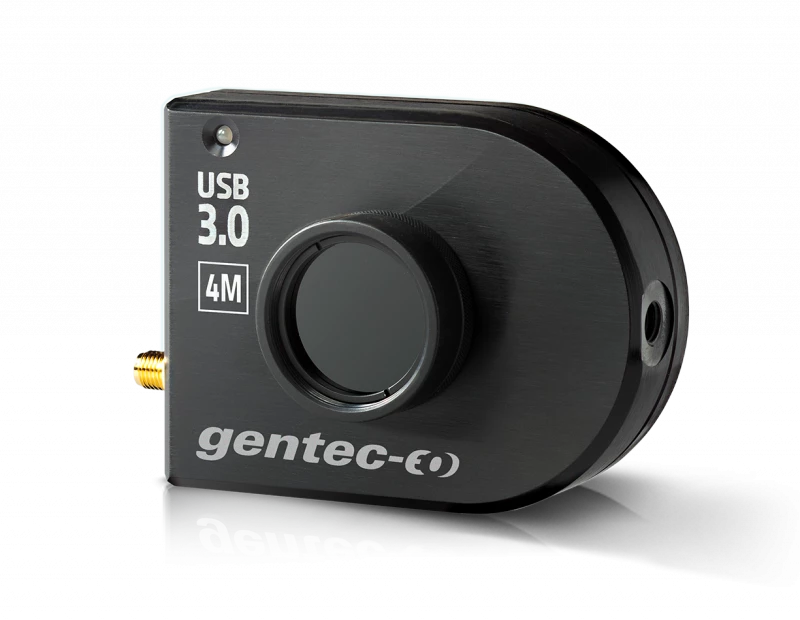

Thumbnail of BEAMAGE-4M-IR Beam Profiling Camera for IR Wavelengths photo 1

Description

The BEAMAGE-4M-IR is an advanced beam profiling camera designed for infrared (IR) wavelengths ranging from 1495 to 1595 nm. It features a high-resolution 4.2 MPixel CMOS sensor with a phosphor coating, ensuring accurate measurements for a wide spectral range.

This beam profiling camera is ISO-compliant, providing precise and reliable beam characterization. With a minimum measurable beam size of 70 μm, it is ideal for applications demanding high-resolution beam profiling. Its global shutter type and fast frame rate of 6.2 fps at 4.2 MPixels ensure accurate measurements of dynamic laser beams.

BEAMAGE-4M-IR Beam Profiling Camera for IR Wavelengths

Visit the Gentec-EO Store

Specifications

Sensor Type: CMOS
Measurable Sources: CW, Pulsed
Wavelength Range: 1495 – 1595 nm
# Pixels (Width): 2048
# Pixels (Height): 2048
Pixel Size (Width): 5.5 um
Pixel Size (Height): 5.5 um
Max Full Frame Rate: 6.2 Hz
ADC: 10-bit, 12-bit
Minimum Measurable Beam: 70 μm
Pixel Count: 4.2 MPixels
Shutter Type: Global
Beam Diameter Definitions: D4σ (ISO compliant) 1/e2 along crosshairs (13.5%) FWHM along crosshairs (50%) Custom (%)
ADC Level: 12 bit (default) / 10 bit (option)
RMS Noise: 1000:1 (60 dB)
Maximum Power Density: 10 W/cm²
Maximum Energy Density: 100 mJ/cm²
Maximum Power: 1 W
Dimensions: 61H x 81.1W x 19.7D mm
Weight: 0.14 kg
Included Filter: ND4
Active Area: 11.3 x11.3 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Spectral Range: Covers wavelengths from 1495 to 1595 nm
  • High-Resolution Sensor: Equipped with a 4.2 MPixel CMOS sensor
  • Phosphor Coating: Ensures accurate measurements in the IR spectrum
  • ISO-Compliant: Provides ISO-compliant measurements for beam characterization
  • Minimum Measurable Beam: Measures beams with a minimum size of 70 μm
  • Global Shutter: Offers precise measurements of dynamic laser beams
  • Fast Frame Rate: Operates at a frame rate of 6.2 fps at 4.2 MPixels
  • High-Resolution Beam Profiling: Ideal for applications demanding detailed beam profiling

Applications

  • Suitable for laser beam analysis in the IR spectrum
  • Ideal for research, industrial, and scientific laser systems
  • Accurate characterization of laser beam profiles for quality control and research purposes

Frequently Asked Questions

What is the BEAMAGE-4M-IR CMOS Profiling Camera used for?
The BEAMAGE-4M-IR CMOS Profiling Camera is used for laser beam measurement and characterization.
What is the resolution of the BEAMAGE-4M-IR CMOS Profiling Camera?
The BEAMAGE-4M-IR CMOS Profiling Camera has a resolution of 4.2 MPixels.
What is the effective aperture of the BEAMAGE-4M-IR CMOS Profiling Camera?
The effective aperture of the BEAMAGE-4M-IR CMOS Profiling Camera is 11.3 x 11.3 mm.
Is the BEAMAGE-4M-IR CMOS Profiling Camera ISO compliant?
Yes, the BEAMAGE-4M-IR CMOS Profiling Camera is ISO 11146:2004 and 11146:2005 compliant.
Does the BEAMAGE-4M-IR CMOS Profiling Camera come with any accessories?
Yes, the BEAMAGE-4M-IR CMOS Profiling Camera comes with stackable ND filters, a Pelican carrying case, UV converters & IR adaptors, UV and IR filters, BDA-S-10-UV/IR beam splitters and attenuators, and a stand with Delrin post.

Got more questions? Use the inquiry form to ask the supplier directly.
