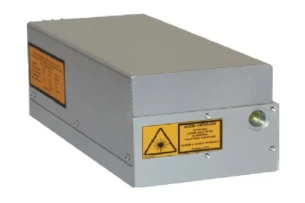

Wedge XF 1064nm: 1064nm Picosecond Laser
Description
Wedge XF sub-nanosecond (300ps), DPSS laser produces up to 70uJ of pulse energy at 1064nm, with operation from single shot to 100 kHz, in a compact, air-cooled OEM solution. Second, Third and Fourth Harmonics (532, 355 and 266nm output) and wavelength conversion option (1.5um) widen the suitable applications range for the Wedge.
Based on a proprietary fast active Q-Switching technology, these sealed DPSS lasers are insensitive to vibrations and harsh environments. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses and high peak powers, with relatively low heat generation, allows for efficient ablation and non-linear interaction in materials used for OEM applications such as micro-machining and specialty marking of glass, metals, polymers and other hard and soft materials, as well as scientific applications, including LIBs, spectroscopy and medical diagnostics.
Wedge is a flexible platform for realizing custom solutions such as meeting specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications. High power amplifiers can be added to standard oscillators in order to increase performance and meet the demands of a variety of industrial and aerospace applications.
Several Wedge based MOPA lasers are currently employed as “optical engines” in high-demanding field applications. Performance, flexibility, industry proven reliability and overall low total cost of ownership makes the Wedge Series an ideal solution for many industrial, defense and scientific applications.
Wedge XF 1064nm: 1064nm Picosecond Laser
Specifications |
|
|---|---|
| Avg. Power: | 1.5 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 10 – 100 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 0.4 ns |
| Pulse-to-Pulse Stability (RMS): | 5 % |
| Cooling: | Air |
| Pulse Energy: | Up to 70 µJ @ 10 kHz |
| Polarization: | Linear 100:1 |
| Beam Diameter (1/e²): | < 2.5 mm |
| Beam Quality (M²): | < 1.3 |
| Power Supply: | 24 V DC, < 7 A (Optional AC/DC 100-230 VAC) |
| Control Input: | TTL for pulse frequency, 0 to 10 V (analog) for energy control |
| Mechanical Dimensions: | 18 x 9 x 7 cm³ |
| Weight: | < 2 kg |
Features
- Pulse Energy: Up to 70 µJ at 10 kHz for high power and precision
- Pulse Width: Adjustable from 400 ps to 1500 ps, offering flexibility for various applications
- Low Jitter Option: < 300 ps for improved performance in direct Q-switch driving
- Beam Quality (M²): < 1.3, ensuring optimal beam focus and precision
- Polarization: Linear, 100:1 for consistent performance
- Compact Design: Small size of 18 x 9 x 7 cm³ and weight under 2 kg for easy integration
Applications
- Ablation / Micromachining of Thin Films: High precision for processing thin materials
- LIDAR / LADAR / LIBS: Ideal for advanced measurement techniques in remote sensing and spectroscopy
- Specialty Scribing / Material Processing: Precision cutting and scribing for various materials
- Red Aiming Beam: Useful for alignment and targeting in precision applications
- Beam Expanding and Collimating Optics: Enhances beam quality for specialized tasks
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Wedge-XF-1064 laser produces a wavelength of 1064nm.
The Wedge-XF-1064 laser produces up to 70uJ of pulse energy.
The Wedge-XF-1064 laser has a pulse width range of 400ps to 1.5ns.
Yes, the Wedge-XF-1064 laser is insensitive to vibrations and harsh environments.
Yes, the Wedge-XF-1064 laser is a flexible platform for realizing custom solutions such as meeting specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications.
