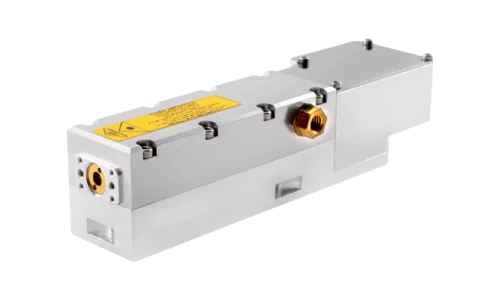

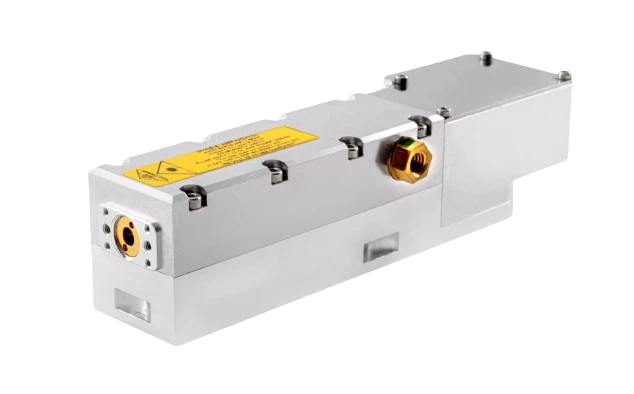

SNG-40F-100 SNG High Performances Green Microchip Laser

Name: SNG-40F-100 SNG High Performances Green Microchip Laser
Brand: Teem Photonics
Availability: InStock

Description

For generating high peak power green pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. The 532nm pulses are produced by harmonic conversion from the IR systems, the same compact sealed package being used for either wavelength.

Microchips are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while conserving constant performances.

The SNG series are designed for high average power, delivering multi-kW peak power at repetition rates up to 70kHz.

Specifications

Avg. Power:	0.052 W
Wavelength:	532 nm
Repetition Rate:	35 – 35 kHz
Spatial Mode (M^2):	1.3
Pulse Duration:	0.75 ns
Pulse-to-Pulse Stability (RMS):	1 %
Cooling:	Air
Beam Profile:	Gaussian TEM00
Beam Ellipticity:	<1.3
Polarization:	Linear, PER>20dB
Output Energy:	>1.5uJ
Peak Power:	>2kW

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Repetition rate up to 70 kHz
Ultrashort pulses down to 500 ps
Multi-kW peak power
Excellent beam quality – TEM00, M²<1.1
Efficient, air-cooled
Sealed package, extremely long life

Applications

Material Processing
- Cost effective marking solutions
- Graphitization
Instrumentation
- Ranging
- Differential absorption LIDAR
- Super-continuum generation
- Distributed temperature sensing
- Raman spectroscopy
Biophotonics
- Nanosurgery
- Protein cross-linking

Name

Work Email

Organization (recommended)

Your message to supplier

Ships from:

France

Sold by:

Teem Photonics ✓ Verified Supplier

On FindLight:

since 2019

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the SNG-40F-100 SNG High Performances Green Microchip Laser used for?

The SNG-40F-100 SNG High Performances Green Microchip Laser is used for generating high peak power green pulses of a few hundred picoseconds.

What is the repetition rate of the SNG series?

The SNG series has a repetition rate of up to 70 kHz.

What is the peak power of the SNG series?

The SNG series delivers multi-kW peak power.

What is the beam quality of the SNG series?

The SNG series has excellent beam quality with TEM00 and M²<1.1.

Is the SNG series easy to operate and service?

Yes, the SNG series is easy to operate and service. Controllers can be used with every laser head model and swapped within minutes while conserving constant performances.
