Description
The TRLi DPSS lasers are compact and high energy, with numerous models and resonator designs available to suit a vast range of applications.
Pulse energies from 100mJ up to 360mJ
Pulse repetition rates up to 300Hz

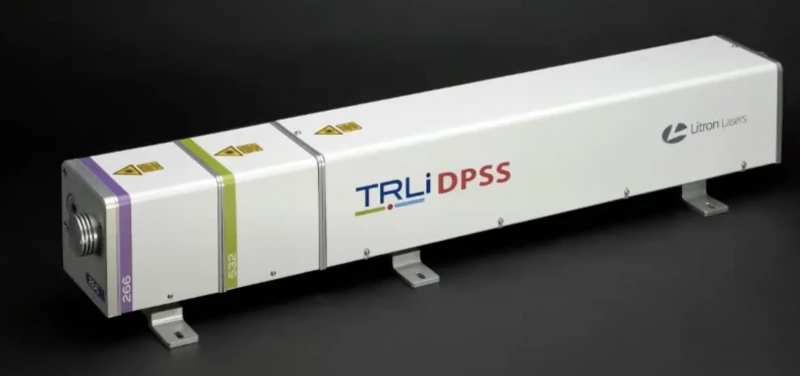

Litron TRLi 170-100 DPSS Solid State Laser
Specifications
| Avg. Power: | 17 W |
|---|---|
| Wavelength: | 1064 nm |
| Repetition Rate: | 1 – 300 kHz |
| Spatial Mode (M^2): | 5 |
| Pulse Duration: | 10 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Water-to-Air |
Applications
- LIBS
- LIDAR
- Laser Lift Off
- Pumping
Frequently Asked Questions
What is the modular design of the laser head?
The modular design of the laser head allows a wide variety of resonator configurations and options to be offered, from single rod oscillators to fully birefringence compensating twin-rod oscillator, twin-rod-amplifier systems.
