Description
The LD-527-PIV series are diode pumped, dual cavity, Nd:YLF laser systems ideally suited to imaging applications such as PIV and to pump applications. Output energies of up to 30mJ, 527nm per cavity at 1kHz are available. The lasers are built around a rugged self supporting invar rail that bestows excellent mechanical and optical stability. This, coupled with the proprietary resonator design, leads to excellent output beams that are spatially and temporally extremely smooth and stable, giving rise to light sheets that offer almost identical shot to shot illumination.

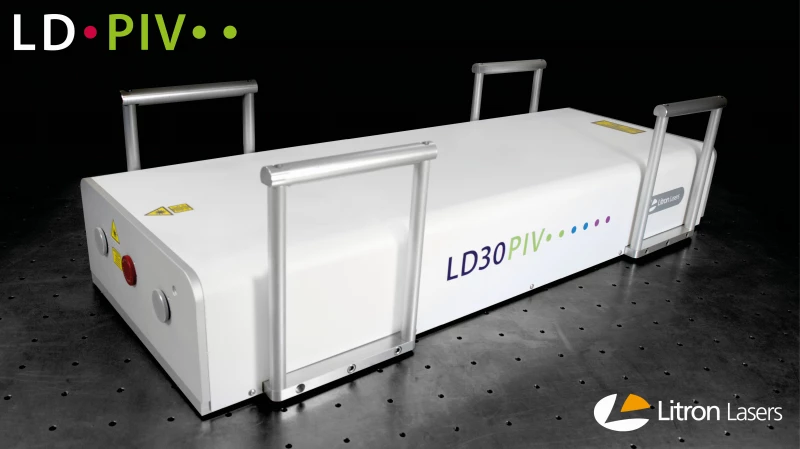

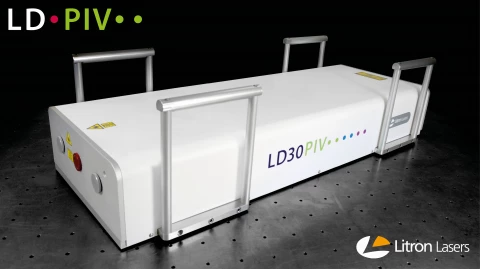

LD30-527-PIV DPSS Laser
Specifications
| Avg. Power: | 30 W |
|---|---|
| Wavelength: | 527 nm |
| Repetition Rate: | 0.2 – 20 kHz |
| Spatial Mode (M^2): | 12 |
| Pulse Duration: | 120 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Water-to-Air |
Download Data Sheet
Features
High Energy at 527nm
Twin motorised attenuators for simple balancing of pulse energies
Rugged industrial design
Field replaceable pump module
Dual cavity system
0-10kHz continuously variable
Applications
PIV
Particle Sizing
Ti:S Pumping
Frequently Asked Questions
What is the design of the LD-527-PIV series laser?
How can the LD-527-PIV series laser be controlled?
What is the LD-527-PIV series laser used for?
What is the output energy of the LD-527-PIV series laser?
What is the weight of the LD-527-PIV series laser?
