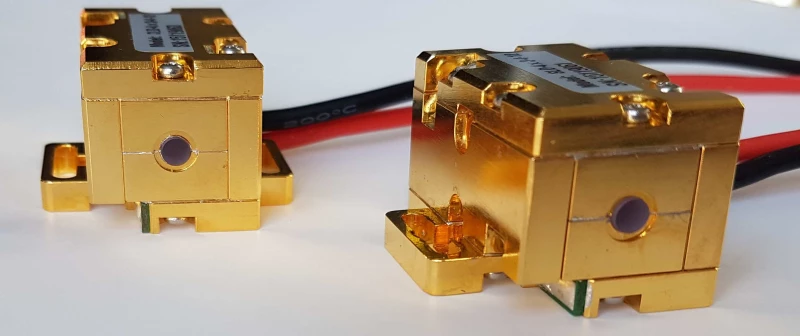

Laser Gain Modules (Passively Cooled)

Description

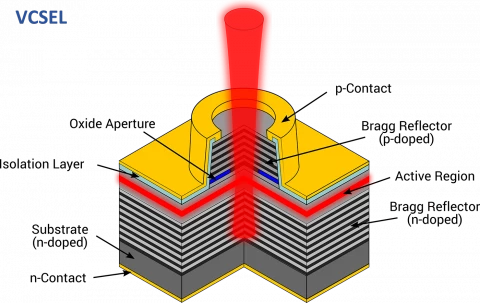

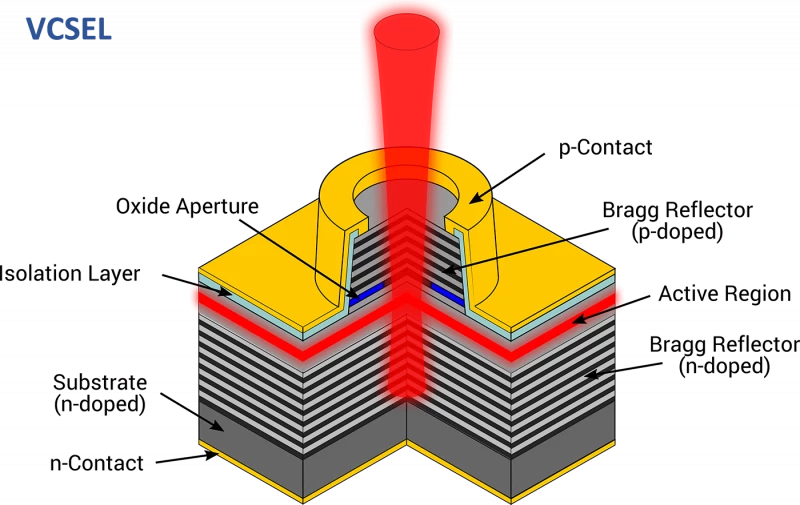

A heart of Diode-Pumped Solid-State (DPSS) lasers or laser amplifiers are Laser Gain Module (pump chamber). By evolving laser gain modules, Geola Digital can provide DPSS laser gain modules based on Vertical Cavity Surface Emitting Laser (VCSEL) pumping engine technology. Our DPSS laser gain module engines assures uniform gain distribution, high pumping efficiency and long life time. We have two types of gain modules, namely Water-cooled gain modules and Passively-cooled gain modules. Typical air cooled DPSS Gain modules can be applicable for Nd:YAG Master Oscillator or Nd:YAG laser amplifier. The customized gain modules can be also provided on request.

Specifications

Avg. Power:	1800 W
Wavelength:	808 nm
Repetition Rate:	0.02 – 0.02 kHz
Spatial Mode (M^2):	1.3
Pulse Duration:	200000 ns
Pulse-to-Pulse Stability (RMS):	1 %
Cooling:	Conductive
Model No.:	VCSEL-4×3-4
Rod Diameter:	∅4
Chip Quantity:	12
Pump Power At 200 µs:	1800
Pulse Energy At 200 µs:	> 90 mJ
Model No.:	VCSEL-4×4-4
Rod Diameter:	∅4
Chip Quantity:	16
Pump Power At 200 µs:	2400
Pulse Energy At 200 µs:	> 120 mJ
Model No.:	VCSEL-4×5-4
Rod Diameter:	∅4
Chip Quantity:	20
Pump Power At 200 µs:	3000
Pulse Energy At 200 µs:	> 150 mJ
Model No.:	VCSEL-4×6-4
Rod Diameter:	∅4
Chip Quantity:	24
Pump Power At 200 µs:	3600
Pulse Energy At 200 µs:	> 180 mJ
Model No.:	VCSEL-4×7-4
Rod Diameter:	∅4
Chip Quantity:	28
Pump Power At 200 µs:	4200
Pulse Energy At 200 µs:	> 210 mJ
Model No.:	VCSEL-4×8-5
Rod Diameter:	∅5
Chip Quantity:	32
Pump Power At 200 µs:	4800
Pulse Energy At 200 µs:	> 288 mJ
Model No.:	VCSEL-4×10-5
Rod Diameter:	∅5
Chip Quantity:	40
Pump Power At 200 µs:	6000
Pulse Energy At 200 µs:	> 360 mJ
Low Wavelength Shift:	0.07 nm/K
Operation Temperature Range:	-20 ℃ — +75 ℃

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Low wavelength shift (0.07 nm/K)
Wide operation temperature range -20 ℃ — +75 ℃
High temperature working up to 75℃

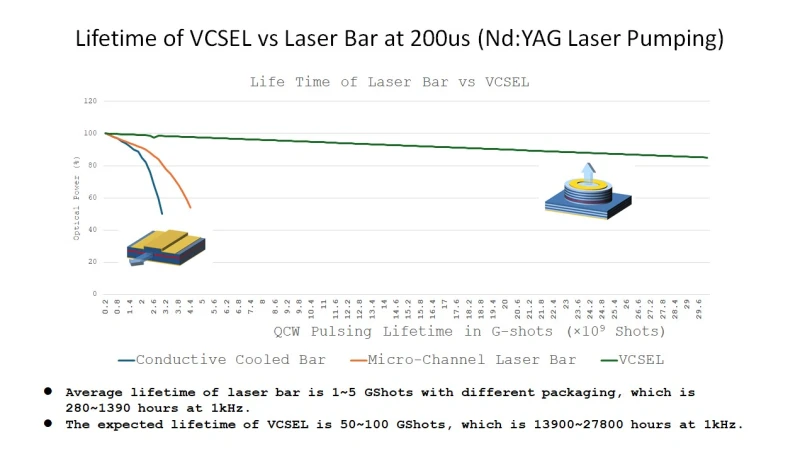

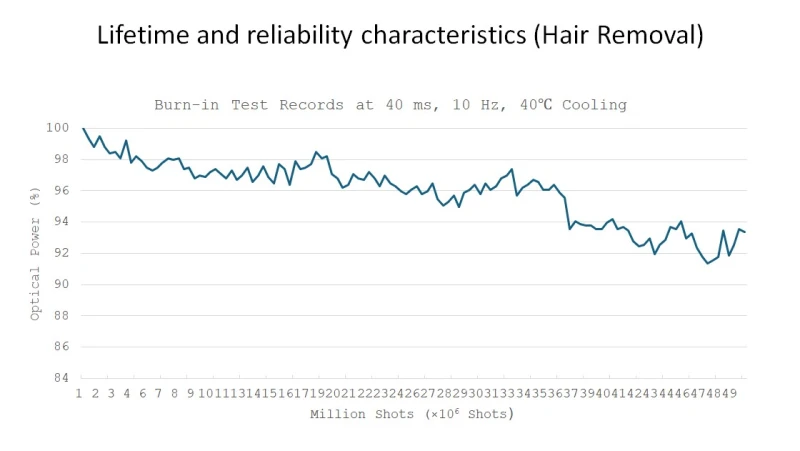

Up to >20G shots life-time
Uniform pumping distribution
Good power/size form factor

Applications

Gain module for air cooled DPSS master oscillator
Gain module for air cooled DPSS Nd:YAG laser amplifier
Gain module for potential military application

Request Quote

To: Geola Digital Ltd
Re: Laser Gain Modules (Passively Cooled)

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: Lithuania
Sold by:: Geola Digital Ltd
On FindLight:: since 2022

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the purpose of a Laser Gain Module?

A Laser Gain Module is the pump chamber of Diode-Pumped Solid-State (DPSS) lasers or laser amplifiers. It provides uniform gain distribution, high pumping efficiency, and long lifetime.

What types of Laser Gain Modules are available?

There are two types of Laser Gain Modules available: Water-cooled gain modules and Passively-cooled gain modules.

What are the features of the Passively-cooled Laser Gain Modules?

The Passively-cooled Laser Gain Modules have a low wavelength shift, wide operation temperature range (-20 ℃ to +75 ℃), high temperature working capability (up to 75℃), and a long lifetime of over 20 billion shots.

What are the typical applications of Passively-cooled Laser Gain Modules?

Passively-cooled Laser Gain Modules are commonly used as gain modules for air cooled DPSS master oscillators, air cooled DPSS Nd:YAG laser amplifiers, and potential military applications.

Can customized gain modules be provided?

Yes, customized gain modules can be provided upon request.
