Lampo IR 1064nm: Compact Ultrafast DPSS Laser

Description

The Lampo series by Bright Solutions is a family of compact, ultrafast DPSS lasers designed to deliver high peak power picosecond pulses with a selectable repetition rate from 50 kHz to 4 MHz. These lasers offer pulse durations as short as 50-70 ps, delivering peak powers up to 4.5 MW and a wide range of wavelengths from IR (1064 nm) to deep UV (266 nm).

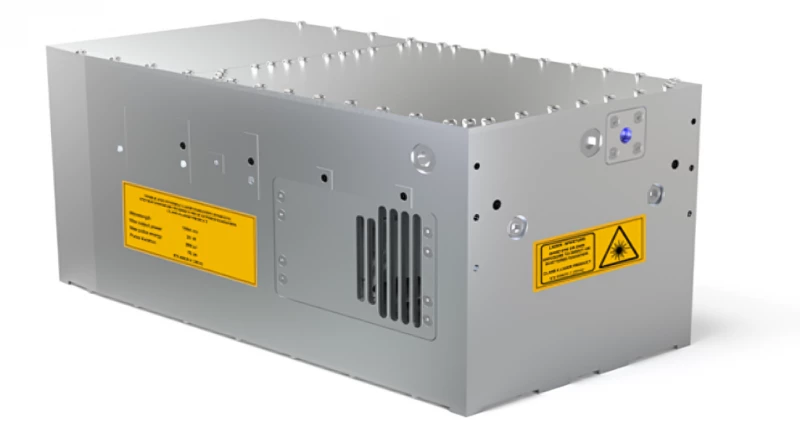

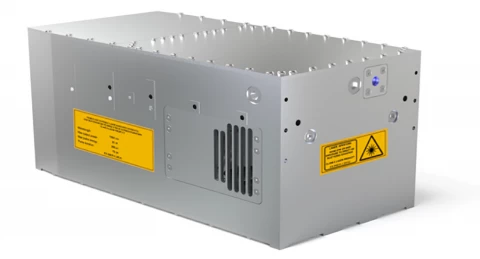

Built with an all-in-one rugged air-cooled laser head, Lampo includes both the monolithic optical section and power/electronic components, providing a robust and flexible solution for integration into sophisticated laser systems or lab applications. Ideal for laser processing of materials like metals, semiconductors, and polymers,

Lampo also excels in LIDAR systems, offering improved resolution and speed due to its high peak power and narrow bandwidth. Its high beam quality, high peak power, and extensive wavelength range make it versatile for scientific, industrial, defense, and medical applications.

Specifications

Avg. Power:	20 W
Wavelength:	1064 nm
Repetition Rate:	50 – 40000 kHz
Pulse Duration:	0.05 ns
Cooling:	Air
Beam Quality:	<1.6
Pulse Energy:	250 uJ
Peak Power:	4.5 MW
Linewidth:	<0.4 nm
Sync Signal Output:	yes
Supply Voltage:	24 V
Supply Power:	<350 W
Operating Temperature Range:	15 – 35 ℃
Laser Head Dimensions:	30x15x13 cm³
Weight:	<10 kg

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High Peak Power: Delivers up to 4.5 MW peak power, ensuring high energy density for demanding applications
Selectable Pulse Repetition Rate: Offers a wide range of repetition rates from 50 kHz to 4 MHz, customizable to application needs
Ultrafast Pulse Duration: Provides pulses as short as 50-70 ps, ideal for high-precision tasks
Wide Wavelength Range: Available from 1064 nm (IR) to 266 nm (UV), with 355 nm and 532 nm options available
Compact and Rugged Design: All-in-one, air-cooled unit for easy integration into systems
High Beam Quality: Ensures precise, stable operation with beam quality of <1.6
External Pulse Trigger: Allows external synchronization for advanced control

Applications

Laser Processing: Ideal for processing metals, semiconductors, polymers, glass, and other transparent substrates
LIDAR Systems: Improves resolution and data collection speed in long-range, high-precision systems
Scientific Research: Suitable for a wide range of laboratory applications requiring high peak power and fast pulse durations
Industrial Applications: Excellent for material processing in high-precision industrial environments
Medical and Biological: Used in laser-based medical applications, including tissue ablation and diagnostics

Request Quote

To: RPMC Lasers, Inc.
Re: Lampo IR 1064nm: Compact Ultrafast DPSS Laser

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: RPMC Lasers, Inc. ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What peak power can the Lampo IR laser achieve?

The Lampo IR laser is capable of reaching peak powers up to 4.5 MW, providing high-intensity pulses for demanding applications.

At what repetition rates does the Lampo IR laser operate?

This laser offers a versatile range of repetition rates from 50 kHz to 40 MHz, allowing users to select the optimal rate for their specific application needs.

What are the pulse durations for the Lampo IR laser?

The Lampo IR laser delivers ultrafast pulses with durations ranging from 50 to 70 picoseconds, suitable for applications requiring precise material interactions.

How is the Lampo IR laser cooled?

The Lampo IR series is designed with an air-cooled system, ensuring efficient heat dissipation without the need for complex cooling setups.

Can the Lampo IR laser be integrated into existing systems?

Yes, its compact and robust design allows for straightforward integration into various scientific, industrial, and medical systems.

What applications can benefit from the Lampo IR laser?

The Lampo IR laser is ideal for a wide array of applications, including but not limited to, scientific research, material processing, medical procedures, and LIDAR technology.

How does the Lampo IR laser ensure pulse consistency?

While the provided information doesn't specify pulse-to-pulse stability, the Lampo IR series typically includes mechanisms like an Active Q-Switch to maintain consistent pulse characteristics. For precise data, contacting RPMC Lasers Inc is recommended.
