Description
The HLX-I products are based on a solid-state, diode-pumped and passively Q–switched laser. With our proprietary and patented design, our lasers generate single pulse at 1064 nm with duration as short as 450ps, repetition rates up to 70 kHz, average power up to 500 mW and energies up to 50 μJ. The extremely reliable and robust microchip design is perfect for advanced OEM industrial and scientific applications. The compact design is best suited for almost any system integration.

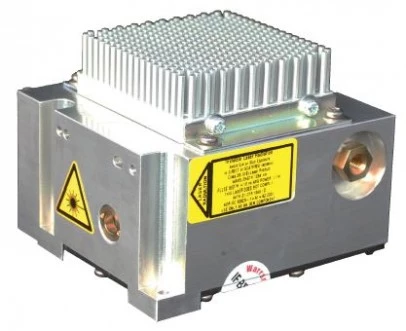

HLX-I DPSS Laser
Specifications
Avg. Power: | 0.5 W |
---|---|
Wavelength: | 1064 nm |
Repetition Rate: | 0.001 – 70 kHz |
Spatial Mode (M^2): | 1.1 |
Pulse Duration: | 1 ns |
Pulse-to-Pulse Stability (RMS): | 0.5 % |
Cooling: | Air |
Second Pulse: | NA |
Expected Lifetime: | >15000 h |
Features
Passively Q-Switched
Proprietary and patented Microchip design
Sub-ns pulses (450 ps to 2 ns) at 1064 nm
Pulses without parasite (no second pulse)
Repetition rate up to 70 kHz
Average power up to 500 mW
Peak power up to 30 kW
Externally triggerable
Electronic power supply with analog or numerical control
Proprietary and patented Microchip design
Sub-ns pulses (450 ps to 2 ns) at 1064 nm
Pulses without parasite (no second pulse)
Repetition rate up to 70 kHz
Average power up to 500 mW
Peak power up to 30 kW
Externally triggerable
Electronic power supply with analog or numerical control
Applications
Laser seeding for fiber amplification
Light Detection and Ranging (LIDAR)
3D Scanning
3D Imaging
Biophotonics
CARS
Pollution monitoring
Atmospheric Sciences
Micromachining
Gemstone marking
Light Detection and Ranging (LIDAR)
3D Scanning
3D Imaging
Biophotonics
CARS
Pollution monitoring
Atmospheric Sciences
Micromachining
Gemstone marking
Frequently Asked Questions
What is the HLX-I DPSS Laser?
The HLX-I DPSS Laser is a solid-state, diode-pumped and passively Q-switched laser that generates single pulse at 1064 nm with duration as short as 450ps, repetition rates up to 70 kHz, average power up to 500 mW and energies up to 50 μJ.
What are the features of the HLX-I DPSS Laser?
The features of the HLX-I DPSS Laser include Passively Q-Switched, proprietary and patented Microchip design, sub-ns pulses (450 ps to 2 ns) at 1064 nm, pulses without parasite (no second pulse), repetition rate up to 70 kHz, average power up to 500 mW, and peak power up to 30 kW.
What are the applications of the HLX-I DPSS Laser?
The applications of the HLX-I DPSS Laser include laser seeding for fiber amplification, Light Detection and Ranging (LIDAR), 3D scanning, 3D imaging, biophotonics, CARS pumping, pollution monitoring, atmospheric sciences, micromachining, and gemstone marking.
What are the technical specifications of the HLX-I DPSS Laser?
The technical specifications of the HLX-I DPSS Laser include a wavelength of 1064 nm, pulse repetition rate (fixed) ranging from 5 kHz to 70 kHz, average power ranging from 50 mW to 500 mW, and pulse energy ranging from 4 μJ to 40 μJ.
What are the safety precautions for using the HLX-I DPSS Laser?
The HLX-I DPSS Laser is a Class 3B (III B) Laser Product that emits invisible laser radiation. To avoid eye or skin exposure to direct or scattered radiation, it is important to use it only as an OEM component. This laser does not comply with 21 CFR 1040.10 nor IEC 60825-1+A1+A2:2001.
