Description
The world\'s most powerful diode-pumped Er:YAG laser module is available for industrial and medical applications. The average output power of up to 25 W and repetition rates of up to 1 kHz allows controlled and at the same time precise treatments.

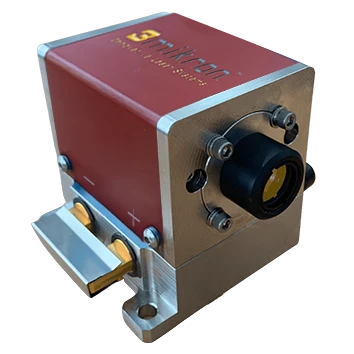

High Power 3 µm DPSSL DPM-25 (Er:YAG) free / fiber
Specifications
Avg. Power: | 25 W |
---|---|
Wavelength: | 2940 nm |
Repetition Rate: | Not Specified |
Spatial Mode (M^2): | 25 |
Pulse Duration: | 40000 ns |
Pulse-to-Pulse Stability (RMS): | Not Specified |
Cooling: | Water-to-Water |
Features
- Compact monolithic laser system
- Highly efficient diode pumping
- No high-voltage required
- Reduced waste heat
- Fiber-coupled versions available
- Maintenance free
- Process variability
Applications
Medical:
- Aesthetics / Dermatology
- Dentistry
- ENT
- Lithotripsy
- Minimally-Invasive Surgery
- Orthopedics
- etc.
Industrial:
- Material Processing (Drilling, Cutting, Melting, Welding, Evaporation)
- Analytics
- Security
- Defense
Frequently Asked Questions
What is the average output power of the High Power 3 µm DPSSL DPM-25 (Er:YAG) laser module?
The average output power of the DPM-25 laser module is 25 W.
What are the applications of the DPM-25 laser module?
The DPM-25 laser module can be used in medical applications such as aesthetics/dermatology, dentistry, ENT, lithotripsy, minimally-invasive surgery, orthopedics, etc. It can also be used in industrial applications such as material processing, analytics, security, and defense.
Does the DPM-25 laser module require high-voltage?
No, the DPM-25 laser module does not require high-voltage.
Is the DPM-25 laser module maintenance-free?
Yes, the DPM-25 laser module is maintenance-free.
What is the cooling requirement for the DPM-25 laser module?
The DPM-25 laser module requires distilled water with Algaecide and Corrosion Inhibitor as the coolant. The recommended coolant temperature is 20 to 25 °C, and the recommended coolant flow rate is greater than or equal to 5 lpm.
