Description
The world\'s most powerful diode-pumped Er:YAG laser module is available for industrial and medical applications. The average output power of up to 2 W and repetition rates of up to 1 kHz allows controlled and at the same time precise treatments.

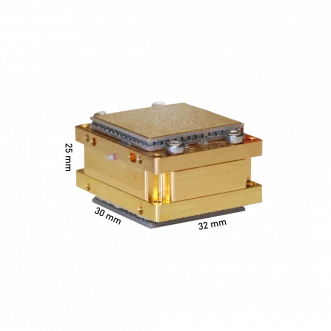

High Power 3 µm DPSSL DPM-2 (Er:YAG) free / fiber
Specifications
| Avg. Power: | 2 W |
|---|---|
| Wavelength: | 2940 nm |
| Repetition Rate: | Not Specified |
| Spatial Mode (M^2): | 5 |
| Pulse Duration: | 40000 ns |
| Pulse-to-Pulse Stability (RMS): | Not Specified |
| Cooling: | Water-to-Water |
Download Data Sheet
Features
✓ Compact monolithic laser systems
✓ Highly efficient diode pumping
✓ Fiber-coupled versions available
✓ No high-voltage required
✓ Reduced waste heat
✓ Maintenance free
✓ Process variability
Applications
✓ Medical applications
✓ Spectroscopy
✓ OEM applications
Frequently Asked Questions
What is the average output power of the High Power 3 µm DPSSL DPM-2 (Er:YAG) laser module?
The average output power of the DPM-2 laser module is up to 2 W.
What are the applications of the DPM-2 laser module?
The DPM-2 laser module can be used in medical applications, spectroscopy, and OEM applications.
Is the DPM-2 laser module maintenance-free?
Yes, the DPM-2 laser module is maintenance-free.
What is the cooling requirement for the DPM-2 laser module?
The DPM-2 laser module requires distilled water with Algaecide and Corrosion Inhibitor as a coolant.
What is the weight of the DPM-2 laser module?
The DPM-2 laser module weighs 60 grams.
