Description
The FPYL-532-30W-Q is a high-power green DPSS (Diode-Pumped Solid-State) laser featuring Q-switched operation. With a wavelength of 532nm and an average power output of 30W at 10kHz repetition rate, this laser provides a powerful and precisely controlled pulsed laser beam.
It offers a pulse duration of approximately 100ns and a peak power of 30kW, making it suitable for a wide range of applications that require high-energy pulses and precise laser control.
Green High Power Q-switched DPSS Laser FPYL-532-30W-Q
Specifications
Avg. Power: | 30 W |
---|---|
Wavelength: | 532 nm |
Repetition Rate: | 10 – 20 kHz |
Spatial Mode (M^2): | Not Specified |
Pulse Duration: | 100 ns |
Pulse-to-Pulse Stability (RMS): | 3 % |
Cooling: | Water-to-Air |
Single Pulse Energy: | 3 mJ |
Peak Power: | 30 kW |
Beam Divergence (full Angle): | <3.5 mrad |
Beam Diameter At The Aperture: | <9 mm |

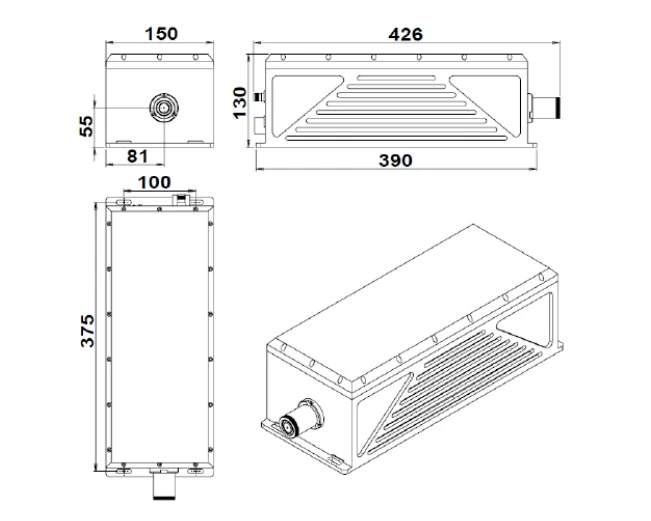

Beam Height From Base Plate: | 55 mm |
Warm-up Time: | <10 minutes |
Operating Temperature: | 15-35 °C |
Power Supply Voltage: | 220 V |
Expected Lifetime: | >10000 hours |
Features
- Wavelength of 532nm with ±1nm accuracy
- Q-switched operation with Acousto-Optic Modulation (AOM)
- Average power output of 30W at 10kHz repetition rate
- Pulse duration of approximately 100ns
- Adjustable repetition rate from 10kHz to 20kHz
- Single pulse energy of 3mJ
- Peak power of 30kW
- Power stability of less than 3% (RMS, over 4 hours)
- Beam divergence (full angle) of less than 3.5mrad
- Beam diameter at the aperture of <9mm
- Beam height from the base plate of 55mm
- Fast warm-up time of less than 10 minutes
- Water-cooled for efficient heat dissipation
- Operating temperature range of 15°C to 35°C
- Power supply voltage options: 110V or 220V (to be specified)
- Expected lifetime of more than 10,000 hours
Applications
- Laser marking and engraving
- Laser micromachining
- Laser cutting
- Laser drilling
- Material processing
- Scientific research
- R&D laboratories
- Biomedical imaging
- Spectroscopy
- Nonlinear optics
Frequently Asked Questions
What are the applications of the FPYL-532-30W-Q DPSS Laser?
The FPYL-532-30W-Q DPSS Laser is used in fluorescence and biomedical imaging, Raman spectroscopy and microscopy, lithography, etc.
What is the model number of the laser instrument?
The model number of the laser instrument is FPYL-532-30W-Q DPSS Laser.
What type of laser is the FPYL-532-30W-Q DPSS Laser?
The FPYL-532-30W-Q DPSS Laser is a diode-pumped solid state laser.
What wavelengths does the FPYL-532-30W-Q DPSS Laser emit?
The FPYL-532-30W-Q DPSS Laser emits a wavelength of 532 nm.
What is the power output of the FPYL-532-30W-Q DPSS Laser?
The power output of the FPYL-532-30W-Q DPSS Laser is 30W.
