FTSS 355-Q Diode Pumped Q-Switched Solid-State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
Introducing the FTSS 355-Q, a cutting-edge diode-pumped passively Q-switched solid state laser developed by CryLas GmbH. This advanced laser system is engineered to deliver high precision and reliability, making it an ideal choice for a variety of scientific and industrial applications. With a wavelength of 355 nm, the FTSS 355-Q is designed to meet the needs of professionals in fields such as biology, biomedicine, chemistry, and analytics.
The FTSS 355-Q stands out with its ability to produce pulsed laser emissions with a pulse width of less than 1.4 ns. This feature ensures that users can achieve exceptional precision in their work. The laser offers a pulse energy of over 42 µJ and operates at repetition rates of up to 20 kHz. This makes it a versatile tool that can be tailored to meet the specific requirements of various applications. The laser system can be configured for either free beam or fiber coupling, providing flexibility in integration and use.

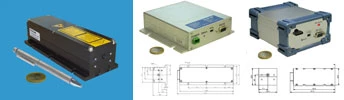

Designed with user convenience in mind, the FTSS 355-Q supports both external and internal triggering, allowing for seamless synchronization with other equipment. Its compact design, featuring a laser head measuring 159 x 54 x 39 mm, ensures easy integration into existing setups. The controller options, available in both stand-alone and OEM configurations, further enhance the adaptability of this laser system to different operational environments.
CryLas GmbH prioritizes safety and compliance, with the FTSS 355-Q classified as a Class 3B/IIIB laser according to IEC standards. This ensures that users can operate the laser with confidence, knowing that it meets stringent safety requirements. Whether you are conducting high-precision measurements or complex analytical tasks, the FTSS 355-Q provides the performance and reliability needed to achieve outstanding results.
FTSS 355-Q Diode Pumped Q-Switched Solid-State Laser
Specifications |
|
|---|---|
| Avg. Power: | 42 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 1 – 20 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 42 uJ |
Features
- High Pulse Energy: Delivers up to >42 µJ pulse energy for demanding applications.
- Short Pulse Width: Generates pulses as short as ≤1.1 ns for high precision.
- Compact Design: Laser head dimensions of only 159 x 54 x 39 mm for easy integration.
- Flexible Triggering: Supports both internal and external TTL triggering for synchronization.
- High Peak Power: Provides peak power up to >30 kW for effective material interactions.
- Excellent Beam Quality: TEM00 spatial mode with low divergence (<4 mrad).
- Polarization Control: High polarization ratio (>100:1 vertical) for polarization-sensitive processes.
- Fiber Coupling Option: Available with fiber coupling for fibers ≥100 µm core diameter.
- Multiple Configurations: OEM and stand-alone systems with manual/electrical shutters and attenuators.
- Efficient Power Consumption: Maximum power consumption of 70 W with 12 V DC operation.
Applications
- Biology and Biomedicine: Ideal for fluorescence excitation and UV-induced biochemical analysis.
- Analytical Chemistry: Enables precise spectroscopy and chemical sensing applications.
- Micro-Analytics: Supports micro-machining, marking, and micro-structuring tasks requiring UV light.
- Scientific Research: Suitable for laboratory experiments requiring high repetition rate UV pulses.
- Material Processing: Effective in applications involving UV curing, ablation, and surface treatment.
Frequently Asked Questions
Options for the CryLaS FTSS-355-Q laser system include a stand-alone system, synchronization signal output, manual or electrical shutter or attenuator, external beam expander, fiber coupling, and closed loop operation for pulse energy.
The CryLaS FTSS-355-Q laser system is widely used in biology, biomedicine, chemistry, analytics, micromachining, and environmental technology.
The pulse energy of the CryLaS FTSS-355-Q laser system is greater than 42 µJ at a pulse repetition rate of 1 kHz.
The CryLaS FTSS-355-Q laser system emits at wavelengths of 213 nm, 266 nm, 355 nm, 532 nm, and 1064 nm.
The maximum power consumption of the CryLaS FTSS-355-Q laser system is 70 W.
