FQSS 266-Q Diode Pumped Q-Switched Solid-State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The CryLas FQSS 266-Q stands out as a high-performance diode-pumped, passively Q-switched solid-state laser. Designed for precision and efficiency, this laser operates at a wavelength of 266 nm, offering exceptional performance in a compact form. With the capability to deliver pulsed outputs of up to 12 µJ and a pulse width of less than 1.0 ns, this laser is engineered to meet the demands of various scientific and industrial applications.
One of the key highlights of the FQSS 266-Q is its versatility in operation. It supports both external and internal triggering, allowing for seamless integration into existing systems. The laser can operate at pulse repetition rates of up to 20 kHz, ensuring high throughput and efficiency. Its free beam and single pulse operation capabilities make it an ideal choice for applications requiring precise and controlled laser outputs.
The laser's design emphasizes reliability and stability, with a pulse energy drift of less than ±5% and a pulse-to-pulse RMS deviation of less than 3%. The optical output maintains a TEM00 spatial mode, ensuring high beam quality with minimal divergence. The robust construction and advanced features of the FQSS 266-Q make it suitable for demanding environments, supported by a warm-up time of less than 5 minutes and an operating temperature range of 18 - 38 °C.
In terms of connectivity and control, the FQSS 266-Q offers interfaces such as RS 232 and USB, with provisions for TTL control and power monitoring. This ensures that users have comprehensive control over the laser's operation, enhancing its usability in complex setups. Additionally, the laser is available with options such as a stand-alone system, synchronization signal outputs, and external beam expanders, providing flexibility to tailor the system to specific needs.

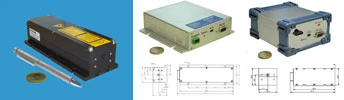

The laser's compact size, with the laser head measuring 159 x 54 x 39 mm, ensures ease of integration into various setups. The controller dimensions vary based on the series, ensuring that users can select the configuration that best suits their spatial constraints. The FQSS 266-Q is classified as a Class 4 laser according to IEC 60825-1:2007, underscoring the need for appropriate safety measures during operation.
FQSS 266-Q Diode Pumped Q-Switched Solid-State Laser
Specifications |
|
|---|---|
| Avg. Power: | 12 W |
| Wavelength: | 266 nm |
| Repetition Rate: | 1 – 20 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 12 uJ |
Features
- High Pulse Energy: Up to 12 µJ at 266 nm for powerful UV applications.
- Short Pulse Duration: ≤ 1.0 ns pulses for high peak power and precision.
- High Repetition Rates: Supports up to 20 kHz for fast processing requirements.
- Excellent Beam Quality: TEM00 spatial mode with <2 mrad divergence.
- Flexible Triggering Options: Internal and external TTL trigger with single-shot operation.
- Compact Design: Laser head dimensions of 159 x 54 x 39 mm for easy integration.
- User-Friendly Interface: RS-232 and USB connectivity for versatile control.
- Optional Accessories: Available with beam expanders, manual shutters, and wavelength switching modules.
Applications
- Biological and Biomedical Research: Enables precise UV irradiation for cell manipulation, fluorescence excitation, and disinfection studies.
- Chemical Analysis and Spectroscopy: Ideal for UV Raman spectroscopy, photolysis, and analytical measurements.
- Material Processing and Micromachining: Supports micro-structuring and ablation of materials requiring high peak power UV pulses.
- Laser-Induced Fluorescence (LIF) and Analytics: Suitable for analytical systems requiring stable, short UV pulses for high-resolution data acquisition.
Frequently Asked Questions
The options available for the CryLaS FQSS-266-Q include a stand-alone system, synchronization signal output, external beam expander, manual shutter or electrical beam blocker, manual or electrical driven wavelength switch 266 / 532 nm, manual or electrical attenuator, and closed loop operation for pulse energy on request.
The CryLaS FQSS-266-Q is a plug and play, air-cooled, very compact laser system with short pulsed TEM00 and closed loop control of output energy. It also has internal energy monitoring and is user-friendly.
The CryLaS FQSS-266-Q has a power consumption of 15 W (max. 40 W) and an operating voltage of 12 V DC. It also has a line voltage of 90 - 265 V AC (50 – 60 Hz).
The CryLaS FQSS-266-Q is a passively Q-switched laser system that emits at a wavelength of 266 nm with excellent beam quality.
The CryLaS FQSS-266-Q is used in biology, biomedicine, chemistry, analytics, micromachining, and environmental technology.
