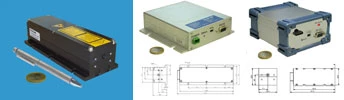

FQSS 213-Q Diode Pumped Q-Switched Solid-State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The FQSS 213-Q from CryLas GmbH represents a pinnacle in laser technology, offering a sophisticated solution for precision applications. This diode-pumped, passively Q-switched solid-state laser is engineered to deliver exceptional performance with its compact design and robust construction. Operating at a wavelength of 213 nm, the FQSS 213-Q provides high peak power and energy efficiency, making it a versatile tool for a variety of scientific and industrial applications.
Designed with innovation in mind, the FQSS 213-Q offers flexibility through both external and internal triggering mechanisms, allowing for seamless integration into existing systems. Its ability to operate in single pulse mode ensures precision and control, essential for tasks requiring meticulous attention to detail. The laser's free beam output further enhances its adaptability, making it ideal for complex setups where precision alignment is crucial.
With a focus on reliability and stability, the FQSS 213-Q maintains consistent performance through its advanced engineering. The laser's pulse energy drift is minimal, ensuring that output remains steady over extended periods of operation. Additionally, its compact dimensions and efficient power consumption make it an excellent choice for environments where space and energy resources are limited. The laser's robust construction is complemented by a quick warm-up time, ensuring that it is ready for use with minimal delay.
Safety and user convenience are also prioritized in the design of the FQSS 213-Q. The laser is classified as a class 4 / IV device, adhering to international safety standards. Optional features such as a stand-alone system with key-switch, heat-sink, and manual shutter provide users with additional control and safety measures. The availability of synchronization signal output and external beam expander options further enhance the laser's functionality, catering to a wide range of user needs.
FQSS 213-Q Diode Pumped Q-Switched Solid-State Laser
Specifications |
|
|---|---|
| Avg. Power: | 25 W |
| Wavelength: | 213 nm |
| Repetition Rate: | 1 – 20 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 2.5 uJ |
Features
- Deep UV Wavelength: Emits at 213 nm for advanced material processing and scientific analysis.
- Short Pulse Duration: Delivers pulse widths ≤ 1.0 ns for high peak power.
- Adjustable Repetition Rate: Operates up to 20 kHz with single-pulse capability.
- Flexible Triggering: Supports both internal and external TTL triggering.
- Exceptional Beam Quality: TEM00 spatial mode with low beam divergence.
- Compact Design: Lightweight laser head and controller for OEM or stand-alone use.
- Easy Control: RS-232 and USB interfaces for user-friendly integration.
- Optional Accessories: Beam expanders, shutters, and synchronization output available
Applications
- Biology and Biomedicine: Precise tissue ablation and fluorescence excitation.
- Chemistry: Laser-induced breakdown spectroscopy (LIBS) and photolysis.
- Analytical Science: UV micro-sampling and surface analysis.
- Material Processing: Micromachining of polymers and delicate substrates.
Frequently Asked Questions
The CryLaS FQSS-213-Q laser system is widely used in biology, biomedicine, chemistry, analytics, micromachining and environmental technology.
The CryLaS FQSS-213-Q laser system emits at wavelengths of 213 nm, 266 nm, 355 nm, 532 nm and 1064 nm.
The pulse repetition rate of the CryLaS FQSS-213-Q laser system is up to 20 kHz.
The warm-up time for the CryLaS FQSS-213-Q laser system is less than 5 minutes.
The pulse energy of the CryLaS FQSS-213-Q laser system is up to 2.5 µJ.
