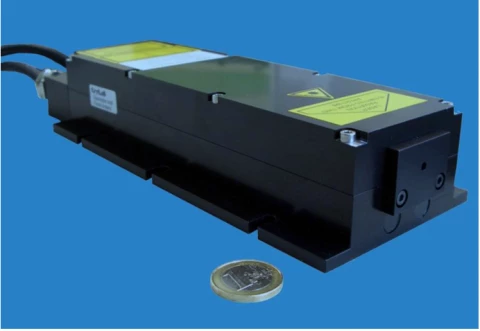

FDSS 532-1000 Diode-Pumped Q-Switched Solid-State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The FDSS 532-1000 is a cutting-edge diode-pumped, passively Q-switched solid-state laser, meticulously designed to deliver exceptional performance in a compact form. Operating at a wavelength of 532 nm, this laser is engineered to provide precise and reliable results, making it an invaluable asset in fields such as biology, biomedicine, chemistry, and analytics. With a pulse energy exceeding 1000 µJ and a pulse width of less than 1.8 ns, the FDSS 532-1000 stands out for its superior power and efficiency.
Designed with versatility in mind, the FDSS 532-1000 supports a pulse repetition rate ranging from 1 to 80 Hz, allowing for flexibility in various applications. The laser's spatial mode, TEM00, ensures a high-quality beam profile, while its beam divergence of less than 6.5 mrad and beam ellipticity of less than 2:1 guarantee precision and accuracy. The laser head is compact, with core dimensions of 217 x 65 x 45 mm, making it easy to integrate into existing systems.
Safety and compliance are paramount, and the FDSS 532-1000 meets rigorous standards, being classified as a Class 3B laser product in accordance with IEC 60825-1:2007. It also complies with 21 CFR 1040.10 and 1040.11, ensuring safe operation and peace of mind. The laser is equipped with a manual shutter or electrical beam blocker for added safety and offers options such as a stand-alone system with CDRH compliance, including a key switch, heat sink, and manual beam shutter.
With an electrical power consumption of less than 150 W and a wide line voltage range of 90 - 265 V AC or 24 V DC, the FDSS 532-1000 is both energy-efficient and adaptable to various power sources. The laser system also features an RS 232 interface, with USB available upon request, ensuring seamless integration and control. Whether for research, development, or industrial applications, the FDSS 532-1000 offers unparalleled performance and reliability.
FDSS 532-1000 Diode-Pumped Q-Switched Solid-State Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.08 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 80 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1.8 ns |
| Pulse-to-Pulse Stability (RMS): | 8 % |
| Cooling: | Air |
| Energy / Pulse: | 1000 uJ |
Features
- High Pulse Energy: Provides >1000 µJ pulse energy at 20 Hz for demanding applications.
- Ultra-Short Pulse Width: Generates pulses shorter than 1.8 ns for precision material interaction.
- High Peak Power: Delivers peak power exceeding 500 kW to ensure effective process results.
- Excellent Beam Quality: TEM00 mode with <6.5 mrad divergence for focused, stable output.
- Flexible Repetition Rate: Adjustable from 1 to 80 Hz with external triggering for versatile use.
- Strong Polarization Ratio: >100:1 vertical polarization to maintain beam consistency.
- Compact and Efficient: Consumes <150 W with a compact footprint for easy integration.
- Integrated Safety and Control: Includes manual/electrical shutter, attenuator, and synchronization output for safe and controlled operation.
Applications
- Biological and Biomedical Research: Ideal for fluorescence excitation and biological imaging techniques.
- Chemical Analysis: Provides precise laser pulses for spectroscopy and analytical measurements.
- Materials Processing: Suitable for micro-marking, ablation, and surface structuring tasks.
- Laser-Induced Breakdown Spectroscopy (LIBS): Enables effective sample breakdown for elemental analysis.
- Optical Pumping and Nonlinear Optics: Serves as a pump source for nonlinear frequency conversion applications.
- OEM Integration in Instrumentation: Designed for integration into advanced analytical and measurement systems requiring reliable green laser output.
Frequently Asked Questions
The CryLaS FDSS-532-1000 laser complies with IEC 60825-1:2007 and 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No.50, dated July 26, 2001.
The pulse duration of the CryLaS FDSS-532-1000 laser is less than 1.8 ns.
The maximum repetition rate of the CryLaS FDSS-532-1000 laser is 80 Hz.
The maximum output of the CryLaS FDSS-532-1000 laser is 1.5 mJ.
The wavelength of the CryLaS FDSS-532-1000 laser is 532 nm.
