Description

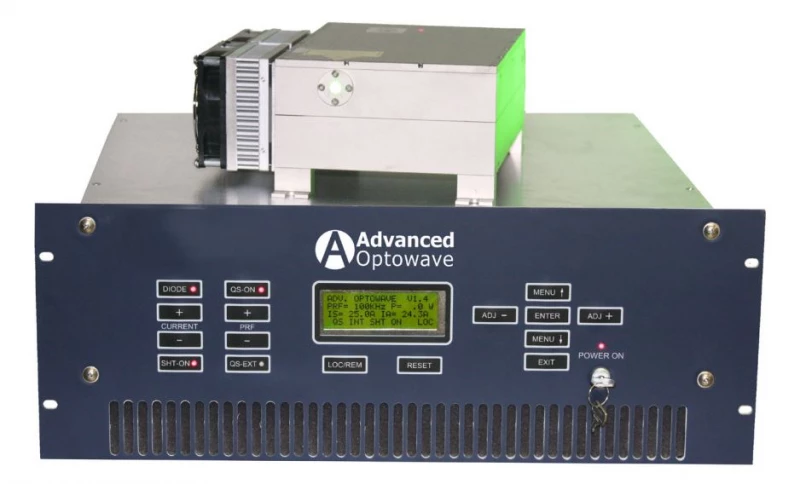

The AWAVE GR Series by Advanced Optowave represents a remarkable leap in laser technology, designed to excel in the most demanding industrial environments. These Q-switched TEM00 mode lasers are meticulously engineered to support continuous 24/7 production operations. Each system is composed of a laser head and a laser controller, seamlessly connected by a 2.5-meter umbilical cable, ensuring flexibility and ease of installation. A standout feature is the fiber-coupled pumping diodes housed within the laser controller, allowing for straightforward field-replacement, thereby minimizing downtime and maintaining operational efficiency.
One of the defining attributes of the AWAVE GR Series is its innovative end-pumping technology combined with air-cooling capabilities, supporting average power outputs of up to 10W. This series is celebrated for its excellent beam quality, pulse stability, and point stability, making it a reliable choice for precision-driven applications. The laser head is securely sealed within a clean room environment, safeguarding its components and assuring long-term reliability and performance. Moreover, the series incorporates patent-pending harmonic conversion technologies, offering a unique edge in laser precision and efficiency.
Designed with versatility in mind, the AWAVE GR Series accommodates pulse frequencies from 1-300 kHz, with an optional extension up to 1 MHz. It supports average power levels from 10mW to 30W, with pulse energy exceeding 10mJ. For applications requiring power beyond 30W, the AW-HP Series is recommended. The ultra-compact and lightweight design, coupled with brand-new focusing optics and a low operational cost, underscores the series' commitment to innovation and practicality. With Advanced Optowave's policy of continuous product improvement, users can expect cutting-edge technology and dependable support, ensuring their laser systems remain at the forefront of industrial laser solutions.
AONano 532-6W-20K ND:YAG GR Laser
Specifications |
|
|---|---|
| Avg. Power: | 6 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 50 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 20 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Pulse Repetition Rate: | Single Shot to 300 kHz |
| Spatial Mode: | TEM00 |
| Beam Roundness: | >90% |
| Pulse Energy (mJ @ 1kHz): | >300uJ |
| Polarization Ratio: | >100:1 LINEAR, VERTICAL |
| Communication Protocol: | RS-232 |
| Operating Voltage (VAC): | 90-260 |
| Line Frequency (Hz): | 47-63 |
| Operation Temperature: | 15º - 30º C |
| Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Enhances efficiency and performance in industrial laser applications.
- Air-Cooling: Supports average power up to 10W, ensuring efficient heat management.
- Excellent Beam Quality, Pulse Stability & Point Stability: Guarantees precise and consistent laser output.
- Patent Pending Harmonic Conversion Technologies: Offers advanced laser capabilities and improved conversion efficiency.
- Ultra-Compact & Light-Weight Design: Facilitates easy integration into various industrial setups.
- Brand-New Focusing Optics: Provides superior focusing capabilities for enhanced laser precision.
- Field-Replaceable Diode: Simplifies maintenance and reduces downtime with easy diode replacement.
- 24/7 Proven Reliability: Engineered to perform reliably in demanding production environments.
- Low Operational Cost: Designed for cost-effective operation and maintenance.
- Flexible Laser Architectures: Customizable to meet specific laser requirements beyond standard specifications.
- Wide Pulse Frequency Range: Ranges from 1-300 kHz, with optional extension to 1 MHz.
- High Pulse Energy: Delivers pulse energy in excess of 10mJ for powerful laser applications.
- Sealed Laser Head: Ensures long-term reliability by protecting the laser head in a clean room environment.
- Comprehensive Warranty: Limited warranty coverage provided for all AWAVE Series laser systems.
Applications
- Precision Micromachining: Perfect for fine cutting, drilling, and patterning of metals and non-metals.
- Semiconductor Processing: Supports wafer dicing, marking, and scribing with high repeatability.
- Medical Device Manufacturing: Ensures clean, precise laser structuring of medical-grade materials.
- Solar & Photovoltaic Production: Delivers consistent laser performance for scribing and patterning.
- Advanced Research & Development: Suitable for laboratories requiring customizable, high-stability lasers.
Frequently Asked Questions
The AWAVE GR Series laser is used for cutting, drilling, welding, microscopic imaging, inspection, biomedical, holographic, spectroscopic, and other applications.
The pulse frequency range of the AWAVE GR Series laser is from 1-300 kHz (300 kHz to 1 MHz is optional).
The average power range of the AWAVE GR Series laser is from 10mW to 30W.
The pulse energy range of the AWAVE GR Series laser is in excess of 10mJ.
Yes, the AWAVE GR lasers are designed and engineered with flexible laser architectures. Customers can contact Advanced Optowave for any laser requirements exceeding standard specifications.
