Description

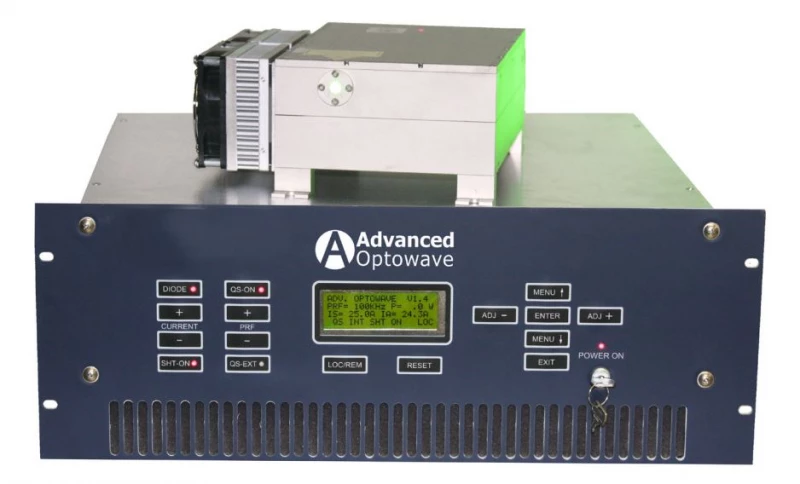

Discover the pinnacle of laser technology with the AWAVE SERIES Industrial Lasers by Advanced Optowave. Designed to set new standards in precision and reliability, the NANO-GR-527/532 models showcase groundbreaking advancements in laser engineering. With innovative end-pumping technology and air-cooling systems capable of handling average power up to 10W, these lasers offer unparalleled performance in a compact, lightweight design.
The AWAVE GR Series is engineered for the most demanding 24/7 production environments, ensuring continuous operation with excellent beam quality, pulse stability, and point stability. The integration of patent-pending harmonic conversion technologies further enhances their capability, making them a versatile choice for various industrial applications. Each system is comprised of a laser head and a laser controller, connected by a 2.5-meter umbilical cable, with field-replaceable fiber-coupled pumping diodes conveniently located in the laser controller.
With pulse frequencies ranging from 1-300 kHz, extendable up to 1 MHz, and average power outputs from 10mW to 30W, the AWAVE GR Series lasers are adaptable to a wide range of operational needs. The laser head is meticulously sealed in a clean room environment to ensure long-term reliability and performance consistency. For those requiring power beyond 30W, the AW-HP Series offers additional options.
Advanced Optowave is committed to innovation and continuous product improvement, ensuring that each laser system meets the highest standards of quality and efficiency. With a focus on low operational costs and proven 24/7 reliability, the AWAVE SERIES is an investment in cutting-edge technology and operational excellence.
AONano 532-25W-50K ND:YV04 GR Laser
Specifications |
|
|---|---|
| Avg. Power: | 25 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 300 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 20 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Water-to-Air |
| Spatial Mode: | TEM00 |
| Beam Roundness: | >90% |
| Pulse Energy (mJ @ 1kHz): | >300uJ |
| Polarization Ratio: | >100:1 LINEAR, VERTICAL |
| Operating Voltage (VAC): | 90-260 |
| Line Frequency (Hz): | 47-63 |
| Operation Temperature: | 15º - 30º C |
| Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Experience advanced laser performance with cutting-edge end-pumping technology.
- Air-Cooling System: Efficient air-cooling supports average power up to 10W, ensuring optimal performance without the need for complex cooling systems.
- Excellent Beam Quality: Achieve superior beam quality with pulse stability and point stability for precise applications.
- Patent Pending Harmonic Conversion Technologies: Utilize our unique harmonic conversion technologies for enhanced laser capabilities.
- Ultra-Compact & Light-Weight: Benefit from a design that is both compact and lightweight, simplifying integration and handling.
- Brand-New Focusing Optics: Equipped with innovative optics for improved focus and performance.
- Field-Replaceable Diode: Easily replace diodes in the field, minimizing downtime and maintenance costs.
- 24/7 Proven Reliability: Designed for continuous operation in demanding production environments, ensuring consistent performance.
- Low Operational Cost: Optimize your operational expenses with our cost-effective laser solutions.
- Flexible Laser Architectures: Engineered with adaptable architectures to meet diverse laser requirements.
- Comprehensive Warranty: All AWAVE Series laser systems come with a limited warranty for peace of mind.
Applications
- Micromachining of Delicate Materials: Provides high precision with minimal thermal effects.
- Semiconductor Wafer Processing: Ensures consistent, reliable material removal.
- Solar Cell Scribing and Cutting: Supports high-speed production lines.
- Marking & Engraving on Metals & Polymers: Delivers sharp, clear markings with excellent repeatability.
- Medical Device Manufacturing: Suitable for fine cutting and structuring of sensitive components.
Frequently Asked Questions
The AWAVE GR Series laser is used for cutting, drilling, welding, microscopic imaging and inspection applications, biomedical, holographic, spectroscopic and other applications.
AWAVE GR Series lasers are featured with pulse frequencies ranging from 1-300 kHz (300 kHz to 1 MHz is optional).
AWAVE GR Series lasers have an average power range from 10mW to 30W.
AWAVE GR Series lasers have a pulse energy in excess of 10mJ.
The warranty period for AWAVE GR Series lasers is not mentioned in the product description. Please contact Advanced Optowave for more information.
