Description
The AWAVE SERIES by Advanced Optowave represents a pinnacle of innovation in the realm of industrial lasers. These cutting-edge laser systems are meticulously engineered to meet the rigorous demands of continuous 24/7 production environments. At the heart of the series is the NANO-GR-527/532, which features groundbreaking end-pumping technology and air-cooling capabilities, ensuring an average power output of up to 10W. This series is renowned for its exceptional beam quality, pulse stability, and point stability, all made possible through patent-pending harmonic conversion technologies.

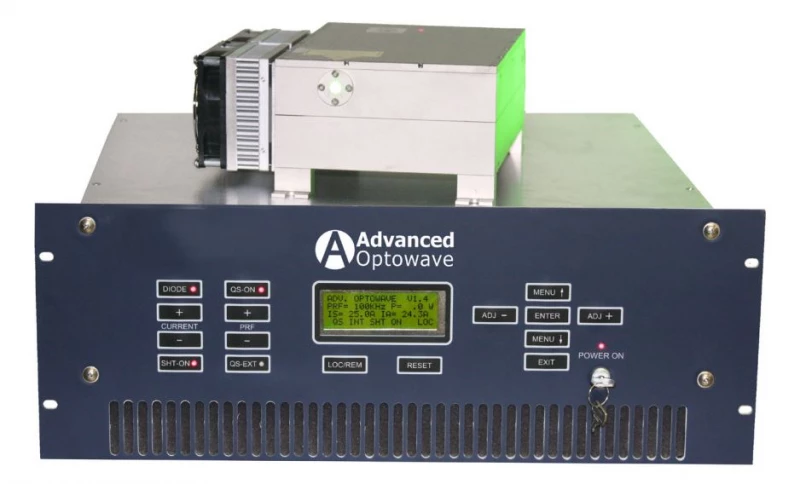

Designed with user convenience in mind, the AWAVE GR Series lasers boast a modular design comprising a laser head and a laser controller, linked by a 2.5-meter umbilical cable. The fiber-coupled pumping diodes are strategically housed within the laser controller, allowing for straightforward field replacement. The laser head is sealed in a clean room environment to guarantee long-term reliability. This ultra-compact and lightweight design is complemented by brand-new focusing optics, making it an ideal choice for varied industrial applications.
The AWAVE GR Series is flexible, offering pulse frequencies ranging from 1-300 kHz, with optional extensions up to 1 MHz. The average power spans from 10mW to 30W, with pulse energy exceeding 10mJ. For applications requiring power beyond 30W, the AW-HP Series is recommended. These lasers are engineered with adaptable architectures to accommodate specific needs beyond standard specifications. Advanced Optowave ensures that each system delivers proven 24/7 reliability and operates at a low cost, making it a prudent investment for industries seeking high-performance laser solutions.
AONano 532-20W-50K ND:YV04 GR Laser
Specifications |
|
|---|---|
| Avg. Power: | 20 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 300 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 25 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Water-to-Air |
| Spatial Mode: | TEM00 |
| Beam Roundness: | >90% |
| Pulse Energy (mJ @ 1kHz): | >300uJ |
| Operating Voltage (VAC): | 90-260 |
| Line Frequency (Hz): | 47-63 |
| Operation Temperature: | 15º - 30º C |
| Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Experience enhanced efficiency and performance with our cutting-edge end-pumping technology.
- Air-Cooling (Average Power Up to 10W): Maintain optimal performance with efficient air-cooling, supporting average power up to 10W.
- Excellent Beam Quality, Pulse Stability & Point Stability: Achieve precision and consistency with superior beam quality and stability.
- Patent Pending Harmonic Conversion Technologies: Benefit from our advanced and proprietary harmonic conversion technologies.
- Ultra-Compact & Light-Weight: Save space and reduce load with our compact and lightweight design.
- Brand-New Focusing Optics: Utilize state-of-the-art optics for improved focus and performance.
- Field-Replaceable Diode: Enjoy ease of maintenance with easily replaceable diodes.
- 24/7 Proven Reliability: Rely on our lasers for continuous operation in demanding environments.
Applications
- Micromachining: Precision cutting, drilling, and structuring of delicate materials.
- Semiconductor Manufacturing: High-stability laser processing for wafer scribing and trimming.
- Medical Device Fabrication: Fine processing of metals and polymers used in medical tools.
- Electronics & Display: Marking, patterning, and structuring of microelectronic components.
- Scientific Research: Suitable for applications requiring high-quality, stable laser sources.
Frequently Asked Questions
The AWAVE GR Series laser is used for cutting, drilling, welding, microscopic imaging, inspection, biomedical, holographic, spectroscopic, and other applications.
The pulse frequency range of the AWAVE GR Series laser is from 1-300 kHz (300 kHz to 1 MHz is optional).
The average power range of the AWAVE GR Series laser is from 10mW to 30W.
The pulse energy of the AWAVE GR Series laser is in excess of 10mJ.
Yes, the AWAVE GR laser can be designed and engineered with flexible laser architectures. Contact Advanced Optowave for any laser requirements exceeding standard specifications.
