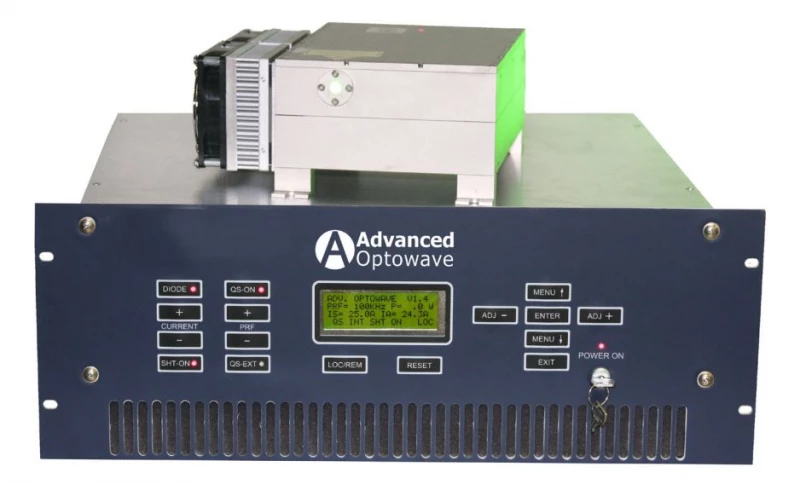

AONano 532-10W-50K ND:YV04 GR Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The AWAVE SERIES by Advanced Optowave represents a leap forward in industrial laser technology, combining cutting-edge design with robust performance. At the heart of this series is the NANO-GR-527/532, a laser system that embodies the spirit of innovation with its pioneering end-pumping technology. This system is engineered for high-demand environments, ensuring seamless performance in 24/7 production settings. With a focus on reliability and efficiency, the NANO-GR-527/532 offers an air-cooled solution capable of delivering average power up to 10W, making it a versatile tool for various industrial applications.
The AWAVE GR Series lasers are meticulously crafted to deliver exceptional beam quality, pulse stability, and point stability. This is achieved through the use of patent-pending harmonic conversion technologies and brand-new focusing optics, which together ensure precision and consistency. The ultra-compact and lightweight design of these lasers makes them easy to integrate into existing systems, while the field-replaceable diode feature minimizes downtime and maintenance costs. Each laser head is sealed in a clean room environment, guaranteeing long-term reliability and performance.
With pulse frequencies ranging from 1-300 kHz and optional extensions up to 1 MHz, the AWAVE GR Series offers a wide range of operational capabilities. The lasers provide average power from 10mW to 30W and pulse energy exceeding 10mJ, catering to diverse industrial needs. For applications requiring more than 30W, the AW-HP Series is available. Advanced Optowave ensures that each laser is designed with flexible architectures to meet specific customer requirements, emphasizing the company's commitment to continuous product improvement and innovation.
Advanced Optowave's dedication to quality is evident in the 24/7 proven reliability of the AWAVE GR Series. These lasers are designed to operate with low operational costs, making them an economical choice for businesses looking to enhance their production capabilities without sacrificing quality. With a limited warranty and a policy of continuous improvement, Advanced Optowave stands by its products, offering peace of mind and assurance to its customers.
AONano 532-10W-50K ND:YV04 GR Laser
Specifications |
|
|---|---|
| Avg. Power: | 10 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 300 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 10 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Spatial Mode: | TEM00 |
| Beam Roundness: | >90% |
| Pulse Energy (mJ @ 1kHz): | >300uJ |
| Polarization Ratio: | >100:1 LINEAR, VERTICAL |
| Communication Protocol: | RS-232 |
| Operating Voltage (VAC): | 90-260 |
| Line Frequency (Hz): | 47-63 |
| Operation Temperature: | 15º - 30º C |
| Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Experience cutting-edge laser performance with advanced end-pumping technology for superior efficiency.
- Air-Cooling System: Maintain optimal performance with air-cooling, supporting average power up to 10W.
- Excellent Beam Quality: Achieve outstanding beam quality, pulse stability, and point stability for precision applications.
- Patent Pending Harmonic Conversion Technologies: Benefit from our unique harmonic conversion technologies for enhanced laser output.
- Ultra-Compact & Light-Weight: Designed for ease of use and portability without compromising on performance.
- Brand-New Focusing Optics: Utilize state-of-the-art focusing optics for improved accuracy and results.
- Field-Replaceable Diode: Simplify maintenance with easily replaceable fiber-coupled diodes located in the laser controller.
- 24/7 Proven Reliability: Engineered for continuous operation in demanding production environments, ensuring consistent performance.
- Low Operational Cost: Reduce operational expenses with efficient design and reliable components.
- Flexible Laser Architectures: Customizable to meet specific application requirements, with pulse frequencies ranging from 1-300 kHz (optional up to 1 MHz).
- Wide Range of Power and Pulse Energy: Average power from 10mW to 30W and pulse energy exceeding 10mJ, with options for higher power in the AW-HP Series.
- Sealed Laser Head: Ensures long-term reliability by keeping the laser head protected in a clean room environment.
- Comprehensive Warranty: Backed by a limited warranty for peace of mind. Contact Advanced Optowave for full warranty details.
Applications
- Micromachining & Scribing: Provides precise material removal for electronics and medical devices.
- Semiconductor Processing: Enables fine patterning and wafer dicing.
- Laser Marking & Engraving: Produces high-contrast, permanent marks on metals and plastics.
- Photovoltaic Cell Manufacturing: Facilitates accurate cell scribing and edge isolation.
- Glass & Ceramic Processing: Delivers clean edges and fine details in brittle materials.
Frequently Asked Questions
The AWAVE GR Series laser is a diode-pumped solid-state laser that emits an intense laser beam of light with unique and highly useful properties. It can be used for cutting, drilling, welding, microscopic imaging, inspection, biomedical, holographic, spectroscopic, and other applications.
The AWAVE GR Series laser features innovative end-pumping technology, air-cooling (average power up to 10W), excellent beam quality, pulse stability, and point stability, patent-pending harmonic conversion technologies, ultra-compact and lightweight design, brand-new focusing optics, field-replaceable diode, 24/7 proven reliability, and low operational cost.
The AWAVE GR Series laser is featured with pulse frequencies ranging from 1-300 kHz (300 kHz to 1 MHz is optional).
The AWAVE GR Series laser is featured with average power covered from 10mW to 30W.
Yes, for a GR laser over 30W, please refer to the AW-HP Series. Our AWAVE GR lasers are designed and engineered with flexible laser architectures. Contact Advanced Optowave for any laser requirements exceeding standard specifications.
