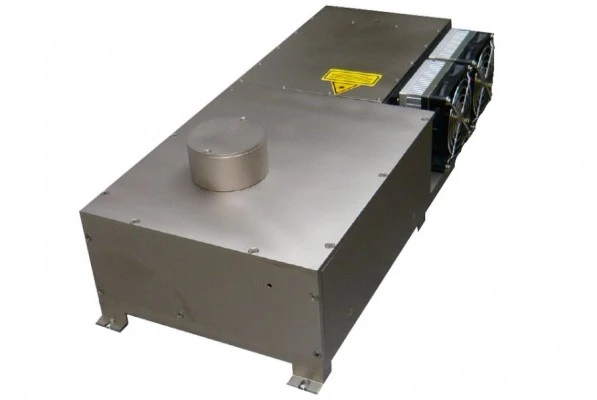

AONano 263-3W-3K ND:YLF DUV Laser
AWAVE DUV Series models are Q-switched TEM00 mode lasers and are engineered for the highly demanding 24/7 production environment. Each system consists of a laser head and a laser controller connected with a 2.5 meter umbilical cable. The fiber-coupled pumping diodes are located in the laser controller for easy field-replacement. The laser head is sealed in a clean room to assure long-term reliability. AWAVE DUV Series lasers are featured with pulse frequencies ranging from 1-200 kHz, average power covered from 10mW to 3W and pulse energy in excess of 3mJ. For a DUV laser over 3W, please refer to the AW-HP Series. Our AWAVE UV lasers are designed and engineered with flexible laser architectures. Contact Advanced Optowave for any laser requirements exceeding standard specifications.
- Avg. Power: 3 W
- Wavelength: 263 nm
- Repetition Rate: 0 - 15 kHz
- Spatial Mode (M^2): 1.2
- Pulse Duration: 40 ns
- Pulse-to-Pulse Stability (RMS): 2 %
- Cooling: Water-to-Water
Key laser applications include: micro-technologies and nanotechnology; semiconductor inspection; microlithography; measurement, test and repair of electronic circuits; medical and biotechnology; consumer electronics; industrial processes and quality control; materials processing; imaging and printing; graphic arts display; and research and development. In particular, ultraviolet (“UV”) lasers are profiting from the trend towards miniaturization, which is a driver of innovation and growth in many markets. The short wavelength of lasers that emit light in the UV spectral region make it possible to produce extremely small structures — with maximum precision — consistent with the latest state-of-the-art technology.
