JOLD-250-CAXF-6P2 940: Fiber Coupled Laser Diode

Description

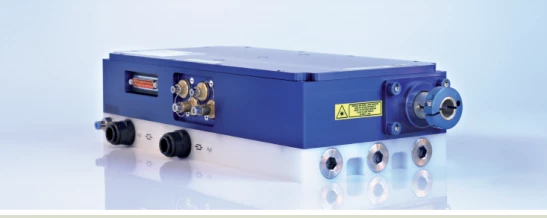

The JOLD-250-CAXF-6P2 is a fiber-coupled, multimode laser diode array, with options for 808nm, 915nm, 940nm, and 976nm wavelength, and CW output power up to 25oW, delivered via 600µm core diameter fiber. This diode array is equipped with an integrated pilot laser, power monitor, and an internal fiber detector (interlock). The JOLD-250-CAXF-6P2 is conductively cooled and is designed for medical applications.

Specifications

Laser Type:	Continuous Wave (CW)
Fiber Type:	Multi-Mode
Wavelength:	940 nm
Output Power:	250000 mW
Fiber Core Diamater:	600 um
Fiber Cladding Diameter:	Not Specified

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wavelength: 808, 915, 940, and 976 nm
High optical output power up to 250 W cw
Fiber core diameter: 600 μm (NA 0.22)
Integrated pilot laser and power monitor
Internal fiber detector ( interlock )
Conductive cooling
Designed for medical applications

Applications

Pumping of solid-state lasers and fiber lasers
Material processing

Request Quote

To: RPMC Lasers, Inc.
Re: JOLD-250-CAXF-6P2 940: Fiber Coupled Laser Diode

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: RPMC Lasers, Inc. ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the features of the JOLD-250-CAXF-6P2 laser diode array?

The JOLD-250-CAXF-6P2 laser diode array has an integrated pilot laser, power monitor, and internal fiber detector (interlock). It is conductively cooled and has a fiber core diameter of 600 µm.

What is the JOLD-250-CAXF-6P2 laser diode array used for?

The JOLD-250-CAXF-6P2 laser diode array is designed for medical applications, such as pumping of solid-state lasers and fiber lasers, and material processing.

What is the expected lifetime of the JOLD-250-CAXF-6P2 laser diode array?

The JOLD-250-CAXF-6P2 laser diode array has an expected lifetime of over 10,000 hours (constant current).

What are the available wavelength options for the JOLD-250-CAXF-6P2 laser diode array?

The JOLD-250-CAXF-6P2 laser diode array has options for 808nm, 915nm, 940nm, and 976nm wavelength.

What is the maximum optical output power of the JOLD-250-CAXF-6P2 laser diode array?

The JOLD-250-CAXF-6P2 laser diode array has a maximum optical output power of 250 W cw.
