Description
These 10W, 940nm fiber coupled laser diodes offer high efficiency and robust thermal design structure. They are designed to yield lifetimes of thousands of hours at their full rated power for applications including material processing, materials sample illumination and medical uses. They are also used for solid-state laser pumping, beacons, and illumination.
This laser is a well-designed and affordable source for laboratory research and for integration into a laser system product.

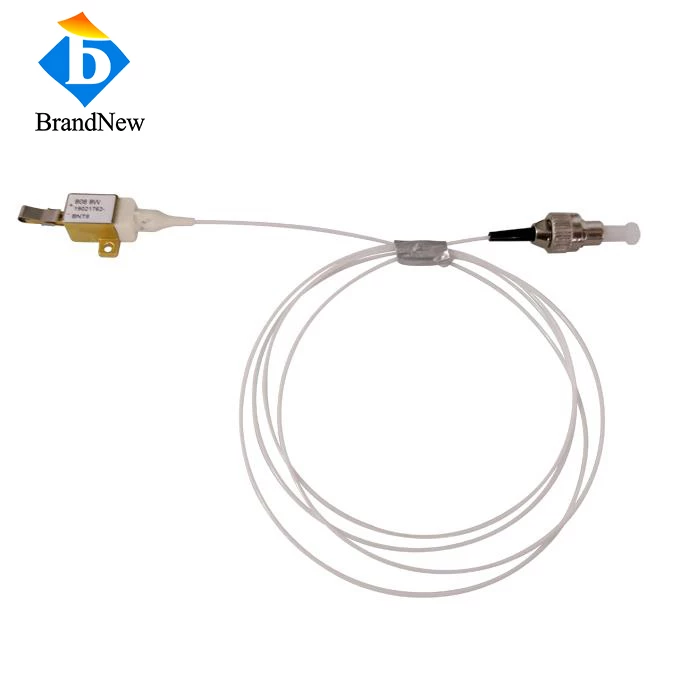

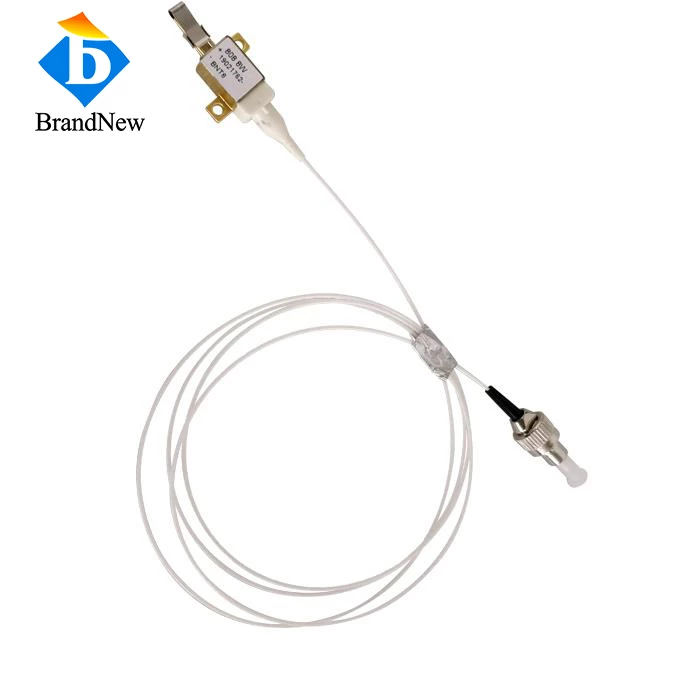

10W 940nm Fiber Coupled Laser Diode
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 940 nm |
| Output Power: | 10000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | Not Specified |
| Fiber Core: | 105 um |
| Fiber Numerical Aperture: | 0.22 NA |
| Fiber Connector: | SMA905 |
| Operating Current Iop: | ≤12 A |
| Threshold Current Ith: | ≤0.9 A |
| Operating Voltage Vop: | ≤2.2 V |
| Power Conversion Efficiency: | ~48 % |
| Operating Temperature: | 15~55 ℃ |
Download Data Sheet
Features
- High coupling efficiency
- High brightness
- Reliable Au/Sn bonding
- RoHS compliance
- Compact design
- Stable output power
- High efficiency
- Long lifetime
Applications
- Material Processing
- Scientific Research
- Medical Use
- IR Illumination
Frequently Asked Questions
What is the power output of the 10W 940nm Fiber Coupled Laser Diode?
The power output of the laser diode is 10W.
What is the wavelength of the laser diode?
The wavelength of the laser diode is 940nm.
What is the typical fiber core size and numerical aperture of the fiber coupled diode laser?
The fiber core size is 105um and the numerical aperture is 0.22NA.
What is the operating current and voltage of the laser diode?
The operating current is 13A and the operating voltage is 2V.
What is the storage temperature range for the laser diode?
The storage temperature range is -30~70℃.
