Description
The 808nm products are achieved by transforming the asymmetric radiation from the 100W laser diode chip into an output fiber with small core diameter by using special micro optics.
100W 808nm Fiber Coupled Laser Diode leverages a long history of fiber-coupled packages, incorporating a highly-reliable design in a scalable commercial product.
To meet customer’s specific demanding and provide high quality products and laser solutions are our eternal pursuit.

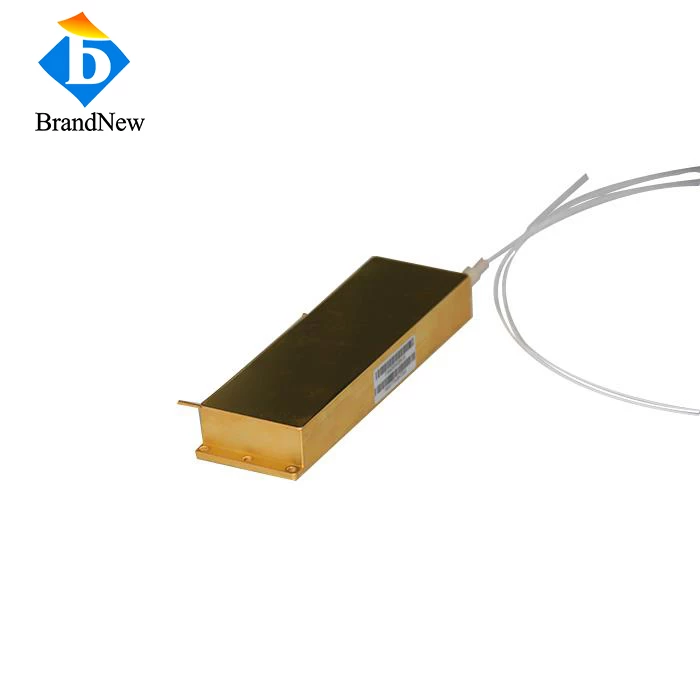

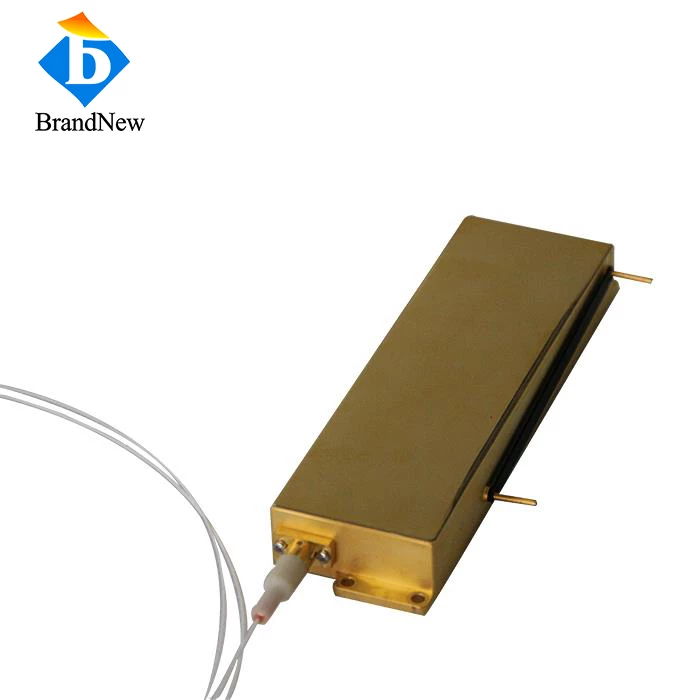

100W 808nm Fiber Coupled Laser Diode
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 808 nm |
| Output Power: | 100000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | Not Specified |
| Fiber Core: | 200 um |
| Fiber Numerical Aperture: | 0.22 NA |
| Fiber Connector: | Bare end |
| Operating Current Iop: | 9.0~10 A |
| Threshold Current Ith: | 1 A |
| Operating Voltage Vop: | 27 V |
| Power Conversion Efficiency: | ~40 % |
| Operating Temperature: | 15~35℃ ℃ |
Download Data Sheet
Features
- High laser power density
- Multi-mode
- 808nm, Up to 100W CW Output Power
- 200um,0.22NA Fiber Core
- 2-Pin Package
- Multi-mode with High Reliability
Inspecting and burn-in procedures in every aspect come to a result to guarantee each product with the reliability, stability and long lifetime.
Applications
- Solid-state laser pumping
- Material processing
- Medical industry
Frequently Asked Questions
What is the output power of the 100W 808nm Fiber Coupled Laser Diode?
The output power of the 100W 808nm Fiber Coupled Laser Diode is 100W.
What is the fiber core diameter of the laser diode?
The fiber core diameter of the laser diode is 200um.
What is the numerical aperture of the fiber?
The numerical aperture of the fiber is 0.22NA.
What are the applications of the 100W 808nm Fiber Coupled Laser Diode?
The applications of the laser diode include solid-state laser pumping, material processing, and the medical industry.
What is the operating voltage of the laser diode?
The operating voltage of the laser diode is 23V.
