Description

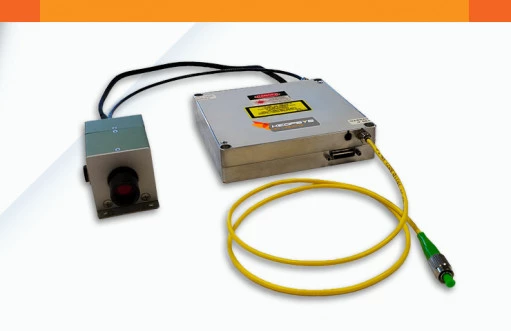

PUFL series UV fiber lasers are pulsed laser sources emitting at 355 nm and delivering high peak power pulse in a very compact package. The 355 nm series is a UV laser based on the combination of a powerful 1.0 µm fiber laser and a com-pact/efficient frequency converter. The output beam is near Gaussian and collimated. The laser system is delivered with an interface module that allows to drive the laser very easily and to keep the frequency converter at constant temperature. This source is ideal for aerosol detection or biological experimentation applications.
PUFL series - UV Ultra-compact Laser Transmitter
Specifications
| Wavelength: | 355 nm |
|---|---|
| Average Output Power: | 0.001 W |
| Pulse Duration: | Not Specified |
| Beam Quality (M^2): | 1.3 |
| Max Pulse Repetition Rate: | 100000000 kHz |
| Energy Per Pulse: | Up to 2 µJ |
Download Data Sheet
Features
- Energy per pulse up to 2 μJ
- Peak power up to 2 kW
- Average power up to 100 mW
- Pulse repetition frequency 50 kHz
- Collimated beam with M2<1.5
<!--1--> - Low power consumption
- Compact and rugged package
Applications
- Aerosol detection
- Fluorescence excitation
- Raman spectroscopy
- Biological experimentation
- Wafer inspection
Frequently Asked Questions
What is the wavelength of the PUFL series UV fiber lasers?
The PUFL series UV fiber lasers emit at 355 nm.
What is the peak power of the PUFL series UV fiber lasers?
The peak power of the PUFL series UV fiber lasers is up to 2 kW.
What applications are the PUFL series UV fiber lasers suitable for?
The PUFL series UV fiber lasers are suitable for aerosol detection, fluorescence excitation, Raman spectroscopy, biological experimentation, and wafer inspection.
What is the energy per pulse of the PUFL series UV fiber lasers?
The energy per pulse of the PUFL series UV fiber lasers is up to 2 μJ.
What is the pulse repetition frequency of the PUFL series UV fiber lasers?
The pulse repetition frequency of the PUFL series UV fiber lasers is 50 kHz.
