Description
The PGFL series is a range of 532 nm pulsed fiber lasers, delivering high peak power and high energy per pulse in compact modules with a diffraction-limited output beam for range finding applications. Green lasers are commonly used for underwater operations in mapping and 3D scanning applications.
The optical design consists of a 1064 nm fiber laser connected to a high-efficiency second-harmonic generator. Compared to other technologies, the innovative optical architecture offers a better electrical trigger to optical-pulse delay jitter and an excellent pulse duration stability, allowing enhanced performance of the user’s system.
The laser modules incorporate a microcontroller for internal controls, alarms, and RS232/USB communication, making the laser widely compatible. Pulses are triggered by an external signal supplied by the user system.
The rugged module can work in the most demanding environments. Its light weight and low power consumption are a particular advantage when using on drones.

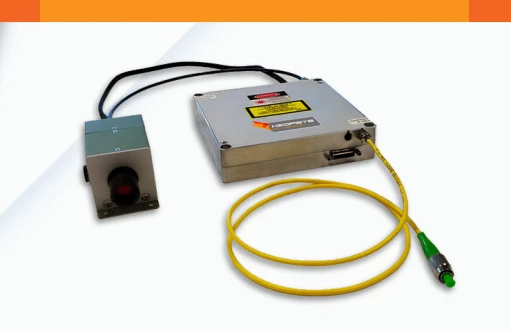

PGFL series - Pulsed Green Fiber Lasers
Specifications
Wavelength: | 532 nm |
---|---|
Average Output Power: | 1.8 W |
Pulse Duration: | 0.5 – 4 ns |
Beam Quality (M^2): | 1.1 |
Max Pulse Repetition Rate: | 1000 kHz |
Energy Per Pulse: | Up to 50 µJ |
Features
- Energy per pulse up to 50 μJ
- Peak power up to 15 kW
- Average power up to 1.8 W in compact and rugged package
- Pulse repetition frequency from 15 kHz to 1 MHz
- Pulse duration from 0.5 to 4 ns
- Diffraction limited output beam
- Low power consumption
Applications
- Environmental monitoring
- Underwater telemetry
- Underwater range-finding
- 3D scanning
- Mapping
Frequently Asked Questions
What is the wavelength of the PGFL series lasers?
What is the maximum energy per pulse that the PGFL series lasers can deliver?
What is the pulse repetition frequency range of the PGFL series lasers?
Can the PGFL series lasers be used for underwater operations?
What kind of communication interfaces do the PGFL series lasers have?
