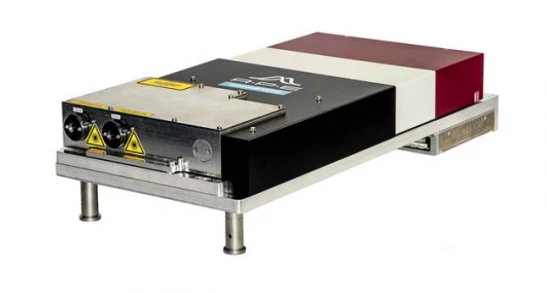

APE HP-Basic Green Long Pulse Emerald Engine
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The APE picoEmerald™ series of optical parametric oscillators (OPOs) was developed to provide an optimized pulsed laser source for everyday use in ps Coherent Raman measurements, video rate SRS imaging and other applications. Now the Emerald Engine extends the popular Levante Emerald series by providing a separate IR fiber based pump laser with a pulse width of only 2 ps.
The pump laser comes with a frequency doubling unit included, resulting in two beams: a frequency doubled output @ 516 nm and output power > 3 W and the undepleted fundamental output @ 1032 nm with output power > 0.75 W. Both beams are intrinsically synchronized and jitter-free (Emerald Engine – Basic– Duo). For applications that require a higher output power the Emerald Engine HP is available with an output power of > 6 W for the frequency doubled output and > 3 W for the undepleted fundamental output (Emerald Engine HP – Basic– Duo).
If the undepleted fundamental beam is not needed, the Emerald Engine – Green longpulse is available with a frequency doubled output @ 516 nm and output power of > 4 W at a pulse duration of approx. 5 ps.
APE HP-Basic Green Long Pulse Emerald Engine
Specifications |
|
|---|---|
| Wavelength: | 516 nm |
| Average Output Power: | 8 W |
| Pulse Duration: | 0.005 – 0.005 ns |
| Max Pulse Repetition Rate: | 80000 kHz |
| Repetition Rate: | 80 ± 0.15 MHz |
| Wavelength 1: | 516 ± 0.75 nm |
| Output Power 1: | > 3.0 W |
| Pulse Width 1: | ~ 2.0 ps |
| Spectral Bandwidth 1: | < 0.5 nm (< 20 cm-1) |
| Polarization 1: | Vertical |
| Wavelength 2: | 1032 ± 1.5 nm |
| Output Power 2: | > 0.75 W |
| Pulse Width 2: | ~ 2.0 ps |
| Spectral Bandwidth 2: | ~ 1 nm (~ 10 cm-1) |
| Polarization 2: | Horizontal |
| Dimensions (Laser): | 730 mm x 345 mm x 163 mm |
| Dimensions (Chiller): | 330 mm x 197 mm x 279 mm |
| Dimensions (Electronics): | 19 |
| Power: | 100 ... 240 V, 50 ... 60 Hz, max. 1200 W |
Features
- Yb-Fiber Laser-Based Technology: The Emerald Engine utilizes Ytterbium fiber laser technology, ensuring high performance and reliability.
- Synchronised Beams: Both the green and IR beams are intrinsically synchronized and jitter-free, providing stable and precise operation.
- Ultra-Short Pulses: Offers pulses as short as 2 picoseconds with a spectral width of only 10 cm-1.
- Stabilized Repetition Rate: The laser repetition rate is stabilized by a cooled base plate for enhanced accuracy.
- Comprehensive Control Software: Windows-based control software is included for easy operation and management.
- Sync-Out Signal: The system includes a sync-out signal for synchronization with other devices.
- Dual Wavelength Output: Features a frequency-doubled beam at 516 nm (> 3 W) and an undepleted fundamental beam at 1032 nm (> 0.75 W).
- High-Power Option: A high-power version is available, delivering > 7 W for the frequency-doubled beam and > 3.5 W for the fundamental beam.
- Customizable Specifications: Customized alternatives are available upon request to meet specific application needs.
- Compact Design: The laser dimensions are 730 mm x 345 mm x 163 mm, and the chiller is 330 mm x 197 mm x 279 mm, making it suitable for various setups.
- Power Requirements: Operates on 100-240 V, 50-60 Hz, with a maximum power consumption of 1200 W.
- Safety Compliance: Classified as a Class 4 laser product, ensuring adherence to safety standards for laser radiation.
Applications
- Yb-fiber Laser-based: Green and IR beam are intrinsically synchronized and jitter-free. Offers pulses as short as 2 ps with a spectral width of only 10 cm-1. Laser repetition rate stabilized by cooled base plate. Windows based control software included. Sync-out signal.
- Emerald Engine: An Yb-fiber based pump laser with a pulse width of 2 ps, alternatively 5 ps. Emerald Engine Duo is equipped with a frequency doubling unit. Two beams are available: a frequency-doubled beam at 516 nm (> 3 W) and the undepleted fundamental beam at 1032 nm (> 0.75 W). The two beams are intrinsically synchronized and jitter-free.
- High-Power Version: A high-power version with an output power of > 7 W for the frequency doubled beam and > 3.5 W for the fundamental beam is also available.
Frequently Asked Questions
The APE picoEmerald™ series is used for everyday use in ps Coherent Raman measurements, video rate SRS imaging, and other applications.
The Emerald Engine Duo is equipped with a frequency doubling unit and has an output power of > 3 W for the frequency doubled output and > 0.75 W for the undepleted fundamental output. The Emerald Engine HP has a higher output power of > 6 W for the frequency doubled output and > 3 W for the undepleted fundamental output.
The Emerald Engine has a pulse width of only 2 ps.
The Emerald Engine - Green longpulse has a frequency doubled output @ 516 nm and output power of > 4 W at a pulse duration of approx. 5 ps.
The Emerald Engine comes with a frequency doubling unit included, a Windows based Control software, and a Sync-Out signal.
