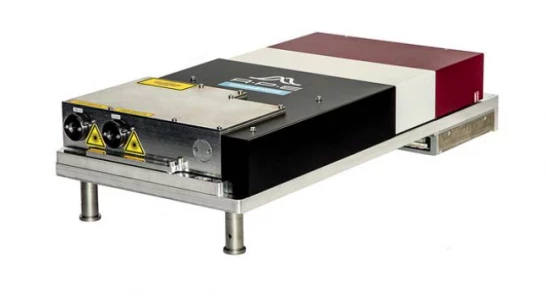

APE HP-Basic Duo Longpulse Emerald Engine

Visit the Applied Physics & Electronics, Inc. Store

Specifications

Wavelength: 516 nm
Average Output Power: 7 W
Pulse Duration: 0.0055 – 0.0055 ns
Max Pulse Repetition Rate: 80000 kHz
Repetition Rate: 80 ± 0.15 MHz
Wavelength 1: 516 ± 0.75 nm
Output Power 1: > 3.0 W
Pulse Width 1: ~ 2.0 ps
Spectral Bandwidth 1: < 0.5 nm (< 20 cm⁻¹)
Polarization 1: Vertical
Wavelength 2: 1032 ± 1.5 nm
Output Power 2: > 0.75 W
Pulse Width 2: ~ 2.0 ps
Spectral Bandwidth 2: ~ 1 nm (~ 10 cm⁻¹)
Polarization 2: Horizontal
Dimensions (Laser): 730 mm x 345 mm x 163 mm
Dimensions (Chiller): 330 mm x 197 mm x 279 mm
Dimensions (Electronics): 19
Power: 100 ... 240 V, 50 ... 60 Hz, max. 1200 W
Document icon Download Data Sheet Download icon

Features

  • Yb-Fiber Laser-Based Design: The Emerald Engine utilizes an Yb-fiber-based pump laser, providing high stability and reliability.
  • Intrinsically Synchronized Beams: The system offers green and IR beams that are intrinsically synchronized and jitter-free, ensuring consistent performance.
  • Ultra-Short Pulses: Delivers pulses as short as 2 picoseconds with a spectral width of only 10 cm-1.
  • Stable Repetition Rate: The laser repetition rate is stabilized by a cooled base plate for enhanced precision.
  • Comprehensive Control Software: Includes Windows-based control software for easy operation and integration.
  • Sync-Out Signal: Provides a sync-out signal for seamless connectivity with other equipment.
  • Dual Beam Output: Features a frequency-doubled beam at 516 nm (> 3 W) and an undepleted fundamental beam at 1032 nm (> 0.75 W).
  • High-Power Version Available: A high-power model is available, offering > 7 W for the frequency-doubled beam and > 3.5 W for the fundamental beam.
  • Customizable Options: Customized alternatives are available upon request to meet specific application requirements.
  • Compact and Efficient Design: The system dimensions are 730 mm x 345 mm x 163 mm for the laser and 330 mm x 197 mm x 279 mm for the chiller, with a power requirement of 100-240 V, 50-60 Hz, max. 1200 W.
  • Safety Notice: Class 4 laser product. Avoid eye or skin exposure to direct or scattered radiation.

Applications

  • Yb-fiber Laser-based: Green and IR beams are intrinsically synchronized and jitter-free. Offers pulses as short as 2 ps with a spectral width of only 10 cm-1. Laser repetition rate stabilized by cooled base plate. Windows-based control software included. Sync-out signal.
  • Emerald Engine: An Yb-fiber based pump laser with a pulse width of 2 ps, alternatively 5 ps. Equipped with a frequency doubling unit. Two beams are available: a frequency-doubled beam at 516 nm (> 3 W) and the undepleted fundamental beam at 1032 nm (> 0.75 W). The two beams are intrinsically synchronized and jitter-free.
  • High-Power Version: Offers an output power of > 7 W for the frequency-doubled beam and > 3.5 W for the fundamental beam.
