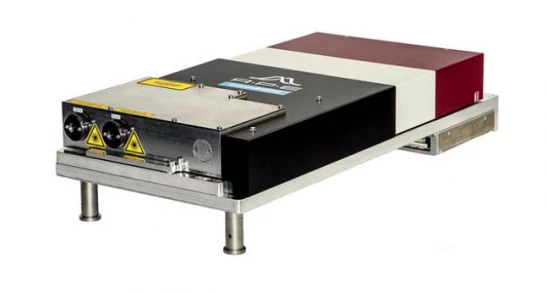

APE HP-Basic Duo Emerald Engine

Visit the Applied Physics & Electronics, Inc. Store

Specifications

Wavelength: 516 nm
Average Output Power: 6 W
Pulse Duration: 0.0025 – 0.0025 ns
Max Pulse Repetition Rate: 80000 kHz
Repetition Rate: 80 ± 0.15 MHz
Wavelength 1: 516 ± 0.75 nm
Output Power 1: > 3.0 W
Pulse Width 1: ~ 2.0 ps
Spectral Bandwidth 1: < 0.5 nm (< 20 cm-1)
Polarization 1: Vertical
Wavelength 2: 1032 ± 1.5 nm
Output Power 2: > 0.75 W
Pulse Width 2: ~ 2.0 ps
Spectral Bandwidth 2: ~ 1 nm (~ 10 cm-1)
Polarization 2: Horizontal
Dimensions (Laser): 730 mm x 345 mm x 163 mm
Dimensions (Chiller): 330 mm x 197 mm x 279 mm
Dimensions (Electronics): 19
Power: 100 ... 240 V, 50 ... 60 Hz, max. 1200 W
Document icon Download Data Sheet Download icon

Features

  • Yb-Fiber Laser-Based Technology: The Emerald Engine features a Yb-fiber laser that provides high precision and performance.
  • Intrinsically Synchronized Beams: Both green and IR beams are synchronized and jitter-free, ensuring reliable operation.
  • Ultra-Short Pulses: Offers pulses as short as 2 ps with a narrow spectral width of only 10 cm-1.
  • Stabilized Repetition Rate: The laser repetition rate is stabilized by a cooled base plate for consistent performance.
  • Comprehensive Control Software: Comes with Windows-based control software for easy operation and management.
  • Sync-Out Signal: Provides a sync-out signal for integration with other systems.
  • Diverse Beam Options: Includes a frequency-doubled beam at 516 nm (> 3 W) and an undepleted fundamental beam at 1032 nm (> 0.75 W), both synchronized.
  • High-Power Version Available: A high-power version offers > 7 W for the frequency-doubled beam and > 3.5 W for the fundamental beam.
  • Customizable Specifications: Options for customized repetition rate, output power, and pulse width are available upon request.
  • Compact Dimensions: Laser dimensions are 730 mm x 345 mm x 163 mm, with a chiller size of 330 mm x 197 mm x 279 mm.
  • Power Requirements: Operates on 100-240 V, 50-60 Hz with a maximum power consumption of 1200 W.
  • Safety Notice: Classified as a Class 4 laser product; avoid exposure to direct or scattered radiation.

Applications

  • Yb-fi ber laser-based: Provides a green and IR beam that are intrinsically synchronized and jitter-free. Offers pulses as short as 2 ps with a spectral width of only 10 cm-1. Laser repetition rate stabilized by a cooled base plate. Windows-based control software included. Sync-out signal available.
  • Emerald Engine: An Yb-fi ber based pump laser with a pulse width of 2 ps, alternatively 5 ps. The Emerald Engine Duo is equipped with a frequency doubling unit. Two beams are available: a frequency-doubled beam at 516 nm (> 3 W) and the undepleted fundamental beam at 1032 nm (> 0.75 W). The two beams are intrinsically synchronized and jitter-free.
  • High-Power Version: Offers an output power of > 7 W for the frequency doubled beam and > 3.5 W for the fundamental beam.
