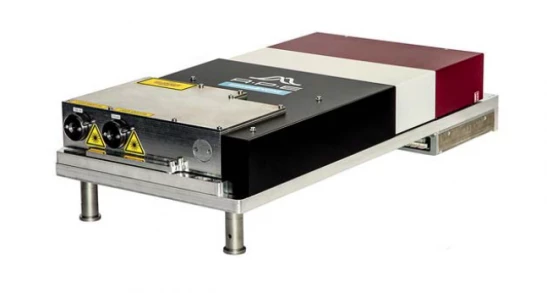

APE Basic Duo Emerald Engine
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The Emerald Engine is a cutting-edge Yb-fiber based pump laser designed to deliver high precision and performance. It offers exceptionally short pulse widths of 2 ps or 5 ps, making it ideal for applications requiring precise timing and control. The laser system is built with the latest technology, ensuring that the Green and IR beams are intrinsically synchronized and jitter-free, providing unparalleled stability and accuracy in your operations.
This advanced laser system features a frequency doubling unit, allowing it to produce two distinct beams: a frequency-doubled beam at 516 nm with an output power exceeding 3 W, and an undepleted fundamental beam at 1032 nm with an output power greater than 0.75 W. For those requiring even more power, a high-power version is available, delivering over 7 W for the frequency-doubled beam and over 3.5 W for the fundamental beam.
The Emerald Engine operates at a stabilized laser repetition rate, thanks to its cooled base plate, ensuring consistent performance. The included Windows-based control software provides a user-friendly interface for easy operation and control of the laser system. With its sync-out signal capability, the Emerald Engine is designed to integrate seamlessly into your existing systems, offering a reliable solution for high-demand applications.
APE Basic Duo Emerald Engine
Specifications |
|
|---|---|
| Wavelength: | 516 nm |
| Average Output Power: | 3 W |
| Pulse Duration: | 0.0025 – 0.0025 ns |
| Max Pulse Repetition Rate: | 80000 kHz |
Features
- Yb-Fiber Laser-Based: The Emerald Engine is an innovative Yb-fiber-based pump laser, ensuring high performance and reliability.
- Synchronized Beams: Both Green and IR beams are intrinsically synchronized and jitter-free, providing stable and consistent output.
- Ultra-Short Pulses: Offers pulses as short as 2 ps with a spectral width of only 10 cm-1, enhancing precision in applications.
- Stabilized Repetition Rate: The laser repetition rate is stabilized by a cooled base plate, ensuring consistent performance.
- Control Software: Comes with Windows-based control software for easy operation and integration.
- Frequency Doubling Unit: The Emerald Engine Duo is equipped with a frequency doubling unit, providing two beams: a frequency-doubled beam at 516 nm (> 3 W) and the undepleted fundamental beam at 1032 nm (> 0.75 W).
- High-Power Version Available: A high-power version offers > 7 W for the frequency doubled beam and > 3.5 W for the fundamental beam, catering to demanding applications.
- Customizable Options: Customized alternatives are available upon request to meet specific application needs.
- Compact Dimensions: Laser dimensions are 730 mm x 345 mm x 163 mm, with chiller dimensions of 330 mm x 197 mm x 279 mm, making it suitable for various setups.
- Power Requirements: Operates on 100 to 240 V, 50 to 60 Hz, with a maximum power consumption of 1200 W.
Applications
- Yb-fiber laser-based: Green and IR beams are intrinsically synchronized and jitter-free. Offers pulses as short as 2 ps with a spectral width of only 10 cm-1. Laser repetition rate stabilized by cooled base plate. Windows-based control software included. Sync-out signal.
- Emerald Engine: An Yb-fiber based pump laser with a pulse width of 2 ps, alternatively 5 ps. Emerald Engine Duo is equipped with a frequency doubling unit. Two beams are available: a frequency-doubled beam at 516 nm (> 3 W) and the undepleted fundamental beam at 1032 nm (> 0.75 W). The two beams are intrinsically synchronized and jitter-free.
- High-Power Version: Available with an output power of > 7 W for the frequency doubled beam and > 3.5 W for the fundamental beam.
Frequently Asked Questions
The APE Basic Duo Emerald Engine is a pulsed laser source used for Coherent Raman measurements, video rate SRS imaging, and other applications.
The pulse width of the IR fiber based pump laser is only 2 ps.
The two beams available in the Emerald Engine Duo are a frequency-doubled beam at 516 nm (> 3 W) and the undepleted fundamental beam at 1032 nm (> 0.75 W).
Yes, the two beams in the Emerald Engine Duo are intrinsically synchronized and jitter-free.
The high-power version of the Emerald Engine has an output power of > 7 W for the frequency doubled beam and > 3.5 W for the fundamental beam.
