Description
The Connet CoLIS-LP series 1550nm nanosecond long pulse single-frequency polarization-maintaining fiber laser is a modularized pulsed fiber laser designed for short-distance coherent Doppler wind lidar applications.
Operating at an eye-safe wavelength, this laser delivers single-mode linear polarization and offers high single-pulse energy of up to 10uJ. With its excellent beam quality and high polarization extinction ratio, it is ideal for various scientific and environmental monitoring applications.

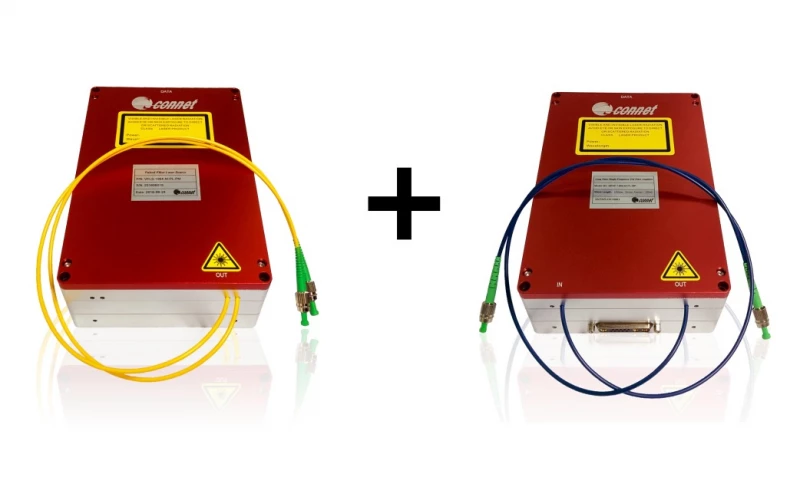

1550nm Long Pulse Single Frequency PM Fiber Laser LP
Specifications
Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
---|---|
Wavelength Range: | 1545 – 1565 nm |
Min Input Power: | Not Specified |
Max Output Power: | 50 dBm |
Nominal Gain: | Not Specified |
Output Fiber Type: | PM1550-XP |
Output Isolation: | 35 dB |
Linewidth (Seed Laser): | 10 KHz |
Pulse Width: | 200 ns |
Repetition Rate: | 10 kHz |
Beam Quality M2: | 1.05 |
Pulse On-off Ratio: | 100 dB |
Frequency Shift: | 80 MHz |
Output Power Stability: | ±0.5 % |
Average Power: | 100 mW |
Built-in Circulator: | Optional |
Power Supply: | 12-24 VDC |
Operating Temperature: | -20 to +50 ℃ |
Storage Temperature: | -40 to +85 °C |
Output Fiber Length: | >0.5 m |
Output Connector Of Intrinsic Light: | FC/APC |
Dimensions (Amplifier): | 200x135x41 mm |
Dimensions (Seed Laser): | 200x135x55 mm |
Features
- Eye-safe Wavelength: 1550nm
- Single Pulse Energy: up to 10uJ
- Adjustable Repetition Rate: 5-100kHz
- Pulse Width: 100-1000ns
- Excellent Beam Quality: M2<1.1
- High Polarization Extinction Ratio (PER)
Applications
- Coherent Doppler Wind LiDAR
- Environmental Monitoring
- Pollution Monitoring
- Other Scientific Research
Frequently Asked Questions
What are the applications of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser?
The applications of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser include Coherent Doppler Wind LiDAR, Environmental Monitoring, Pollution Monitoring, and Other Scientific Research.
What is the adjustable repetition rate of the laser?
The adjustable repetition rate of the laser is 5-20kHz.
What is the operating wavelength of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser?
The operating wavelength of the Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser is 1550nm.
What is the polarization extinction ratio (PER) output of the laser?
The Connet CoLIS-HP series 1550nm nanosecond long pulse single frequency polarization-maintaining fiber laser adopts all PM fiber design and can achieve the high polarization extinction ratio (PER) output.
What is the single pulse energy of the output laser?
The single pulse energy of the output laser can be up to 150uJ.
