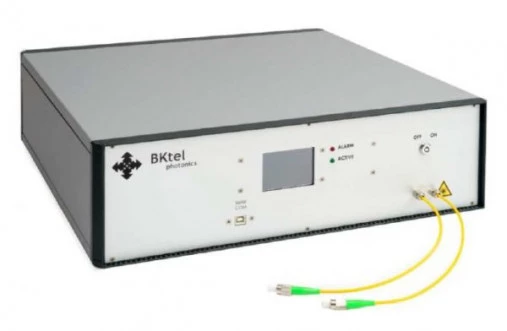

THFL-1.5: 30W CW Fiber Laser 1550nm

Name: THFL-1.5: 30W CW Fiber Laser 1550nm
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

The THFL-1.5 is a 1550nm high power CW turnkey fiber laser from Bktel. These high brightness lasers provide up to 30 W of output power from a single-mode fiber optic making them ideal for a wide range of industrial and scientific applications.

The THFL-1.5 offers output power tunability ranging from 10% to 100% of maximum output power and is available with either standard or polarization maintaining (PM) fiber depending on whether your application calls for linear or random polarization.

The THFL-1.5 laser produces a perfect TEM00 output beam which can be delivered via an FC/APC fiber connector or an optional collimating lens. High-speed triggering and modulation are available with modulation frequencies up to 8 kHz for of high-speed applications.

This laser also comes standard with an RS-232 via the USB communication interface. All of these features make the THFL-1.5 laser series a robust tool for applications like welding, cladding, metrology, and many others.

Specifications

Center Wavelength:	1550 nm
Output Power:	30 W
Output Mode:	Not Specified
Beam Quality (M^2):	1.1
Spectral Linewidth:	1 nm
Output Power Stability:	1.75% ~ 2%
Output Fiber Type:	Other / Non-specified
Output Fiber Length:	1.8 m
Interface:	RS-232, USB 2.0, USB 3.0
Cooling:	Other
Electrical Requirements:	Other / Not Specified

Download Data Sheet

Features

High Output Power, up to 30 W

User friendly Table top

Stable Output Power

Applications

Test & Measurement

Industrial

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the output power of THFL-1.5 fiber laser?

The THFL-1.5 fiber laser provides up to 30 W of output power.

Can the output power be adjusted?

Yes, the THFL-1.5 offers output power tunability ranging from 10% to 100% of maximum output power.

What type of polarization does the THFL-1.5 offer?

The THFL-1.5 is available with either standard or polarization maintaining (PM) fiber depending on whether your application calls for linear or random polarization.

What are the applications of THFL-1.5 fiber laser?

The THFL-1.5 fiber laser is suitable for a wide range of industrial and scientific applications such as welding, cladding, and metrology.

What is the communication interface of THFL-1.5 fiber laser?

The THFL-1.5 fiber laser comes standard with an RS-232 via the USB communication interface.
