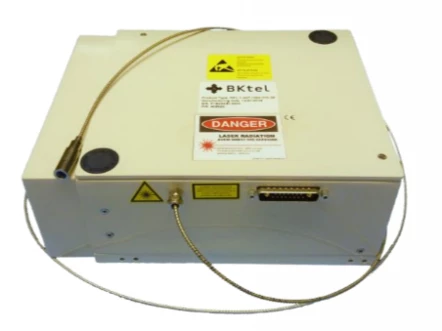

MFL-2: 2um CW Fiber Laser

Description

The MFL-2 is a 2um high power CW Fiber Laser from Bktel. These high brightness lasers provide up to 40 W of output power from a single-mode fiber optic making them ideal for a wide range of industrial and scientific applications.

The MFL-2 offers output power tunability ranging from 10% to 100% of maximum output power and is available with either standard or polarization-maintaining (PM) fiber depending on whether your application calls for linear or random polarization. The MFL-2 laser produces a perfect TEM00 output beam which can be delivered via an FC/APC fiber connector or an optional collimating lens. High-speed triggering and modulation are available with modulation frequencies up to 8 kHz for high-speed applications.

This laser also comes standard with an RS-232 via the USB communication interface. All of these features make the MFL-2 laser series a robust tool for applications like welding, cladding, metrology, and many others.

Specifications

Center Wavelength:	2000 nm
Output Power:	40 W
Output Mode:	Modulated
Beam Quality (M^2):	1.1
Spectral Linewidth:	1 nm
Output Power Stability:	1.75% ~ 2%
Output Fiber Type:	Other / Non-specified
Output Fiber Length:	Not Specified
Interface:	RS-232, USB 2.0, USB 3.0
Cooling:	Other
Electrical Requirements:	Other / Not Specified
Power Supply Voltage:	24 VDC

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High Output Power, up to 40W
Modulation frequency up to 2 kHz
Robust industrial design

Applications

Test & Measurement
Industrial

Request Quote

To: RPMC Lasers, Inc.
Re: MFL-2: 2um CW Fiber Laser

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: RPMC Lasers, Inc. ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the output power range of the MFL-2 laser?

The MFL-2 laser provides up to 40 W of output power.

What is the modulation frequency range of the MFL-2 laser?

The MFL-2 laser offers modulation frequencies up to 2 kHz for high-speed applications.

What type of polarization does the MFL-2 laser offer?

The MFL-2 laser is available with either standard or polarization-maintaining (PM) fiber depending on whether your application calls for linear or random polarization.

What is the beam quality of the MFL-2 laser?

The MFL-2 laser produces a perfect TEM00 output beam with a beam quality of 1.1 M².

What communication interface does the MFL-2 laser come with?

The MFL-2 laser comes standard with an RS-232 via the USB communication interface.
