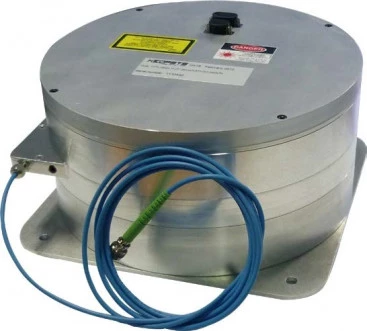

CYFL-MEGA - Continuous Wave Ytterbium-Doped Fiber Laser
Description
CYFL-MEGA stands for Continuous Ytterbium-Doped Fiber Laser. Based on a Lumibird
patented design, the CYFL-MEGA provides a single mode operation and delivers a linewidth
of few MHz up to 20 W of output power. No maintenance is required for this high-power
fiber laser.
The CYFL-MEGA is the result of a long research and development activity on fiber lasers.
The CYFL-MEGA series exhibit low relative intensity noise (RIN) and high optical power
stability. Furthermore, the output beam is diffraction limited either in random or polarized
versions. The design of the fiber laser allows the high stability of the polarization.
Standard operating wavelength is 1064nm, but other wavelengths can be requested on a
custom basis.
The CYFL-MEGA fiber laser is manufactured according a production process which ensures
to all lasers a perfect reproducibility of performances and a high level of reliability.
No specific installation is required, the ytterbium fiber laser is easy to install and operate.
Run it and forget it.
The CYFL-MEGA series are available in benchtops or compact OEM modules. The benchtop
platforms offer the possibility to monitor the laser via the front panel or remotely via serial
port. Both models offer robustness and reliability.
CYFL-MEGA - Continuous Wave Ytterbium-Doped Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Output Power: | From 1 to 20 W |
| Beam Quality (M^2): | < 1.1 |
Features
• Narrow linewidth of a few of MHz
• Single longitudinal mode
• 1064 nm standard operating wavelength
• Output power up to 20 W
• Wavelength tunability (optional)
• Laser frequency modulation (optional)
• Low amplitude noise
• Diffraction limited output
• Random or linear polarization
• Maintenance free
Applications
- Sensing
- Second harmonic generation (SHG)
- Optical component testing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The CYFL-MEGA stands for Continuous Ytterbium-Doped Fiber Laser, which provides single mode operation and delivers a linewidth of few MHz up to 20 W of output power.
The standard operating wavelength of the CYFL-MEGA fiber laser is 1064nm, but other wavelengths can be requested on a custom basis.
The features of the CYFL-MEGA fiber laser include narrow linewidth of a few of MHz, single longitudinal mode, output power up to 20 W, low amplitude noise, diffraction limited output, random or linear polarization, and maintenance-free operation.
The CYFL-MEGA fiber laser is suitable for sensing, second harmonic generation (SHG), and optical component testing.
The CYFL-MEGA fiber laser offers several modes of operation, including Current Set Point, Power Set Point, Laser Output Power, and Pump Current. It also has an Automatic Current Control (ACC) mode which is standard for all devices.
