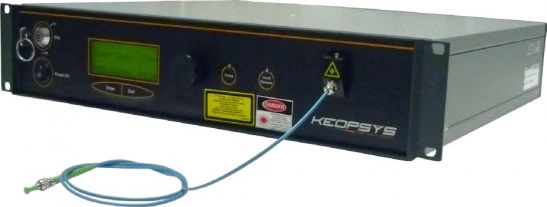

CYFL-KILO - Continuous Wave Ytterbium Fiber Laser
Description
CYFL-KILO stands for Ytterbium fiber laser. The series provides a longitudinal single mode
and frequency output laser beam. These lasers series deliver up to 20W with low phase
noise and low Relative Intensity Noise.
Lumibird ytterbium fiber laser is manufactured for scientific applications as interferometry,
quantum optics, metrology, atom trapping. Lumibird uses its knowledge and high-quality
manufacturing process to produce a stable and reliable narrow linewidth fiber laser.
Different central wavelengths are available in standard, 1030nm, 1064nm, 1083nm, and
others on request. The ytterbium fiber laser can be randomly or linearly polarized. For
applications like atomic trapping, or interferometry where a linear polarization is needed,
then the CYFL-KILO polarization is highly stable.
Reliability and maintenance free are defining this single laser. Coming as an entirely
integrated turnkey benchtop, which can be driven directly from the front face. The systems
offer different controls mode either from the front face or via RS232.
No installation is required as the fiber laser is easy to use, however, on request Keopsys
provides support for its first start.
CYFL-KILO - Continuous Wave Ytterbium Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1064 and 1083 nm |
| Output Power: | From 1 to 20 W |
| Beam Quality (M^2): | < 1.1 for P ≤ 2 W and < 1.3 for P ≥ 5 W |
Features
• Narrow linewidth
• Single frequency laser
• 1064 and 1083 nm standard operating wavelengths
• Output power up to 20 W
• Ultra low phase noise and RIN
• Excellent SMSR
• Wavelength tunability (optional)
• Laser frequency modulation (optional)
• Diffraction limited output
• Random or linear polarization
• Maintenance free
• Turn-key operation
Applications
• Quantum optics such as Bose-Einstein condensate
• Optical tweezing
• Atomic laser interferometry
• Formation of cold molecules
• Nonlinear optics (SHG, OPO)
• Metrolog
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
CYFL-KILO stands for Ytterbium fiber laser. It provides a longitudinal single mode and frequency output laser beam.
CYFL-KILO delivers up to 20W with low phase noise and low Relative Intensity Noise.
CYFL-KILO is manufactured for scientific applications such as interferometry, quantum optics, metrology, atom trapping, optical tweezing, formation of cold molecules, nonlinear optics (SHG, OPO), and metrology.
CYFL-KILO has a narrow linewidth, single frequency laser, excellent SMSR, wavelength tunability (optional), laser frequency modulation (optional), diffraction limited output, random or linear polarization, maintenance-free, and turn-key operation.
CYFL-KILO offers several modes of operation, including Current Set Point, Power Set Point, Laser Output Power, and Pump Current. It also has an Automatic Power Control (APC) mode that allows controlling the laser at a fixed output power set point.
