Description

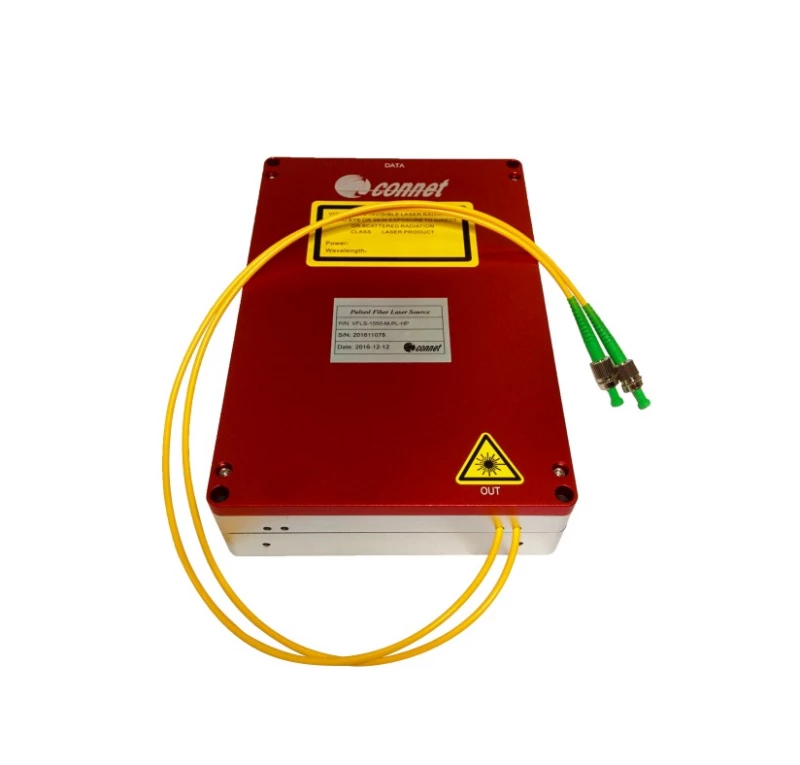

The CoWIND Series 1550nm High Power Single Frequency Fiber Laser Module from Connet is an OEM modular narrow linewidth fiber laser designed for short-range high-precision wind LiDAR applications. With an eye-safe working wavelength and single-frequency single longitudinal mode, this laser ensures long coherence length.

The standard model utilizes polarization-maintaining fiber output with a high polarization extinction ratio (PER), delivering an output power of up to 2W. It features a compact and robust modular design suitable for various harsh environments. The CoWIND laser finds applications in wind power, coherent wind LiDAR, and airborne wind LiDAR systems.

Specifications

Center Wavelength:	1550 nm
Output Power:	2 W
Output Mode:	Continuous Wave (CW), Single Frequency, Single Longitudinal Mode
Beam Quality (M^2):	1.1
Spectral Linewidth:	Not Specified
Output Power Stability:	1% ~ 1.25%
Output Fiber Type:	PMF
Output Fiber Length:	0.3 m
Interface:	Other / Not-specified
Cooling:	Other
Electrical Requirements:	Other / Not Specified
Linewidth:	10 kHz
Relative Intensity Noise (RIN):	-145 to -130 dB/Hz
Wavelength Tunable Range:	0.8 nm
Output Isolation:	45 dB
Polarization Extinction Ratio (PER):	23 dB
Power Supply:	12-24 VDC
Operating Temperature:	-25 to +50 ℃
Storage Temperature:	-40 to +85 ℃
Main Output Fiber Connector:	FC/APC
Dimension:	200(L) x 135(W) x 41(H) mm

Download Data Sheet

Features

Eye-safe wavelength: 1550nm

Narrow linewidth: 10kHz

Long coherence length

Low relative intensity noise (RIN) and phase noise

Single frequency, single longitudinal mode (SLM) output

High Polarization Extinction Ratio (PER)

Applications

Coherent Doppler LiDAR

Environmental monitoring

Pollution detection

Coherent communication or sensing

Other scientific research
