Description

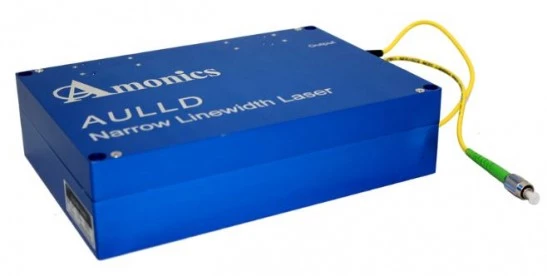

Introducing the Amonics High Power Narrow Linewidth Laser (AULLD series), an advanced solution for precision-demanding applications. This laser is seamlessly integrated with Redfern Integrated Optics (RIO) PLANEXTM high-performance external cavity laser technology. It is designed to deliver exceptionally narrow linewidth, low phase noise, and ultra-low Relative Intensity Noise (RIN), ensuring high output power and reliable performance.
The AULLD series is crafted for ease of use with its turnkey microprocessor-controlled benchtop design. It features comprehensive alarms and status indicators for user-friendly monitoring. Additionally, the laser includes an integrated RS232 or Ethernet computer interface, facilitating straightforward control, diagnostic functions, and data acquisition.
Particularly suitable for commercial fiber optic sensing applications, the AULLD series excels in environments such as interferometric and Brillouin Distributed Temperature and Strain Sensing (DTSS) systems. These applications span industries including oil & gas, security, metrology, and smart infrastructure. The product is manufactured under a HKQAA ISO 9001 certified quality management system, ensuring top-tier quality and reliability. This high-power laser solution is engineered to meet the rigorous demands of modern industries, providing robust performance and precision in a variety of settings. Whether for test and measurement or as a seed laser source, the AULLD series stands out as a dependable choice.
Narrow Linewidth Fiber Laser - AULLD-1550-10-25
Specifications |
|
|---|---|
| Center Wavelength: | 1550.92 nm |
| Output Power: | 0.025 W |
| Output Mode: | Continuous Wave (CW) |
| Output Power Stability: | </= 0.1%, 0.1% ~ 0.2% |
| Output Fiber Type: | SMF-28, PMF |
| Interface: | Other / Not-specified |
| Cooling: | Other |
| Electrical Requirements: | 240V - 50Hz |
| Linewidth (FWHM): | 10 kHz |
Features
- Narrow Linewidth: Provides precision and accuracy, essential for high-performance applications.
- Low Phase Noise: Ensures minimal signal distortion, enhancing measurement reliability.
- Ultra Low RIN: Shot noise limited at frequencies > 100kHz, ideal for sensitive applications.
- High Output Power: Offers output power options up to 2W, suitable for demanding tasks.
- Linear Polarized Output: Maintains signal integrity and reduces interference in optical systems.
- Wavelength Tunability: Provides flexibility with a minimum tunability of +0.02 nm.
- Turnkey Operation: Simplifies use with integrated controls and monitoring features.
- RS232, TCP/IP Remote Control: Facilitates easy integration and remote operation via standard interfaces.
- Ultra Stable: Ensures consistent performance with maximum wavelength stability of +0.005 nm within 8 hours.
- Comprehensive Safety and Monitoring: Includes key-lock switch, BNC interlock key, and optical power monitoring for safe and secure operation.
Applications
- Brillouin Distributed Sensing: Ideal for strain and temperature sensing over long distances.
- Interferometric Fiber Optic Sensing: Ensures stable and coherent laser source for precision measurements.
- LiDAR Systems: Provides narrow linewidth and high power for advanced ranging applications.
- Test & Measurement: Supports optical metrology with high stability and low noise performance.
- Seed Laser Sources: Functions as a stable seed source for fiber amplifiers and laser systems.
Frequently Asked Questions
The AULLD series laser is particularly suitable for commercial fiber optic sensing applications, such as interferometric and Brillouin DTSS sensing systems for oil & gas, security, metrology and smart infrastructure.
The key features of the AULLD series laser include narrow linewidth, low phase noise, ultra low RIN, high output power (up to 2W), linear polarized output, wavelength tunability, turnkey operation, RS232 and TCP/IP remote control, and ultra stability.
The optical output power range of the AULLD series laser is 25mW to 2000mW.
The wavelength tunability range of the AULLD series laser is minimum +0.02nm.
The AULLD series laser is manufactured under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2008 certification applies to the Hong Kong production site only.
