The Coaxial Laser Source BCLD-CWDM-5SM-FA from BOX OptronicsTech is a versatile and high-performance laser light source module. It features a full band wavelength range from 650nm to 1650nm, making it suitable for a wide array of applications. The module utilizes DFB semiconductor lasers and is equipped with a professionally designed, high-precision current drive control board that ensures low noise operation, stability, and safety.

Its adjustable power output, ranging from 1mW to 10mW, can be easily controlled via a benchtop knob, offering users flexibility and ease of use. This laser source is designed for easy integration into various systems due to its compact size and low cost. It supports both single mode and multimode fibers, with customizable options for fiber type and connectors, such as SMF-28e and FC/APC.

The module also boasts excellent electro-optical characteristics, including a spectral width of ≤2.5nm, a side mode suppression ratio of >40dB, and an optical isolator of >30dB. Its stability is ensured with short-term stability of ≤±0.02dB over 15 minutes and long-term stability of ≤±0.05dB over 8 hours. The Coaxial Laser Source is widely used in scientific research, optical fiber communication, optical device testing, medical treatment, spectral analysis, and bioengineering. Its robust design and customizable features make it an ideal choice for researchers and engineers looking for a reliable and efficient laser source.

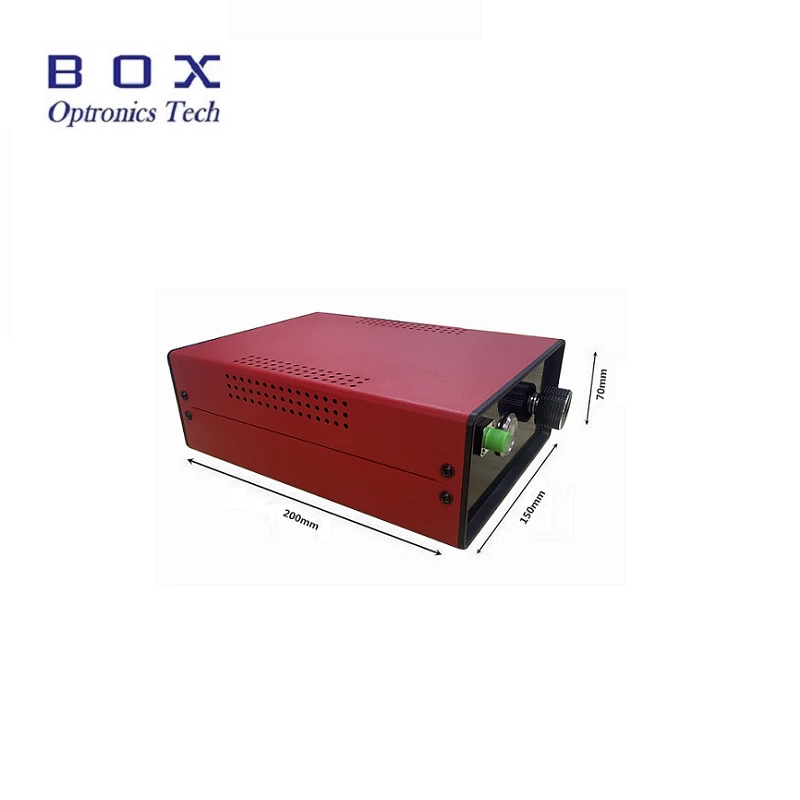

The module is available in both benchtop and compact module forms, with dimensions of 200(L)×150(W)×70(H) mm for benchtop and 130(W)×80(D)×50(H) mm for the module. It operates within a temperature range of -20℃ to +65℃ and can be stored between -40℃ and +85℃.
