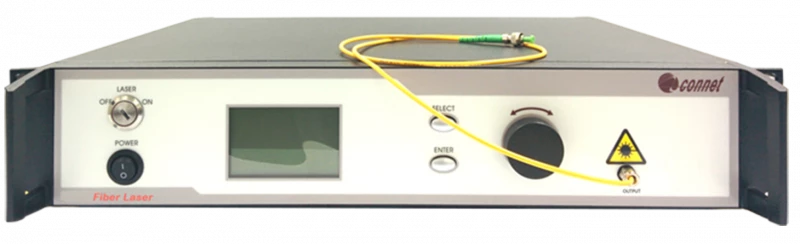

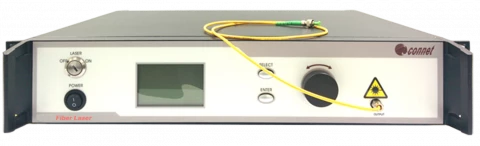

1.5um Single-mode CW Fiber Laser 15-100W
Description
The 1.5um CW fiber laser from Connet is a high-power fiber laser designed for eye-safe applications. It features an integrated all-fiber structure and utilizes double cladding fiber pumping technology to achieve high-performance output. With output power ranging from 15W to 100W and near diffraction-limited beam quality, this laser is suitable for scientific research, experimental teaching, and device testing.
The control system is based on a microprocessor, providing stability, long lifetime, and hassle-free maintenance. The front panel LCD offers real-time display of output power and temperature, along with warning messages. Additionally, the modular package option enables easy system integration.
1.5um Single-mode CW Fiber Laser 15-100W
Specifications |
|
|---|---|
| Center Wavelength: | 1550 nm |
| Output Power: | 100 W |
| Output Mode: | Continuous Wave (CW) |
| Beam Quality (M^2): | 1.5 |
| Spectral Linewidth: | 1 nm |
| Output Power Stability: | 1% ~ 1.25% |
| Output Fiber Type: | Other / Non-specified |
| Output Fiber Length: | > 1 m |
| Interface: | Other / Not-specified |
| Cooling: | Other |
| Electrical Requirements: | 110V - 60Hz, 240V - 50Hz |
| Output Power Adjustable Range: | 10-100 % |
| Side-mode Suppression Ratio (SMSR): | 35 dB |
| Polarization: | Random (Linear Polarization Optional) |
| Output Isolation: | 35 dB |
| Return Loss: | 40 dB |
| Optical Connector: | FC/APC (other options available) |
| Operating Temperature: | 0 to +30 ℃ |
| Storage Temperature: | -40 to +85 °C |
| Dimension: | 510 x 480 x 150 mm |
Features
- High output power: Up to 100W
- Excellent beam quality
- Highly stable and reliable performance
- All-fiber structure
- Single-mode output
Applications
- Telecommunication
- Material processing
- Medical procedures
- Test and measurement
- Scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Yes, the Connet 1.5um CW fiber laser employs a control system based on a microprocessor which has stable property, long lifetime, and free maintenance. The LCD on the front panel can give a real-time display of the operating state of the output power and temperature, and offer warning messages.
The Connet 1.5um CW fiber laser can be used in telecommunication, material processing, medical procedures, test and measurement, and scientific research.
The Connet 1.5um CW fiber laser has an excellent near diffraction-limited beam quality.
The maximum output power of the Connet 1.5um CW fiber laser is 100W.
The center wavelength of the Connet 1.5um CW fiber laser is 1550nm.
