Description
The 1.0um single-mode CW fiber laser by Connet is a highly integrated continuous Yb-doped fiber laser system with a high power output. It utilizes an all-fiber structure and double cladding fiber pumping technology, enabling exceptional performance and power scalability.
With output power ranging from 20W to 100W, this fiber laser delivers near diffraction-limited beam quality. It finds extensive applications in scientific research, experimental teaching, and device testing.

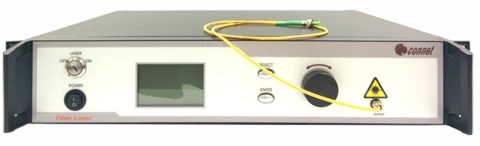

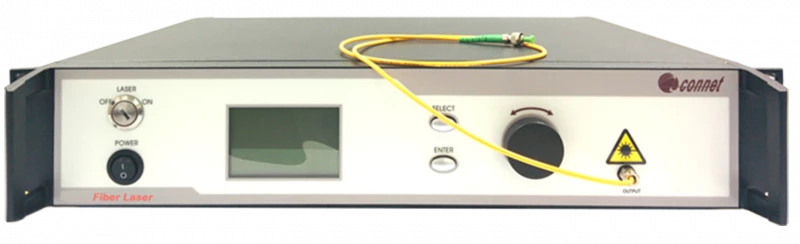

1.0um Single-mode CW Fiber Laser 20-100W
Specifications
| Center Wavelength: | 1064 nm |
|---|---|
| Output Power: | 100 W |
| Output Mode: | Continuous Wave (CW) |
| Beam Quality (M^2): | 1.3 |
| Spectral Linewidth: | 1 nm |
| Output Power Stability: | 0.5% ~ 0.6% |
| Output Fiber Type: | Other / Non-specified |
| Output Fiber Length: | 1 m |
| Interface: | Other / Not-specified |
| Cooling: | Other |
| Electrical Requirements: | 110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz |
| Output Power Adjustable Range: | 10-100 % |
| Side-mode Suppression Ratio (SMSR): | 35 dB |
| Polarization: | Random (Linear Polarization Optional) |
| Output Isolation: | 35 dB |
| Return Loss: | 40 dB |
| Operating Temperature: | 0 to +30 ℃ |
| Storage Temperature: | -40 to +85 °C |
| Optical Connector: | FC/APC or Collimator (other optional) |
| Operating Voltage: | 100-240 V |
| Dimension: | 510x480x150 mm |
Download Data Sheet
Features
- High output power: Up to 100W
- Excellent beam quality
- Highly stable and reliable performance
- Single-mode output (PM optional)
Applications
- Test and measurement
- Scientific research
- Spectroscopy analysis
- Other lab applications
Frequently Asked Questions
Is the fiber laser easy to control and monitor?
Yes, the fiber laser employs a control system based on microprocessor which has stable property, long lifetime and free maintenance. The LCD on the front panel can give a real-time display of the operating state of the output power and temperature, and can also offer warning messages.
Is the polarization maintained in the fiber laser?
No, the polarization is random, but linear polarization is optional.
What are some applications of the fiber laser?
The fiber laser can be widely used in the areas of scientific research, experimental teaching, device testing, and spectroscopy analysis.
What is the beam quality of the fiber laser?
The near diffraction-limited beam quality can be achieved at the same time, with an M2 value of less than 1.3.
What is the output power range of the Connet 1.0um single-mode CW fiber laser?
The output power can be up to 100W, and is also adjustable within a range of 10-100%.
