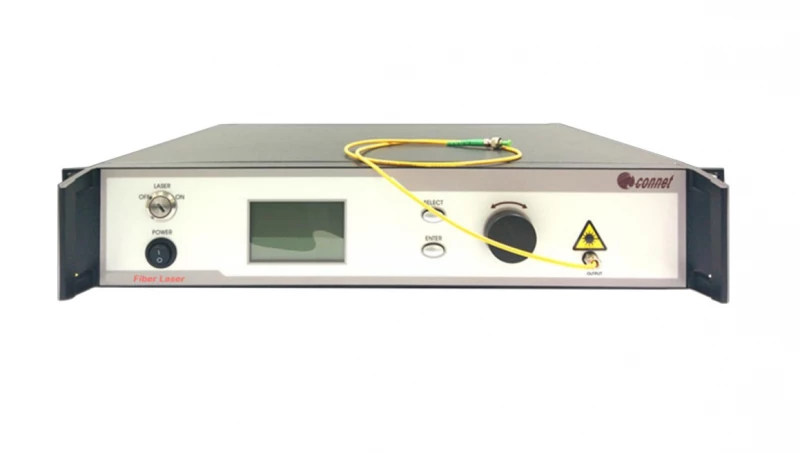

Thumbnail of Connet 1.0um Band MHz Narrow Linewidth Fiber Laser photo 1

Description

Connet's 1.0um Band MHz Narrow Linewidth CW Fiber Laser employs an innovative MOPA (Master Oscillator Power Amplifier) structure design, incorporating MHz-level narrow linewidth seed lasers like DFB and DBR. This design optimization cascades fiber amplifiers to achieve high output power while effectively suppressing fiber nonlinear effects, such as stimulated Brillouin scattering (SBS), ensuring exceptional output performance.

The laser features an integrated benchtop design, with key technical parameters conveniently displayed on the front panel's LCD. Users can adjust the output power with ease, making it ideal for laboratory applications. For system integration convenience, Connet offers OEM modular laser solutions upon request.

Connet 1.0um Band MHz Narrow Linewidth Fiber Laser

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Center Wavelength: 1070 nm
Output Power: 50 W
Output Mode: Continuous Wave (CW)
Beam Quality (M^2): 1.05
Spectral Linewidth: Not Specified
Output Power Stability: 0.5% ~ 0.6%
Output Fiber Type: PMF
Output Fiber Length: 0.5 m
Interface: Other / Not-specified
Cooling: Other
Electrical Requirements: 110V - 60Hz, 240V - 50Hz
Linewidth: 3.0 MHz
Power Supply: Not Specified
Side-mode Suppression Ratio (SMSR): 40 dB
Polarization: Linear
Polarization Extinction Ratio (PER): 200 dB
Wavelength Tunable Range: 0.6 nm
Output Isolation: 35 dB
Output Power Tunable Range: 10-100 %
Operating Temperature: +10 to +50 ℃
Storage Temperature: -40 to +85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MHz linewidth single-frequency output
  • Low relative intensity noise
  • High-frequency stability
  • Linear polarization output with high PER (Polarization Extinction Ratio)
  • Various available wavelengths

Applications

  • Atomic cooling and trapping
  • Coherent and spectral combination
  • Frequency doubling
  • LIDAR or sensing
  • Test and measurement
  • Other scientific research

Frequently Asked Questions

What are the applications of the Connet 1.0um Band MHz Narrow Linewidth Fiber Laser?
The Connet 1.0um Band MHz Narrow Linewidth Fiber Laser can be used for atomic cooling and trapping, coherent and spectral combination, frequency doubling, LIDAR or sensing, test and measurement, and other scientific research.
What are the technical parameters of the Connet 1.0um Band MHz Narrow Linewidth Fiber Laser?
The important technical parameters of the Connet 1.0um Band MHz Narrow Linewidth Fiber Laser are displayed on the LCD on the front panel. The output power is adjustable and easy to operate. The laser has a MHz linewidth single frequency output, low relative intensity noise, high frequency stability, linear polarization output, high PER, and various wavelengths available.
What is the Connet 1.0um Band MHz Narrow Linewidth Fiber Laser?
The Connet 1.0um Band MHz Narrow Linewidth Fiber Laser is a laser instrument that adopts MOPA structure design, built-in with MHz level narrow linewidth seed laser to realize high output power through the optimized design of cascaded fiber amplifiers.
What is the ordering information for the Connet 1.0um Band MHz Narrow Linewidth Fiber Laser?
The ordering information for the Connet 1.0um Band MHz Narrow Linewidth Fiber Laser includes the operating wavelength, output power in watt, and fiber connector type (FC/APC or collimator).
What is the output power range of the Connet 1.0um Band MHz Narrow Linewidth Fiber Laser?
The output power range of the Connet 1.0um Band MHz Narrow Linewidth Fiber Laser is from 0.5 W to 50 W.
