ALS-15 Broadband Light Source

Name: ALS-15 Broadband Light Source
Brand: Amonics Limited
Availability: InStock

Description

The C-Band ASE Broadband Light Source from Amonics is an advanced optical device designed to deliver exceptional performance across a wide range of applications. With its high output power and extensive spectral range, this light source ensures consistent and reliable operation, even in varying temperature conditions. Its compact design and robust construction make it a perfect choice for professionals seeking a dependable and efficient solution for their optical needs.

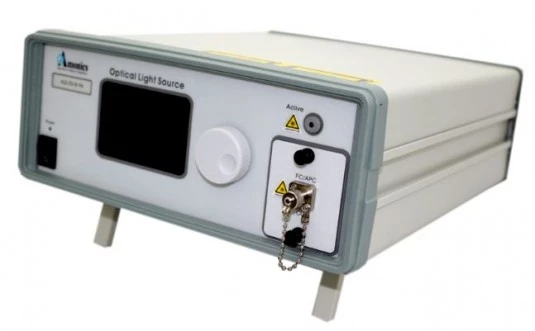

Available in both benchtop and module configurations, the C-Band ASE Broadband Light Source provides flexibility for different operational requirements. The benchtop version features a user-friendly interface, complete with an LCD monitor, key switch, and power control knob, allowing for easy operation and monitoring. Additionally, it supports RS232 or Ethernet computer interfaces, ensuring seamless integration into existing systems.

The OEM module version is specifically designed for system integrators, offering a streamlined solution for fiber optic sensing and optical tomography applications. Requiring only a single +5V power supply, this module is an ideal building block for custom system development. Manufactured under a stringent HKQAA ISO 9001 certified quality management system, the C-Band ASE Broadband Light Source promises high reliability and durability, making it a trusted choice for professionals worldwide.

Amonics is committed to continuous product development, ensuring that their products meet the highest technical standards. This dedication to excellence is evident in the C-Band ASE Broadband Light Source, which combines cutting-edge technology with practical design to deliver unparalleled performance in the field of optics.

Specifications

Bandwidth:	36 nm
Center Wavelength:	1546 nm
Polarization:	Linear
Spectral Range:	1528nm to 1564nm
Output Isolation:	> 40dB
Output Polarization:	< 5%
Operation Temperature:	0 to 40°C
Storage Temperature:	-10 to 70°C
Power Supply (Benchtop):	90 – 240VAC, 47 – 63Hz
Dimensions (Benchtop):	260(W) x 330(D) x 120(H) mm
Dimensions (Module ALS-10):	70(W) x 100(D) x 14(H) mm
Dimensions (Module ALS-15):	100(W) x 120(D) x 18(H) mm
Dimensions (Module ALS-18, ALS-20, ALS-23):	120(W) x 200(D) x 25(H) mm

Download Data Sheet

Features

Wide Spectral Range: Covers a range from 1528nm to 1564nm, suitable for various optical applications.

High Output Power: Offers a minimum output power starting from 10dBm to 22dBm, ensuring robust performance.

Good Spectral Stability: Maintains stability with < ±0.02dB over 8 hours and < ±0.005dB over 5 minutes.

Compact Design: Available in both benchtop and module forms, optimizing space and integration flexibility.

Excellent Performance Cost Ratio: Delivers high performance while maintaining cost-effectiveness.

Highly Reliable and Durable: Built under an ISO 9001 certified quality management system, ensuring long-lasting reliability.

User-Friendly Interface: Benchtop version includes an LCD monitor display, key switch, and power control knob.

Remote Control Capability: Equipped with RS232 or Ethernet interfaces for easy remote management.

OEM Module Option: Ideal for system integration with a simple +5V power supply requirement.

Comprehensive Protection Features: Includes pump laser overheat protection and key-lock switch for safety.

Applications

Fiber Optic Sensing: Provides stable broadband light for high-resolution sensing systems.

Optical Tomography: Enables precise imaging in medical and industrial tomography setups.

DWDM Component Characterization: Suitable for accurate testing and characterization of DWDM optical components.

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Amonics Limited

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the spectral range of the ALS-15 Broadband Light Source?

The ALS-15 Broadband Light Source has a spectral range of 1528nm to 1564nm.

What are the applications of the ALS-15 Broadband Light Source?

The ALS-15 Broadband Light Source is used in fiber optic sensing, optical tomography, and DWDM component characterization.

What is the output power of the ALS-15 Broadband Light Source?

The ALS-15 Broadband Light Source has a minimum output power of 14dBm and a typical output power of 18dBm.

What is the output stability of the ALS-15 Broadband Light Source?

The ALS-15 Broadband Light Source has an output stability of less than + / -0.02dB over 8 hours and less than + / -0.005dB over 5 minutes.

What is the difference between the benchtop and module casings of the ALS-15 Broadband Light Source?

The benchtop version has a user-friendly front panel housing with an LCD monitor display, key switch, power control knob, and optical connectors, while the OEM module version is an ideal building block for OEM system integration and requires a single +5V power supply only.
