Description
Veshay PCB Laser Marking Machines

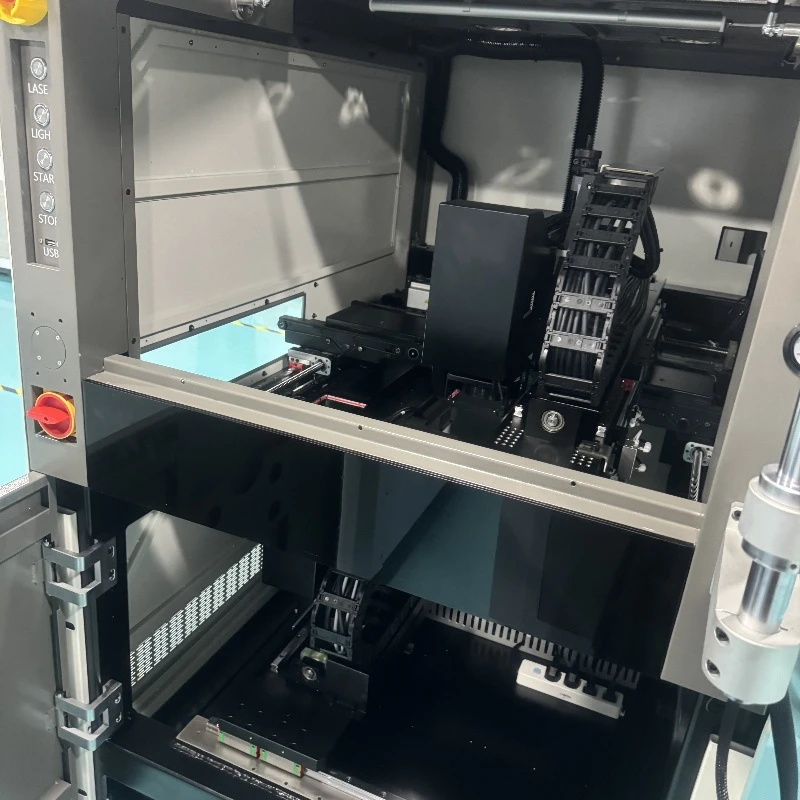

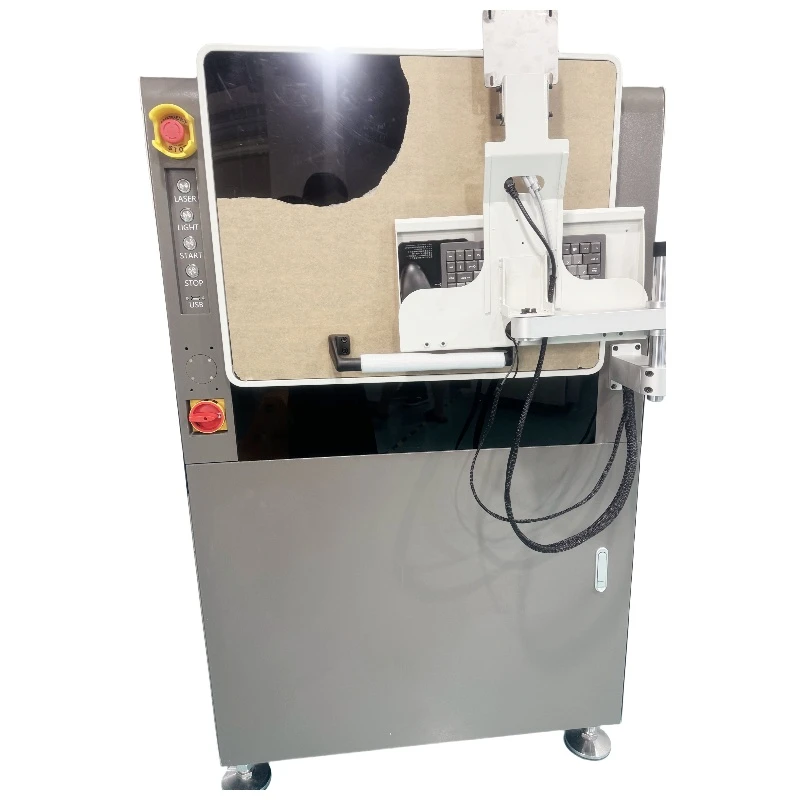

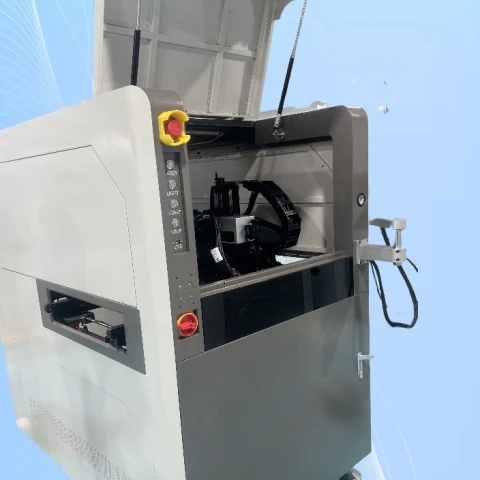

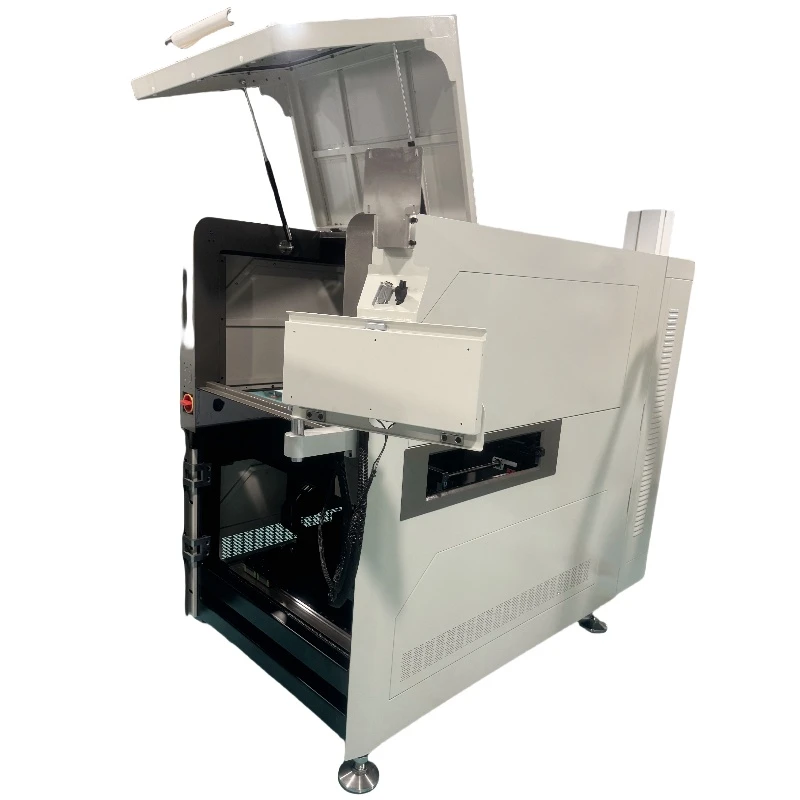

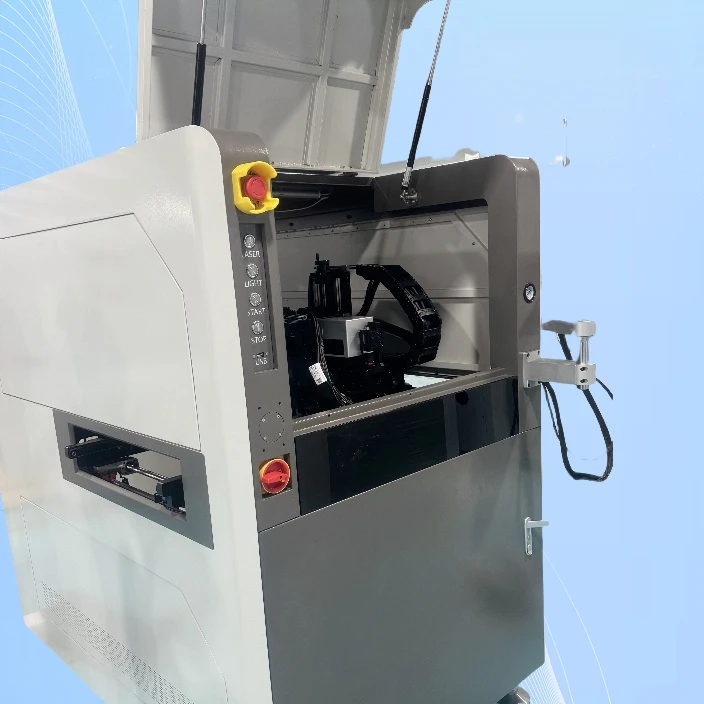

Double-sided Marking with TOP-BOTTOM Laser Heads
Standing out from numerous brands, such as HGLASER LCD LCB Series, R-TEK S6,M6,R6 Series, Hans Laser HDZ-PCB100F,HDZ-FPC4530D,etc., Veshay Full-automatic PCB Laser Marking Machine is mainly used for marking QR code, barcode, characters, different patterns on PCB with various kinds of ink, such as white, green, or black oil, and even on copper surface accurately.
It can acquire the data from MES automatically, such as batch number, date, and generate QR code; by lasering it on PCB so to control the product.
Compared with the traditional spray printing, PCB laser marking machine is more precision, no pollution, easy maintenance and without extra cost, it is applied widely in PCB industry
Veshay VIPin-4651BT PCB Laser Marking Machine Double-Sided Marking with TOP-BOTTOM Laser Heads
Dongguan Veshay Laser Technology Co., Ltd
Specifications
| Work Area X: | 460 mm |
|---|---|
| Work Area Y: | 510 mm |
| Beam Delivery: | Galvo |
| Laser Source: | CO2, Other / Not specified |
| Laser Output Power: | 510 W |
| Laser Wavelength: | 355 nm (UV), 532 nm (green), Other (not specified) |
| Marking Speed: | 0 mm/sec |
| Voltage Requirement: | 220V - 50Hz, Other / Not Specified |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Nickel, Platinum, Glass, Plastic, Acrylic, Ceramic |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Minimum Point Diameter: | 0.13mm |
| Engraving Angle: | 0-360° |
| Repeat Accuracy: | ±0.02mm |
| QR Code Size (minimun): | 1.5mm×1.5mm |
| Marking Content: | QR Code/Micro QR Code/IQR Code/Data Matrix/GS1 Data/Matrix/PDF417CODE39/CODE128/ITF/NW7/JAN(EAN)/UPC/English Uppercase /English lowercase /Figure/Katakana /Chinese Chatacters |
| Circuit Board Size Range: | 50mm×50mm-460mm×510mm |
| Board Thickness Range: | 0.5-7mm |
| Software Function: | It has the functions of laser engraving clear code and cipher code; it has the function of reading two-dimensional code; it has the function of anti-duplication and code complement; it has the function of detecting BadMark; it has the function of custom |
Download Data Sheet
Features
Veshay PCB Laser Marking Machines Features:
- Laser Head: Imported laser with high stability and long life
- Intelligent System: Support MES development.
- High-Precision Positioning System: ±0.02mm repeated positioning
- Purification System (optional): Automated high-performance purification
- Intelligent Camera System: Intelligent CCD visual positioning.
- Control System: Developed based on a high-precision Vision Marking system from Vipin company.
Applications
It is used for marking barcode, QR code, text, number and other information on PCB as well as reinforcing steel sheets and shielding cover products. It can also read and verify codes after completion.
Frequently Asked Questions
What is the PCB Laser Marking Machine with Top-Bottom Laser Heads used for?
The PCB Laser Marking Machine is used for high-level sign marking on PCBs, replacing traditional labeling and coding methods. It offers product traceability and is an important link in production line 4.0.
What are the advantages of laser marking over traditional labeling?
Laser marking offers advantages such as no consumable costs, strong and permanent markings that do not disappear, and the ability to integrate with MES for intelligent traceability.
What types of lasers are used in the PCB Laser Marking Machine?
The machine can use various types of lasers such as CO2, Fiber, UV, and GreenLight lasers, each suitable for different materials and marking needs.
How does the cost of laser marking compare to traditional labeling over 5 years?
The total cost of traditional labeling over 5 years is ¥2,515k, while the cost for 4 sets of laser marking machines is ¥1.1 million, indicating potential cost savings with laser marking.
What is the average marking speed of the PCB Laser Marking Machine?
The average marking speed is 360 components per hour, with each mark taking approximately 6 seconds.
Can the PCB Laser Marking Machine handle different materials?
Yes, the machine can mark on various materials such as green oil, black oil, blue oil, red oil, paper card, white oil, copper, aluminum, ceramic, glass, and reinforcement steel sheets, although some materials may require specific laser types for optimal results.
What is the lifespan of the lasers used in the PCB Laser Marking Machine?
The lasers used in the machine, such as the CO2 10W laser, have a lifespan of at least 50,000 hours.
