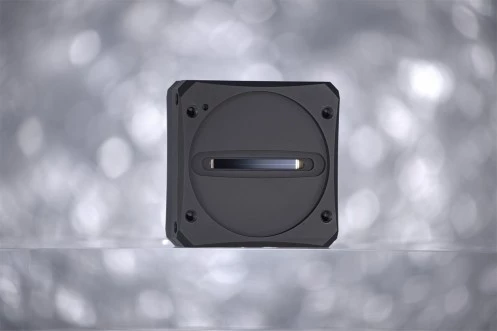

NECTA Line Scan Camera N4K2-7
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Italy
-
Sold by:
-
On FindLight:
since 2018
Description
NECTA Line Scan CMOS USB3 cameras provide unrivaled scan speed and quick system integration. Ultra-fast acquisition rate, extremely reduced dimensions and rugged design make NECTA cameras suitable for the most demanding applications requiring automated visual inspection, industrial metrology, high performance sorting, spectrometry, and machine-vision. NECTA line scan camera is powered directly by the USB3 bus eliminating the need for external power adapters. USB 3.0 provides the most cost effective and widespread interface, pushing speed performances at the top. It provides powerful on-line user-controlled image processing: AOI, independent LUTs, FPN (DSNU & PRNU), gamma correction, white balance, saturation, hue and black level offset calibration. Its multipurpose I/O connector provides user I/O, line/frame triggering and direct encoder interface.
NECTA Line Scan Camera N4K2-7
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 4096 |
| # Pixels (Height): | 2 |
| Pixel Size (Square): | 7 um |
| Peak Quantum Efficiency: | 75 % |
| Full Frame Rate: | Not Specified |
| Bit Depth: | 12 bit |
Features
USB3 interface
Tiny rugged design
Ultra-low power
Ultra-low power
Triple programmable LUTs
Smart Data
Versatile I/O
Frequently Asked Questions
The NECTA Line Scan Camera N4K2-7 is a line scan CMOS USB3 camera that provides fast scan speed and quick system integration for automated visual inspection, industrial metrology, high performance sorting, spectrometry, and machine-vision applications.
The NECTA Line Scan Camera N4K2-7 is powered directly by the USB3 bus, eliminating the need for external power adapters.
The NECTA Line Scan Camera N4K2-7 provides powerful on-line user-controlled image processing, including AOI, independent LUTs, FPN (DSNU & PRNU), gamma correction, white balance, saturation, hue and black level offset calibration.
The NECTA Line Scan Camera N4K2-7 has a multipurpose I/O connector that provides user I/O, line/frame triggering, and direct encoder interface.
Accessories available for the NECTA Line Scan Camera N4K2-7 include a F-mount adapter, C-mount adapter (N2K and N4K-3 models only), and shielded I/O cable. Custom camera designs are also available upon request.
