Description

A transformative addition to your imaging toolkit. Offers compact design with high spatiotemporal resolution and PCIe interface for efficient data transfer with lowest latency.

The xiB cameras stream images to the host computer via 4 lanes on a PCI Express Gen2 bus, boasting an impressive 20 Gbit/s of bandwidth.
Together with minimal latencies and CPU load, the PCIe technology is ideal for high resolution CMOS sensors or sCMOS sensors with dual-ADC outputs.

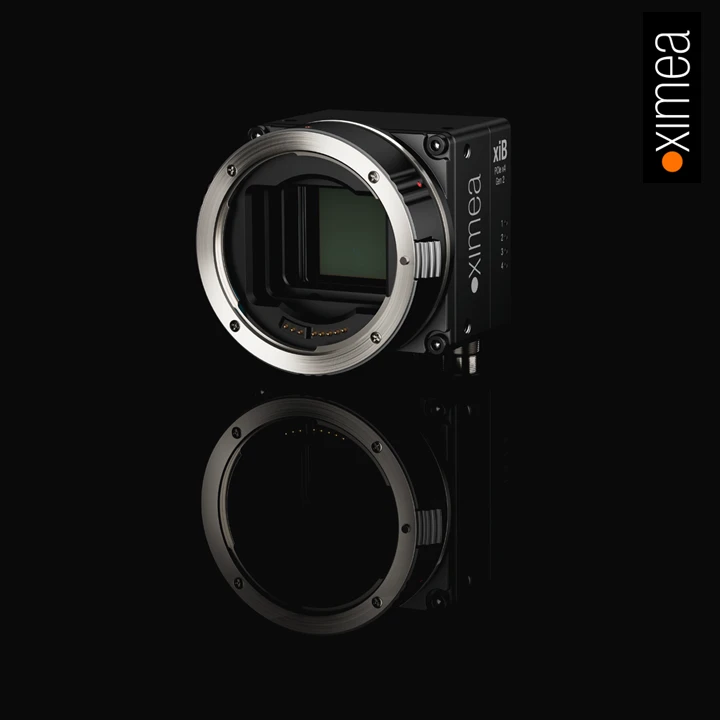

The active EF lens mount adapter enables the combination with a wide array of superb optics, with direct control over the aperture and focus.
The use of optical fiber cables allows up to 100 m distances between cameras and host computer without performance penalty.

xiB – Large sensor format cameras.

Specifications

Sensor Type: CMOS, sCMOS
# Pixels (Width): 4096
# Pixels (Height): 3072
Pixel Size (Square): 4.6 um
Peak Quantum Efficiency: Not Specified
Full Frame Rate: 30 fps
Bit Depth: 8 bit

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Fast bandwidth of 20 Gbit/s, real data throughput up to 1550 MB/s
  • High resolution from 12 Mpix to 50 Mpix and 30 to 133 FPS
  • Versatile mini camera - Subtle 60 x 60 x 36 mm, 160 grams
  • Long reach - Can work with optical cable at 300 m distances
  • Power efficient - Low power consumption of mere 6 watts

Applications

  • Flat panel display (FPD) inspection
  • Printed circuit board (PCB) examination
  • 360 Panorama
  • VR and AR - Virtual and Augmented reality
  • Autonomous Vehicles
  • Cinematography and Entertainment, Instant replays
  • Sports imaging and broadcast
  • Aerial or city mapping (UAV/UAS/drones)
  • Security
  • Medical & Scientific
  • Machine Vision

Frequently Asked Questions

Can the xiB cameras be synchronized with multiple GPIOs?
Yes, the xiB cameras can be fully synchronized with their multiple GPIOs.
Do the xiB cameras require a frame grabber?
No, the xiB cameras do not require a frame grabber and have DMA transfer with no CPU load.
What are the dimensions of the xiB cameras?
The xiB cameras are compactly housed in 60 x 60 x 36 mm, 160 grams.
What is the bandwidth of the xiB cameras?
The xiB cameras boast an impressive 20 Gbit/s of bandwidth.
What kind of applications are the xiB cameras suitable for?
The xiB cameras are suitable for a wide range of applications, including flat panel display inspection, PCB examination, 360 panorama, VR and AR, autonomous vehicles, cinematography and entertainment, sports imaging and broadcast, and aerial or city mapping.

Got more questions? Use the inquiry form to ask the supplier directly.
