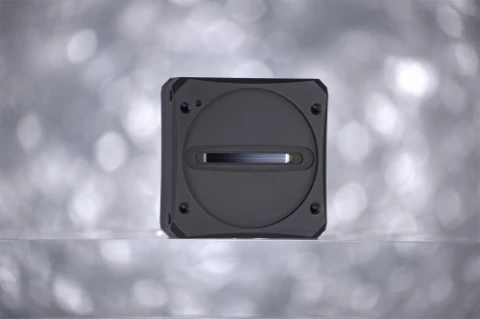

NECTA Line Scan Camera N4K-3
Description
NECTA Line Scan CMOS USB3 cameras provide unrivaled scan speed and quick system integration. Ultra-fast acquisition rate, extremely reduced dimensions and rugged design make NECTA cameras suitable for the most demanding applications requiring automated visual inspection, industrial metrology, high performance sorting, spectrometry, and machine-vision. NECTA line scan camera is powered directly by the USB3 bus eliminating the need for external power adapters. USB 3.0 provides the most cost effective and widespread interface, pushing speed performances at the top. It provides powerful on-line user-controlled image processing: AOI, independent LUTs, FPN (DSNU & PRNU), gamma correction, white balance, saturation, hue and black level offset calibration. Its multipurpose I/O connector provides user I/O, line/frame triggering and direct encoder interface.
NECTA Line Scan Camera N4K-3
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 4096 |
| # Pixels (Height): | -- |
| Pixel Size (Square): | 3.5 um |
| Peak Quantum Efficiency: | 75 % |
| Full Frame Rate: | -- fps |
| Bit Depth: | 12 bit |
Features
USB3 interface
Tiny rugged design
Ultra-low power
Ultra-low power
Triple programmable LUTs
Smart Data
Versatile I/O
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Italy
-
Sold by:
-
On FindLight:
since 2018
Frequently Asked Questions
The NECTA Line Scan Camera N4K-3 is a line scan CMOS USB3 camera that provides fast scan speed and quick system integration for demanding applications requiring automated visual inspection, industrial metrology, high performance sorting, spectrometry, and machine-vision.
The NECTA camera is powered directly by the USB3 bus, eliminating the need for external power adapters.
The NECTA camera provides powerful on-line user-controlled image processing, including AOI, independent LUTs, FPN (DSNU & PRNU), gamma correction, white balance, saturation, hue and black level offset calibration.
The NECTA camera has a multipurpose I/O connector that provides user I/O, line/frame triggering, and direct encoder interface.
The NECTA camera uses AMS Dragster CMOS sensors, color and monochrome, featuring 12 bit A/D converter, up to 8192 pixels, up to 95000 lines/s.
