Page 3 - Fiber Isolators & Circulators

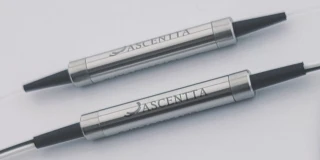

Ascentta Polarization Insensitive Fiber Isolator (532nm)
Ascentta
Add to watch list
Ascentta Polarization Insensitive Fiber Isolator (532nm)
Compare
This is an Optical (TGG Type) Isolator: Single-Mode. It is designed for wavelengths 532, 635, 650, 780, 850, 980, 1030, 1060 nm. Ascentta, Inc. offers a comprehensive selection of optical isolators designed to optimize performance in various applications. Their isolators include single-mode, multimode, and polarization maintaining ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 532 nm
Max Power: 0.05 W
Min Isolation: 23 dB
Insertion Loss (All SOP) Max.: 2.3 dB
...
Data Sheet
Ascentta Polarization Maintaining Fiber Isolator (780nm)
Ascentta
Add to watch list
Ascentta Polarization Maintaining Fiber Isolator (780nm)
Compare
This is an Optical (TGG Type) Isolator: Polarization-Maintaining (PM). It is designed for wavelengths 532, 635, 650, 780, 850, 980, 1030, 1064 nm. Ascentta, Inc. offers a diverse range of optical isolators, including single-mode, multimode, and polarization maintaining (PM) isolators. Their product line includes inline and free ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 780 nm
Max Power: 0.150 W
Min Isolation: 28 dB
Insertion Loss (All SOP) Max.: 1.5 dB
...
Data Sheet
Ascentta Polarization Insensitive Fiber Circulator (850nm)
Ascentta
Add to watch list
Ascentta Polarization Insensitive Fiber Circulator (850nm)
Compare
Ascentta, Inc. offers a range of compact and high-performance fiber optic circulators designed to transmit signals from one port to another simultaneously. These three-port circulators are widely used in DWDM systems with fiber gratings and other reflective components. Ascentta also manufactures multiport circulator modules.

Specifications
Type Of The Device: Circulator
Operating Wavelength: 850 nm
Max Power: 0.150 W
Min Isolation: 21 dB
Insertion Loss (All SOP) Max.: 1.8 dB
...
Data Sheet
Ascentta Polarization Maintaining Fiber Circulator (405nm)
Ascentta
Add to watch list
Ascentta Polarization Maintaining Fiber Circulator (405nm)
Compare
Ascentta, Inc. offers a compact and high-performance three-port fiber optic circulator designed specifically for polarization-maintaining (PM) applications. This optical device efficiently transmits signals from port 1 to port 2 and from port 2 to port 3 simultaneously. It is ideal for use in DWDM systems with fiber gratings and ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 405 nm
Max Power: 0.03 W
Min Isolation: 20 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3): 2.0 dB
...
Data Sheet
Ascentta Polarization Maintaining Fiber Circulator (635nm)
Ascentta
Add to watch list
Ascentta Polarization Maintaining Fiber Circulator (635nm)
Compare
Ascentta, Inc. offers a widely used three-port fiber optic circulator that is compact and provides high performance. This optical device simultaneously transmits signals from port 1 to port 2 and from port 2 to port 3. It is specifically designed for use in DWDM systems with fiber gratings and other reflective components. Ascentta ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 635 nm
Max Power: 0.1 W
Min Isolation: 20 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3) Max.: 2.0 dB
...
Data Sheet
Ascentta Polarization Maintaining Fiber Circulator (850nm)
Ascentta
Add to watch list
Ascentta Polarization Maintaining Fiber Circulator (850nm)
Compare
Ascentta, Inc. offers a compact and high-performance three-port fiber optic circulator. This optical device simultaneously transmits signals from port 1 to port 2 and from port 2 to port 3. It is designed for use in DWDM systems with fiber gratings and other reflective components. Ascentta also manufactures multiport circulator ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 850 nm
Max Power: 0.150 W
Min Isolation: 21 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3) Max.: 1.8 dB
...
Data Sheet
Ascentta Polarization Insensitive Fiber Circulator (650nm)
Ascentta
Add to watch list
Ascentta Polarization Insensitive Fiber Circulator (650nm)
Compare
Ascentta, Inc. offers a range of high-performance fiber optic circulators designed for efficient signal transmission. Their three-port circulators transmit signals from port 1 to port 2 and from port 2 to port 3 simultaneously. These compact devices are widely used in DWDM systems with fiber gratings and other reflective components. ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 650 nm
Max Power: 0.1 W
Min Isolation: 23 dB
Insertion Loss (All SOP) Max.: 2.3 dB
...
Data Sheet
Ascentta Polarization Maintaining Fiber Circulator (1030nm)
Ascentta
Add to watch list
Ascentta Polarization Maintaining Fiber Circulator (1030nm)
Compare
The compact and high-performance three-port fiber optic circulator from Ascentta, Inc. is a versatile optical device that enables simultaneous signal transmission from port 1 to port 2 and from port 2 to port 3. Designed for use in DWDM systems with fiber gratings and other reflective components, this circulator delivers exceptional ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 1030 nm
Max Power: 0.250 W
Min Isolation: 22 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3) Max.: 1.5 dB
...
Data Sheet
Ascentta Polarization Maintaining Fiber Circulator (980nm)
Ascentta
Add to watch list
Ascentta Polarization Maintaining Fiber Circulator (980nm)
Compare
The high-performance polarization-maintaining fiber optic circulator from Ascentta, Inc. is a reliable and compact optical device designed to transmit signals simultaneously from port 1 to port 2 and from port 2 to port 3. With its superior performance and polarization-maintaining capabilities, this circulator is ideal for use in ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 980 nm
Max Power: 0.250 W
Min Isolation: 22 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3) Max.: 1.5 dB
...
Data Sheet
Ascentta High-Isolation Broadband Polarization Insensitive Isolator (1450-1650nm)
Ascentta
Add to watch list
Ascentta High-Isolation Broadband Polarization Insensitive Isolator (1450-1650nm)
Compare
Ascentta, Inc. offers a wide range of optical isolators, including single-mode, multimode, and polarization-maintaining (PM) isolators. Our isolators are available in both inline and free space configurations, providing exceptional performance in various applications. With options for different wavelengths and customization, our ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1450-1650 nm
Max Power: 0.100 W
Min Isolation: 62 dB
Insertion Loss (23℃, 1450-1650nm All SOP): 1.1 dB
...
Data Sheet
Ascentta Polarization Maintaining Fiber Circulator (1310nm | 1480nm | 1550nm | 1590nm)
Ascentta
Add to watch list
Ascentta Polarization Maintaining Fiber Circulator (1310nm | 1480nm | 1550nm | 1590nm)
Compare
The Optical Circulator by Ascentta, Inc. is a high-performance optical device designed for transmitting signals between multiple ports simultaneously. It is widely used in various applications, including DWDM systems with fiber gratings and reflective components. This compact and reliable device is available in different ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 1310-1590 nm
Max Power: 0.3 W
Min Isolation: 40 dB
Bandwidth: +-20 nm
...
Data Sheet
Ascentta Polarization Insensitive C+L Band Fiber Isolator
Ascentta
Add to watch list
Ascentta Polarization Insensitive C+L Band Fiber Isolator
Compare
The Optical Isolator by Ascentta, Inc. offers a comprehensive range of isolators designed for various applications. We provide single-mode, multimode, and polarization-maintaining (PM) isolators in both inline and free space configurations. Our isolators operate in a wide range of wavelengths, including 780nm, 850nm, 980nm, 1060nm, ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1530-1610 nm
Max Power: 0.3 W
Min Isolation: 28-40 dB
Insertion Loss (All SOP): 0.4-0.6 dB
...
Data Sheet
Ascentta Polarization Maintaining Fiber Isolator (1310nm, 1480nm, 1550nm, 1590nm)
Ascentta
Add to watch list
Ascentta Polarization Maintaining Fiber Isolator (1310nm, 1480nm, 1550nm, 1590nm)
Compare
The Optical Isolator by Ascentta, Inc. offers a wide range of isolators designed to meet various application requirements. Our isolators are available in single mode, multimode, and polarization-maintaining (PM) configurations. We provide both inline and free space optical isolators (Faraday isolators) that operate at different ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 1310-1590 nm
Max Power: 0.3 W
Min Isolation: 30-45 dB
Insertion Loss: 0.4-0.5 dB
...
Data Sheet

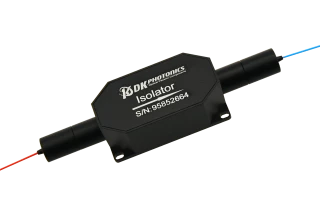

1064nm High Power In-line Optical Isolator
DK Photonics
Add to watch list
1064nm High Power In-line Optical Isolator
Compare
The 1064nm High Power In-line Optical Isolator is made of TGG crystal, known for its excellent performance. This isolator offers low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability, and reliability. It allows light to be transmitted in one direction only, preventing any ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 50 W
Min Isolation: 30 dB
Operating Wavelength Range: ±10 nm
...
Data Sheet

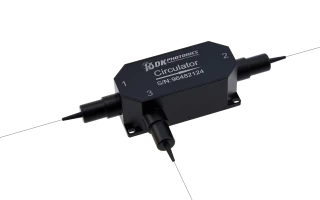

1064nm TGG Based Optical Circulator
DK Photonics
Add to watch list
1064nm TGG Based Optical Circulator
Compare
The 1064nm TGG Based Optical Circulator is a high-performance light-wave component designed to route incoming signals from Port 1 to Port 2 and incoming Port 2 signals to Port 3. It features low insertion loss, high isolation, high power handling, high return loss, low polarization-dependent loss (PDL), excellent environmental ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 1064 nm
Max Power: 20 W
Min Isolation: 25 dB
Operating Wavelength Range: ±10 nm
...
Data Sheet
1550nm Polarization Maintaining Isolator
DK Photonics
Add to watch list
1550nm Polarization Maintaining Isolator
Compare
The 1550nm Polarization Maintaining Isolator is a two-port micro-optic device built with PM panda fiber. It offers low insertion loss, high isolation, high extinction ratio, and excellent stability and reliability. This device guides optical light in one direction, eliminating back reflection and back scattering in the reverse ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1550 nm
Max Power: 20 W
Min Isolation: 48 dB
Operating Wavelength Range: ±20 nm
...
Data Sheet
980nm TGG Based Optical Circulator
DK Photonics
Add to watch list
980nm TGG Based Optical Circulator
Compare
The TGG Based 980nm Optical Circulator is a high-performance light-wave component designed to efficiently route incoming signals from Port 1 to Port 2 and incoming Port 2 signals to Port 3. This optical circulator features low insertion loss, high isolation, high power handling, high return loss, low polarization-dependent loss ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 980 nm
Max Power: 0.5 W
Min Isolation: 20 dB
Operating Wavelength Range: ±10 nm
...
Data Sheet
850nm TGG Based Optical Circulator
DK Photonics
Add to watch list
850nm TGG Based Optical Circulator
Compare
The 850nm TGG Based Optical Circulator is a high-performance light-wave component that efficiently routes incoming signals from Port 1 to Port 2 and incoming Port 2 signals to Port 3. This optical circulator features low insertion loss, high isolation, high power handling, high return loss, low polarization-dependent loss (PDL), ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 850 nm
Max Power: 0.5 W
Min Isolation: 15 dB
Operating Wavelength Range: ±10 nm
...
Data Sheet
635nm TGG Based Optical Isolator
DK Photonics
Add to watch list
635nm TGG Based Optical Isolator
Compare
The TGG Based 635nm Optical Isolator is a high-quality device designed to suppress back reflection and back scattering in lasers, transmitters, and other fiber optic communication equipment. With its low insertion loss, high isolation, and excellent environmental stability, this optical isolator ensures reliable and efficient signal ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 635 nm
Max Power: 0.1 W
Min Isolation: 25 dB
Operating Wavelength Range: ±5 nm
...
Data Sheet
680nm TGG Based Optical Isolator
DK Photonics
Add to watch list
680nm TGG Based Optical Isolator
Compare
The 680nm TGG Based Optical Isolator is a high-performance device designed to suppress back reflection and back scattering in lasers, transmitters, and other fiber optic communication equipment. With its low insertion loss, high isolation, and excellent environmental stability, this optical isolator ensures reliable and efficient ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 680 nm
Max Power: 0.1 W
Min Isolation: 25 dB
Operating Wavelength Range: ±5 nm
...
Data Sheet
780~1100nm TGG Based Dual Stage Optical Isolator
DK Photonics
Add to watch list
780~1100nm TGG Based Dual Stage Optical Isolator
Compare
The 780~1100nm TGG Based Dual-Stage Optical Isolator is a high-performance device designed to suppress back reflection and back scattering in lasers, transmitters, and other fiber optic communication equipment. With its low insertion loss, high isolation, and excellent environmental stability, this dual-stage isolator ensures ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 780~1100nm nm
Max Power: 10 W
Min Isolation: 40 dB
Operating Wavelength Range: ±10 nm
...
Data Sheet
780nm TGG Based Optical Isolator
DK Photonics
Add to watch list
780nm TGG Based Optical Isolator
Compare
The 780nm TGG Based Optical Isolator is a reliable and high-performance device designed to suppress back reflection and back scattering in lasers, transmitters, and other fiber optic communication equipment. With its low insertion loss, high isolation, and excellent environmental stability, this isolator ensures optimal performance ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 780 nm
Max Power: 5 W
Min Isolation: 25 dB
Typ. Peak Isolation: 30 dB
...
Data Sheet
808nm TGG Based Optical Isolator
DK Photonics
Add to watch list
808nm TGG Based Optical Isolator
Compare
The 808nm TGG Based Optical Isolator is a highly efficient and reliable device designed to suppress back reflection and back scattering in lasers, transmitters, and other fiber optic communication equipment. With its low insertion loss, high isolation, and excellent environmental stability, this isolator ensures optimal performance ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 808 nm
Max Power: 10 W
Min Isolation: 25 dB
Typ. Peak Isolation: 30 dB
...
Data Sheet
1064nm High Power Free Space 3mm Faraday Optical Isolator CSRAYZER_HIO-3-1064-HP-77X60X41-XA
CSRayzer Optical Technology
Add to watch list
1064nm High Power Free Space 3mm Faraday Optical Isolator CSRAYZER_HIO-3-1064-HP-77X60X41-XA
Compare
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 100 W
Min Isolation: 35 dB
Transmission@λc: ≥93 %
...
Data Sheet
1064nm High Power Free Space 3mm Faraday Optical Isolator CSRAYZER_HIO-3-1064-HP-113X54X54-SD
CSRayzer Optical Technology
Add to watch list
1064nm High Power Free Space 3mm Faraday Optical Isolator CSRAYZER_HIO-3-1064-HP-113X54X54-SD
Compare
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 100 W
Min Isolation: 30 dB
Size: 113X54X54 mm
...
Data Sheet
